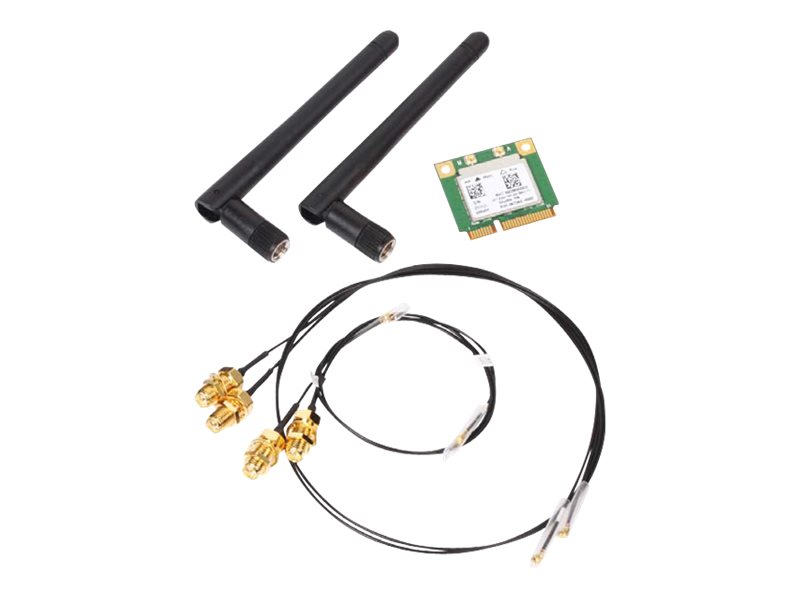

Network adapter - PCIe Half Mini Card - Bluetooth 4.0, Wi-Fi 5
| Main Specifications | |
|---|---|
| Product Description | Shuttle WLN-P WLAN kit - network adapter - PCIe Half Mini Card |
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express Half Mini Card |
| Data Link Protocol | Bluetooth 4.0, Wi-Fi 5 |
| Frequency Band | 2.4 GHz, 5 GHz |
| Processor | 1 x Realtek Semiconductor RTL8821AE |
| Compliant Standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.0, IEEE 802.11ac |
| System Requirements | Linux, Microsoft Windows 7 (32/64 bits), Windows 8.1 (32/64 bits), Windows 10 (32/64 bits) |
| General | |
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express Half Mini Card |
| Miscellaneous | |
| Cables Included | 1 x antenna cable (internal) - 8.3 in ¦ 1 x antenna cable (internal) - 1 ft ¦ 2 x antenna cable (internal) - 1.7 ft |
| Encryption Algorithm | AES, WPA, WPA2 |
| Compliant Standards | AES |
| Networking | |
| Connectivity Technology | Wireless |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.0, IEEE 802.11ac |
| Frequency Band | 2.4 GHz, 5 GHz |
| Features | WPA2 encryption, WPA encryption |
| Compliant Standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.0, IEEE 802.11ac |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
| OS Required | Linux, Microsoft Windows 7 (32/64 bits), Windows 8.1 (32/64 bits), Windows 10 (32/64 bits) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Processor / Memory | |
| Processor | 1 x Realtek Semiconductor RTL8821AE |
| Antenna | |
| Antenna | External detachable |
| Antenna Qty | 2 |
