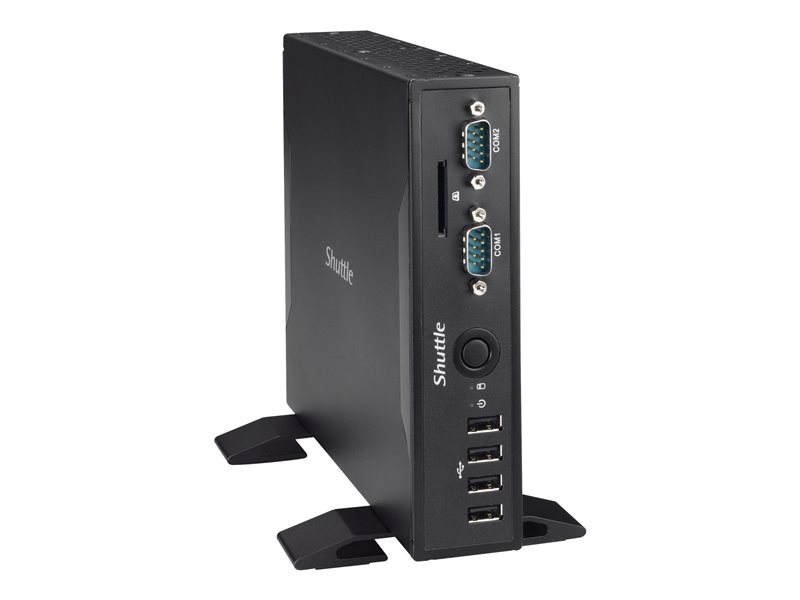

Slim-PC Celeron 3205U ULV - RAM 2 GB - SSD 32 GB - HD Graphics - Gigabit Ethernet - Windows 10 Home - monitor: none - black
| Main Specifications | |
|---|---|
| Product Description | Shuttle XPC slim DS57UW10 - Slim-PC Celeron 3205U 1.5 GHz - 2 GB - SSD 32 GB |
| Type | Personal computer - Slim-PC |
| Processor | Intel Celeron 3205U / 1.5 GHz ULV (Dual-Core) |
| Cache Memory | 2 MB L3 cache |
| Cache Per Processor | 2 MB |
| RAM | 2 GB (installed) / 16 GB (max) - DDR3L SDRAM |
| Storage Controller | SATA (SATA 6Gb/s) |
| Hard Drive | SSD 32 GB - SATA - mSATA |
| Optical Storage | No optical drive |
| Card Reader | Yes |
| Graphics Controller | Intel HD Graphics |
| Audio Output | Stereo |
| Networking | 1GbE, 802.11a, 802.11b/g/n, Bluetooth 4.0, Wi-Fi 5 |
| Power | AC 120/230 V (50/60 Hz) |
| OS Provided | Windows 10 Home |
| Color | Black |
| Dimensions (WxDxH) | 7.9 in x 6.5 in x 1.6 in |
| Weight | 3.15 lbs |
| Manufacturer Warranty | Limited warranty - 3 years |
| General | |
| Type | Personal computer |
| Product Form Factor | Slim-PC |
| Color | Black |
| Expansion / Connectivity | |

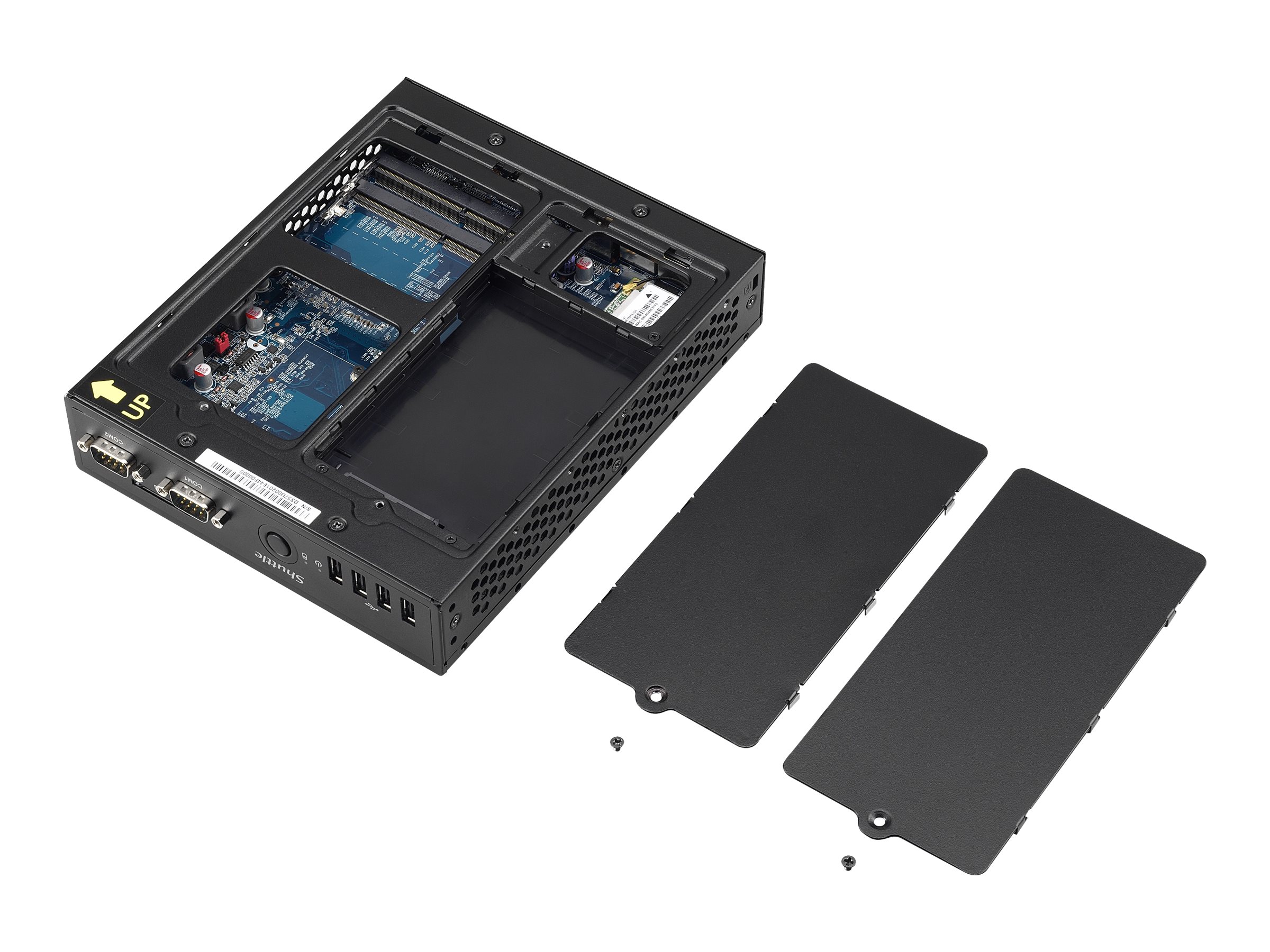

| Bays | 1 (total) / 1 (free) x internal 2.5" |

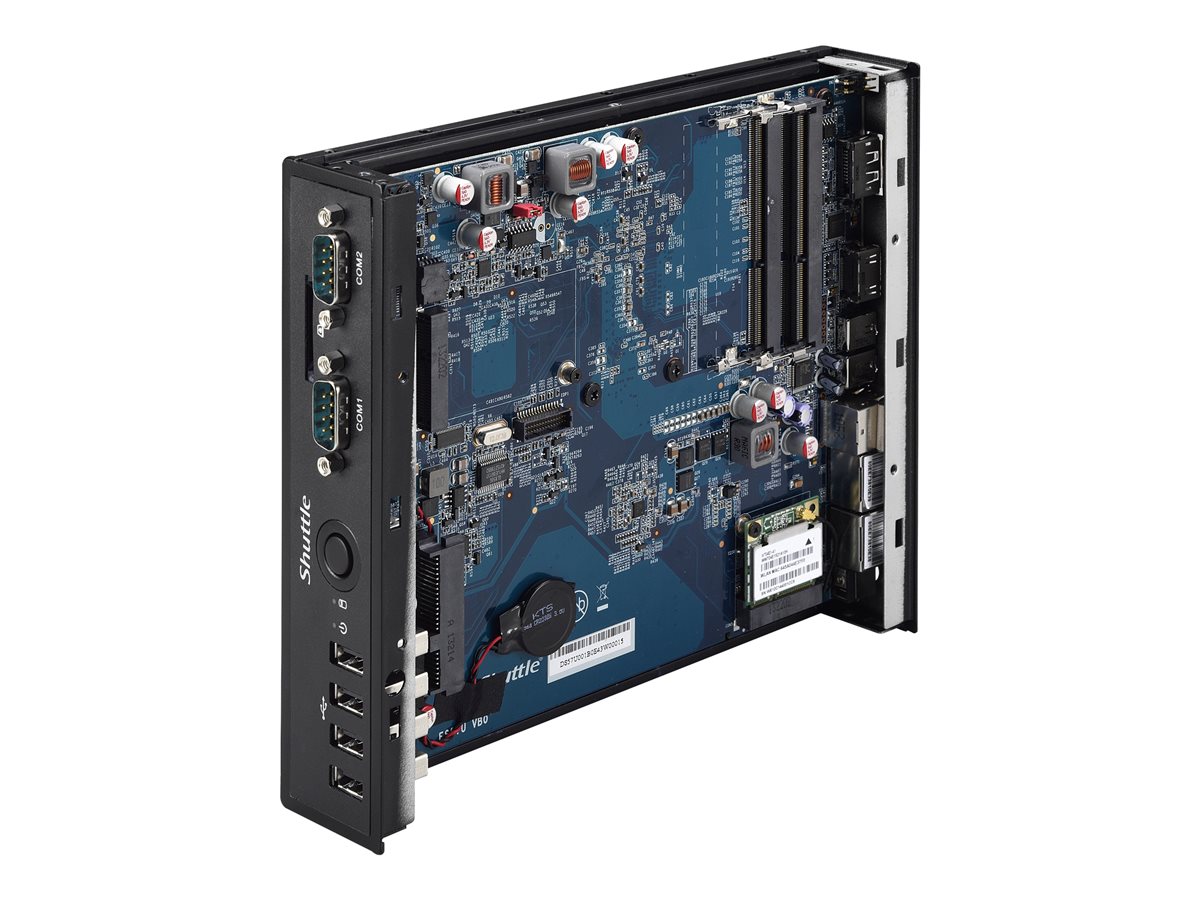

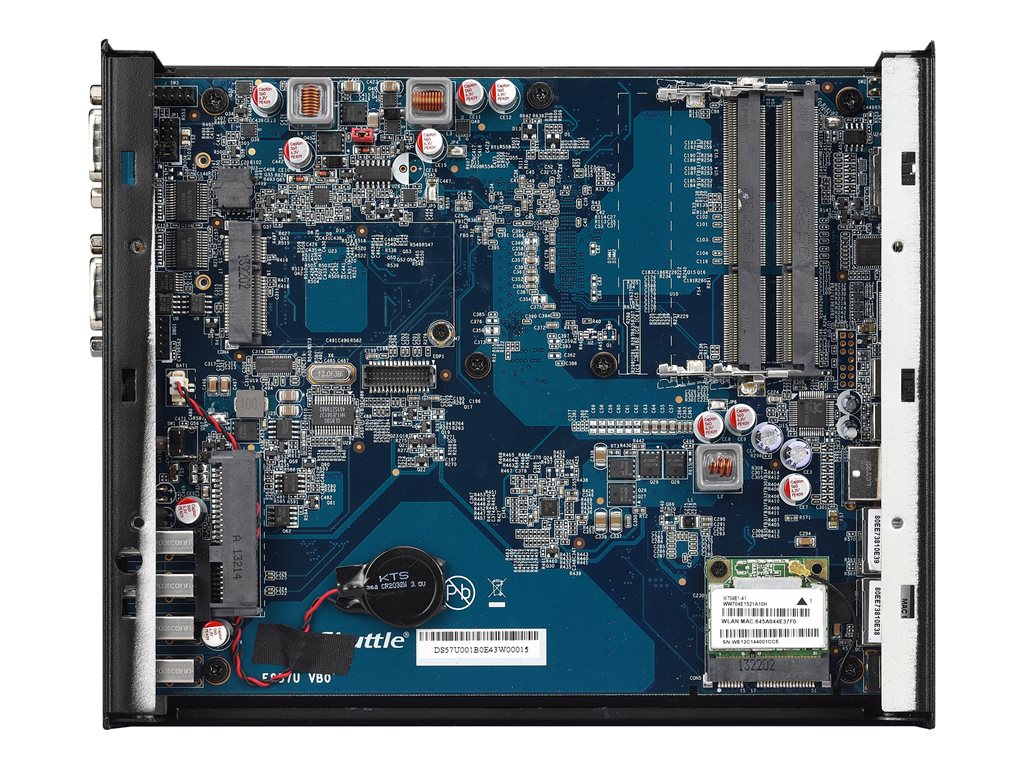

| Slots | 2 SO-DIMM 204-pin ¦ 1 (total) / 0 (free) x PCIe Half Mini Card ¦ 1 (total) / 0 (free) x Mini PCIe |

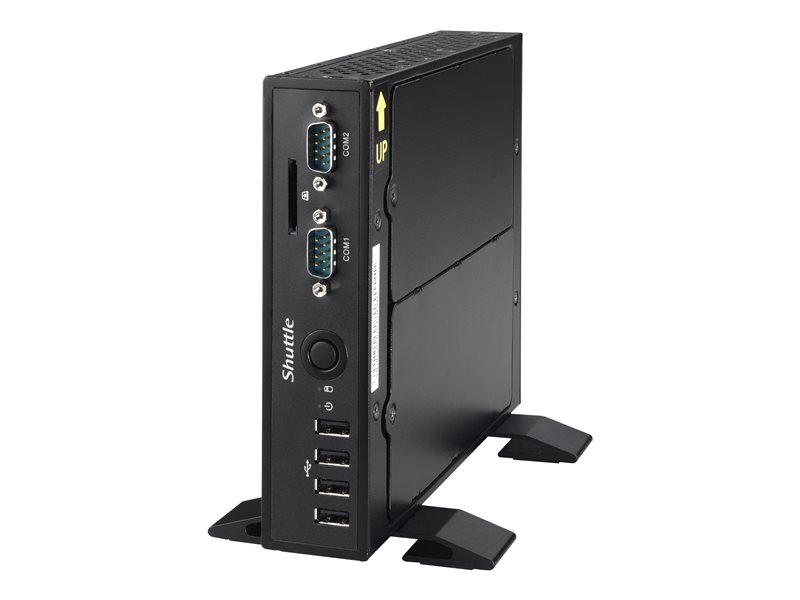

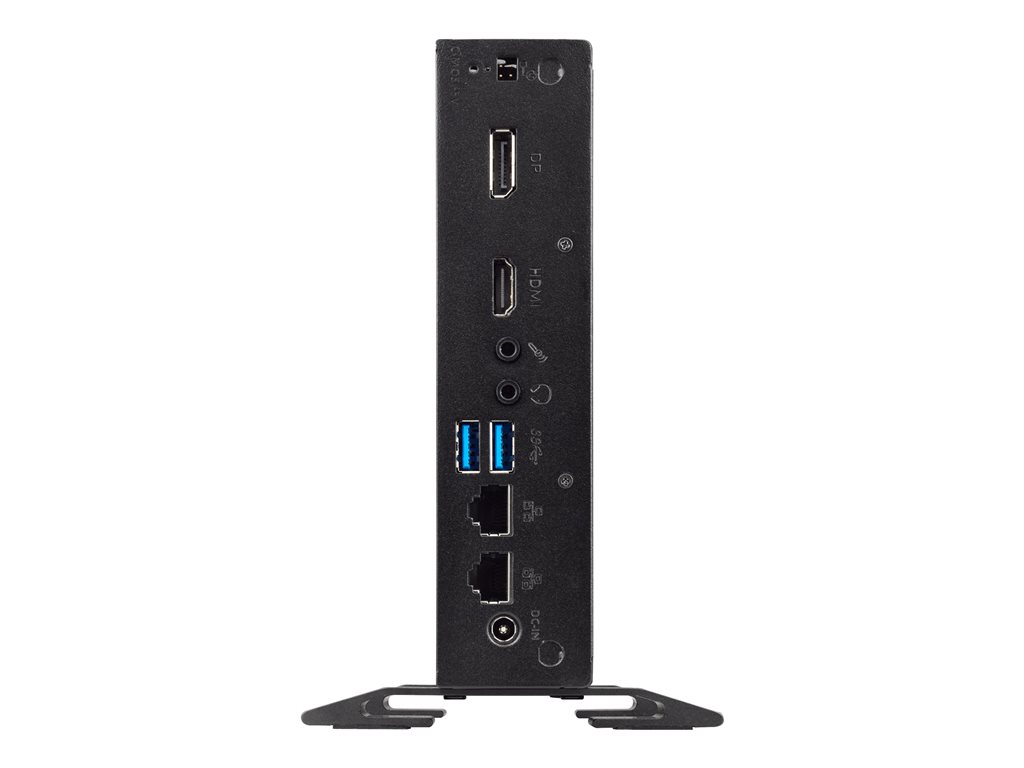

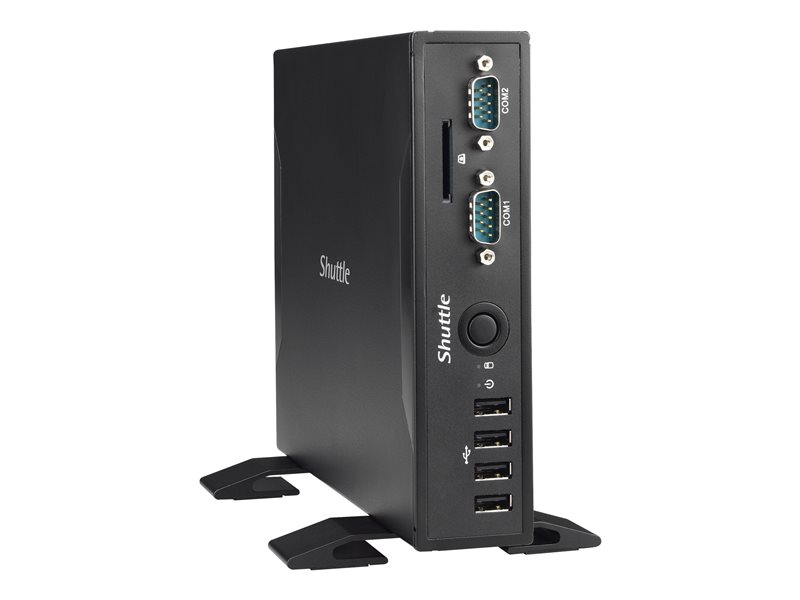

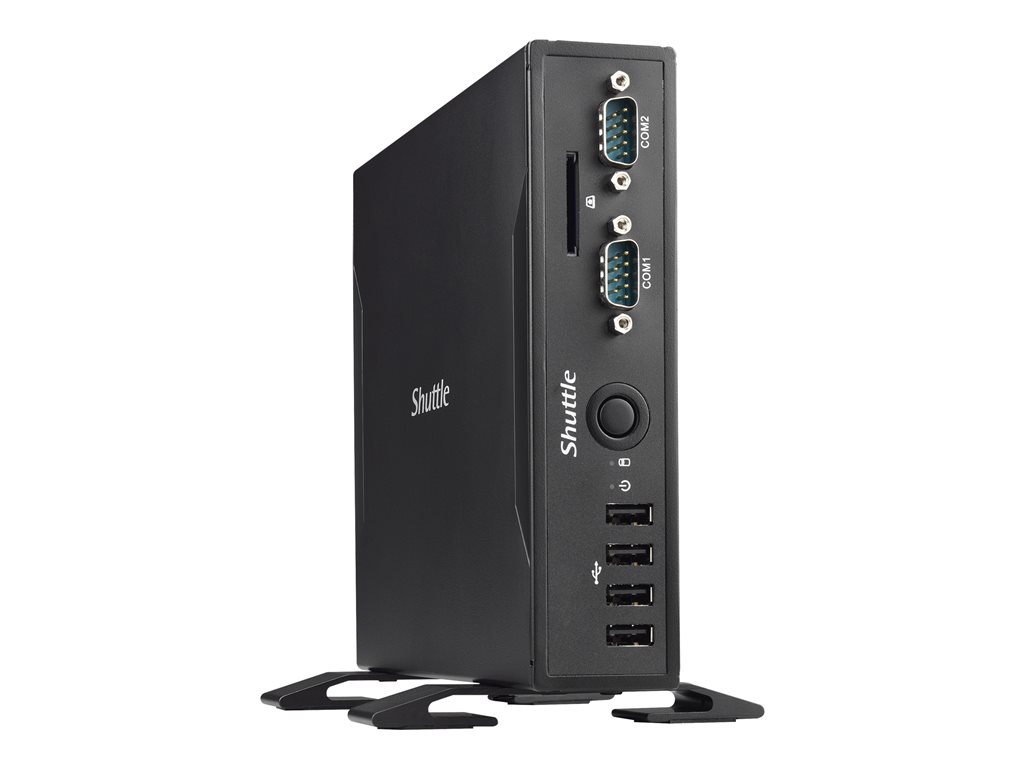

| Interfaces | 1 x microphone - mini-jack ¦ 1 x audio line-out/headphones - mini-jack ¦ 1 x DisplayPort ¦ 1 x HDMI ¦ 2 x LAN (Gigabit Ethernet) ¦ 4 x USB 2.0 (4 in front) ¦ 2 x serial (2 in front) ¦ 2 x USB 3.0 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |

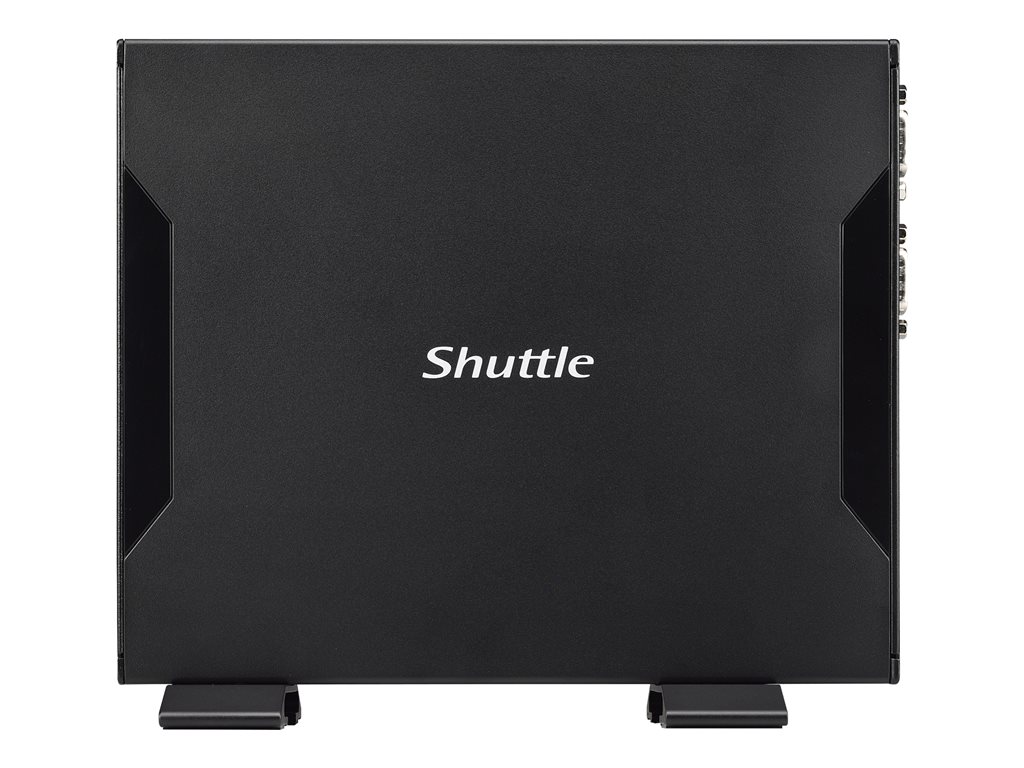

| Included Accessories | Vertical stand |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| VESA Mounting Interface | 100 x 100 mm, 75 x 75 mm |
| Compliant Standards | C-Tick, BSMI, CB, FCC, ETL, EMI, Directive 73/23/EWG, Directive 89/336/EWG |
| RAM | |
| Installed Size | 2 GB (installed) / 16 GB (max) |
| Technology | DDR3L SDRAM |
| Form Factor | SO-DIMM 204-pin |
| Slots | 2 (total) |
| Features | Unbuffered, dual channel memory architecture |
| Networking | |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Ethernet Controller | Intel I218-LM, I211 |
| Wireless LAN Supported | Yes |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.0, IEEE 802.11ac |
| Features | Wake on LAN (WoL), PXE support |
| Power | |
| Device Type | Power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 65 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Storage Controller | |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 1 |
| Cache Memory | |
| Installed Size | L3 cache - 2 MB |
| Cache Per Processor | 2 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel HD Graphics |
| Max Allocated RAM Size | 1632 MB |
| Video Interfaces | HDMI, DisplayPort |
| Max Monitors Supported | 2 |
| Audio Output | |
| Sound Output Mode | Stereo |
| Compliant Standards | High Definition Audio |
| Operating System / Software | |
| OS Provided | Windows 10 Home |
| Hard Drive | |
| Type | SSD - mSATA |
| Capacity | 1 x 32 GB |
| Interface Type | SATA |
| Dimensions & Weight | |
| Width | 7.9 in |
| Depth | 6.5 in |
| Height | 1.6 in |
| Weight | 3.15 lbs |
| Card Reader | |
| Type | Card reader |
| Supported Flash Memory Cards | SD Memory Card, SDHC Memory Card, SDXC Memory Card |
| Processor / Chipset | |
| CPU | Intel Celeron 3205U |
| Clock Speed | 1.5 GHz |
| Number of Cores | Dual-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Power Efficiency | Ultra Low Voltage (ULV) |
