NAS server - 5 bays - SATA 6Gb/s - HDD - RAM 4 GB - Gigabit Ethernet - iSCSI support
| Main Specifications | |
|---|---|

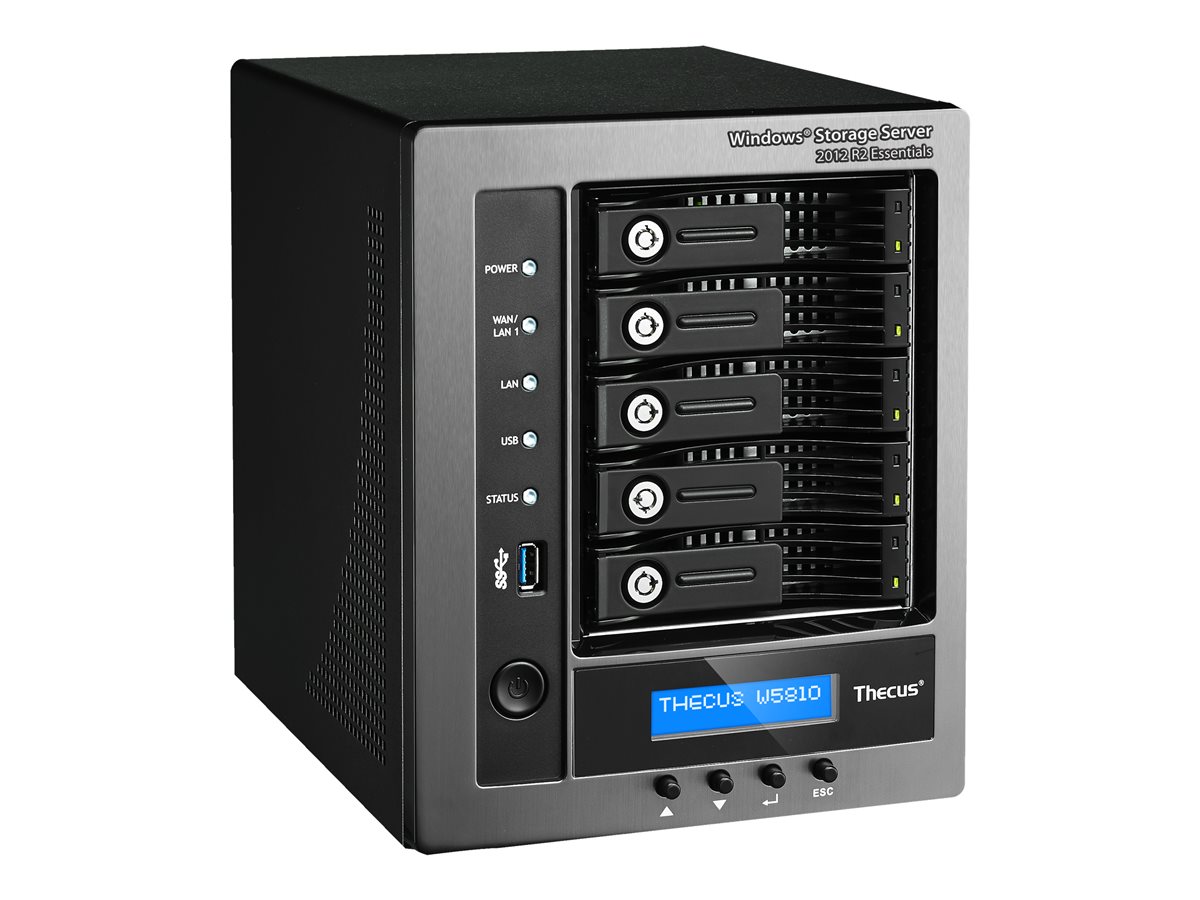

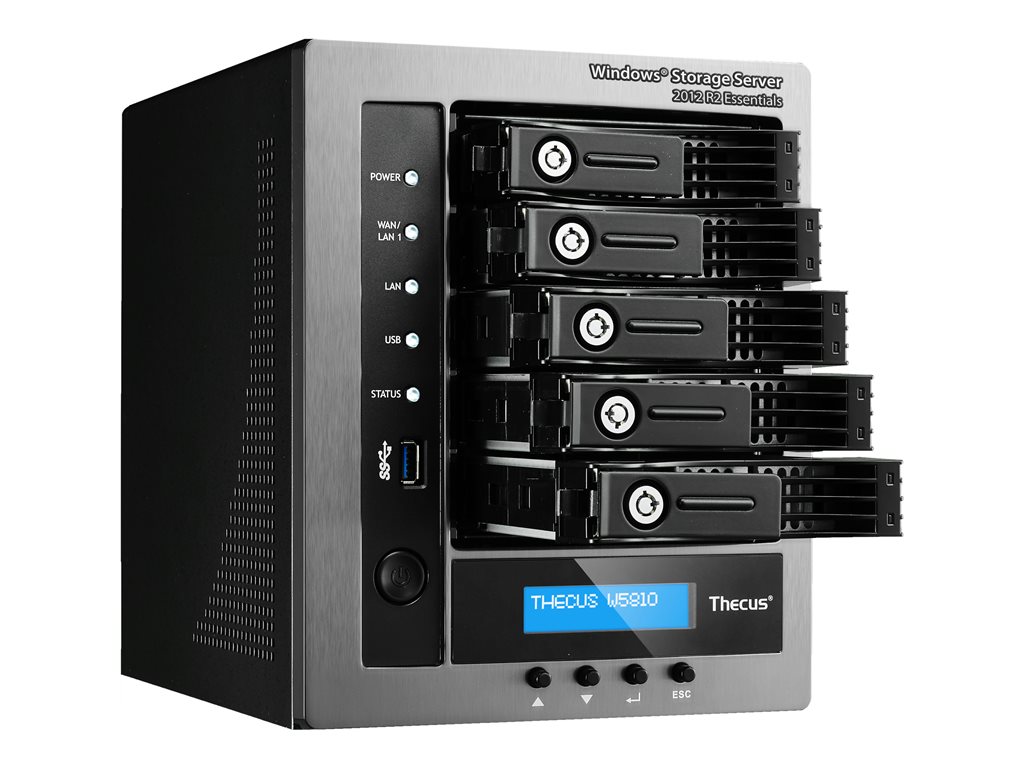

| Product Description | Thecus Technology W5810 - NAS server |
| Device Type | NAS server |
| Host Connectivity | Gigabit Ethernet |
| Installed Devices / Modules Qty | 0 (installed) / 5 (max) |
| Dimensions (WxDxH) | 7.5 in x 9.4 in x 9.1 in |
| Weight | 11.02 lbs () |
| Processor | 1 x Intel Celeron J1900 (Quad-Core) |
| Storage Controller | SATA 6Gb/s |
| Networking | 10Mb LAN, 100Mb LAN, 1GbE |
| RAM | 4 GB |
| Storage Operating System | Microsoft Windows Storage Server 2012 R2 Essentials |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | NAS server |
| Host Connectivity | Gigabit Ethernet |
| Total Storage Capacity | 0 GB |
| Installed Devices / Modules Qty | 0 (installed) / 5 (max) |
| Width | 7.5 in |
| Depth | 9.4 in |
| Height | 9.1 in |
| Weight | 11.02 lbs () |
| Built-in Devices | Status LCD, 60 GB SSD |
| Expansion / Connectivity | |
| Expansion Bays | 5 (total) / 5 (free) x hot-swap - 2.5" / 3.5" |
| Interfaces | 2 x Ethernet 1000Base-T - RJ-45 ¦ 2 x USB 2.0 - Type A ¦ 3 x USB 3.0 - Type A ¦ 1 x HDMI output ¦ 1 x audio out - mini-jack |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Features | Thermal monitoring, audible alarm, built-in cooling fan, automatic fan speed control |
| Networking | |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Network / Transport Protocol | iSCSI, FTP, DNS, SMB |
| Remote Management Protocol | HTTP, HTTPS |
| Network Services Compatibility | Microsoft Active Directory (AD), WINS, Network File System (NFS), FTP, FTPS, Server Message Block (SMB), HTTPS |
| Features | DHCP support, WOL, auto-uplink (auto MDI/MDI-X), print server, IPv6 support, server health monitoring, cloud backup |
| Power | |
| Power Device | Internal power supply |
| Power Provided | 200 watt |
| Software / System Requirements | |
| Storage Operating System | Microsoft Windows Storage Server 2012 R2 Essentials |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Storage Controller | |
| Interface Type | SATA 6Gb/s |
| Hard Drive | |
| Type | HDD - hot-swap |
| Processor / Memory | |
| Processors Installed | 1 x Intel Celeron J1900 |
| Number of Cores | Quad-Core |
| Max Supported Qty | 1 |
| RAM | 4 GB DDR3 |
