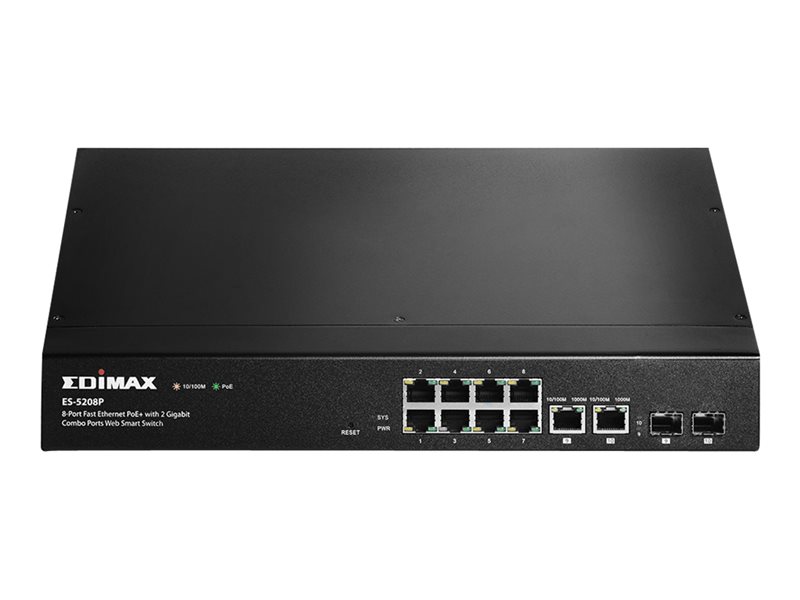

Switch - smart - 8 x 10/100 (PoE+) + 2 x combo Gigabit SFP - rack-mountable - PoE+ (130 W)
| Main Specifications | |
|---|---|
| Product Description | Edimax ES-5208P - switch - 8 ports - smart - rack-mountable |
| Device Type | Switch - 8 ports - smart |
| Enclosure Type | Rack-mountable |
| Subtype | Fast Ethernet |
| Ports | 8 x 10/100 (PoE+) + 2 x combo Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 130 W |
| Performance | Switching capacity: 2.8 Gbps |
| MAC Address Table Size | 4K entries |
| Jumbo Frame Support | 1536 bytes |
| Remote Management Protocol | HTTP |
| Features | Store and forward, reset button, flow control, 352KB packet buffer, full duplex capability, IGMP snooping, packet filtering, port mirroring, Broadcast Storm Control, QoS, bandwidth control, auto-negotiation |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1Q, IEEE 802.1D, IEEE 802.1p, IEEE 802.1w |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 13 in x 9.1 in x 1.7 in |
| Weight | 5.07 lbs |
| General | |
| Device Type | Switch - 8 ports - smart |
| Enclosure Type | Rack-mountable |
| Subtype | Fast Ethernet |
| Ports | 8 x 10/100 (PoE+) + 2 x combo Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 130 W |
| Performance | Switching capacity: 2.8 Gbps |
| MAC Address Table Size | 4K entries |
| Jumbo Frame Support | 1536 bytes |
| Remote Management Protocol | HTTP |
| Features | Store and forward, reset button, flow control, 352KB packet buffer, full duplex capability, IGMP snooping, packet filtering, port mirroring, Broadcast Storm Control, QoS, bandwidth control, auto-negotiation |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1Q, IEEE 802.1D, IEEE 802.1p, IEEE 802.1w |
| Status Indicators | Link/activity, PoE, power, system |
| Expansion / Connectivity | |
| Interfaces | 24 x 100Base-TX RJ-45 PoE+ - 30 W ¦ 2 x 1000Base-T RJ-45 ¦ 2 x SFP |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| Compliant Standards | FCC |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 390 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 10 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 13 in |
| Depth | 9.1 in |
| Height | 1.7 in |
| Weight | 5.07 lbs |
