Server - tower 1-way - no CPU - RAM 0 GB - no HDD - DVD-Writer - AST1400 - Gigabit Ethernet - no OS - monitor: none
| Main Specifications | |
|---|---|

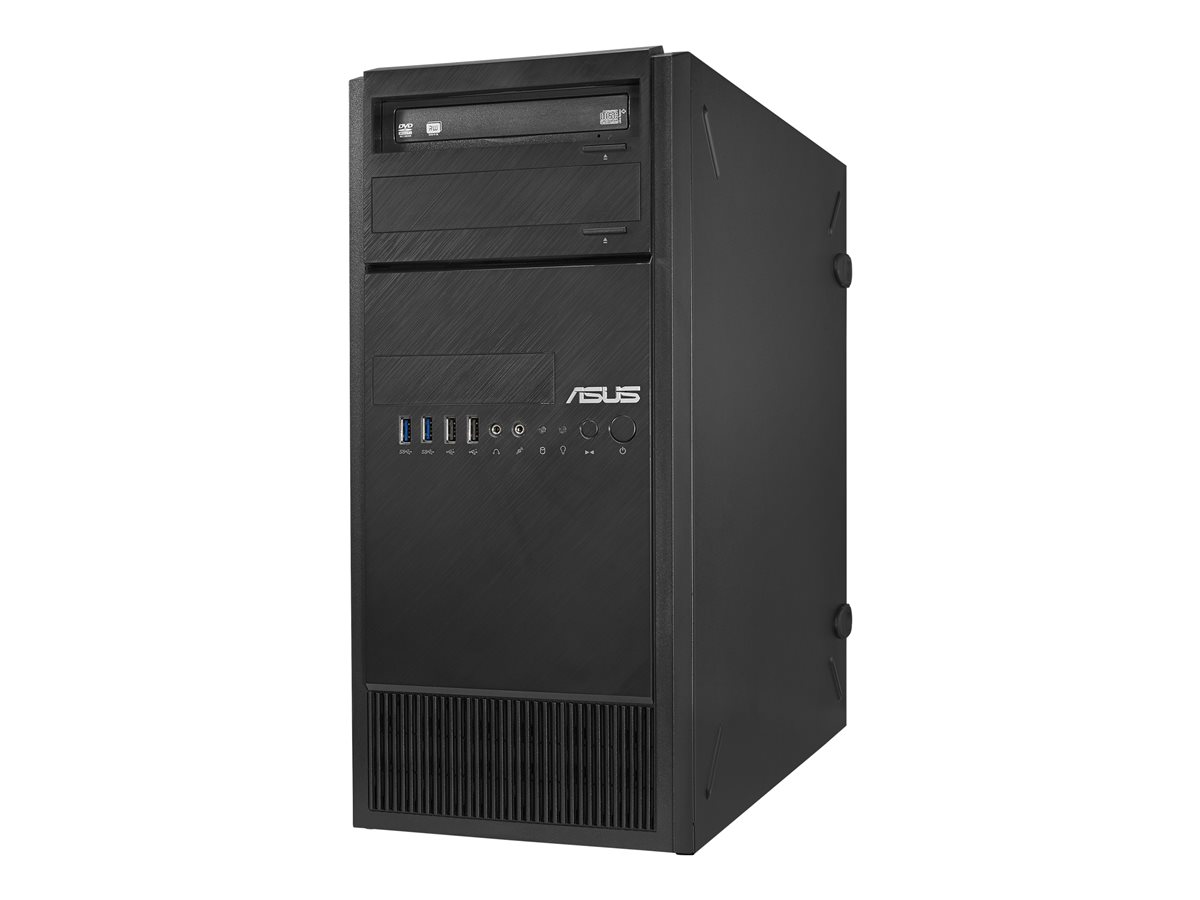

| Product Description | ASUS TS100-E9-PI4 - tower no CPU - 0 GB - no HDD |
| Type | Server - tower |
| Server Scalability | 1-way |
| Processor | No CPU |
| Processor Socket | LGA1151 Socket |
| RAM | 0 GB (installed) / 64 GB (max) - DDR4 SDRAM - ECC |
| Storage Controller | RAID (SATA 6Gb/s) |
| Hard Drive | No HDD |
| Optical Storage | DVD-Writer |
| Graphics Controller | ASPEED AST1400 |
| Video Memory | 64 MB |
| Networking | 1GbE |
| Power | AC 120/230 V (50 - 60 Hz) |
| OS Provided | No operating system |
| Dimensions (WxDxH) | 7.5 in x 17.1 in x 16.7 in |
| Weight | 22.75 lbs |
| General | |
| Type | Server |
| Product Form Factor | Tower |
| Server Scalability | 1-way |
| Internal Bays Qty | 4 |
| Front Accessible Bays Qty | 2 |
| Expansion / Connectivity | |
| Bays | 3 (total) / 3 (free) x internal 3.5" ¦ 1 (total) / 1 (free) x internal 2.5" ¦ 2 (total) / 1 (free) x external 5.25" |
| Slots | 1 (total) / 1 (free) x CPU ¦ 4 (total) / 4 (free) x DIMM 288-pin ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 (x4 mode) ¦ 4 (total) / 4 (free) x PCI ¦ 1 (total) / 1 (free) x MIO |
| Interfaces | 1 x serial ¦ 2 x LAN (Gigabit Ethernet) ¦ 4 x USB 2.0 (2 front, 2 rear) ¦ 1 x VGA ¦ 1 x PS/2 keyboard / mouse ¦ 4 x USB 3.0 (2 front, 2 rear) |
| Miscellaneous | |
| Included Accessories | CPU Heatsink |
| Cables Included | Serial ATA cable (2 pcs.) |
| Compliant Standards | FCC Class B certified, C-Tick, BSMI |
| RAM | |
| Installed Size | 0 GB (installed) / 64 GB (max) |
| Technology | DDR4 SDRAM - ECC |
| Form Factor | DIMM 288-pin |
| Slots | 4 (total) / 4 (empty) |
| Features | Unbuffered, dual channel memory architecture |
| Networking | |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Ethernet Controller | 2 x Intel I210-AT |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Power | |
| Device Type | Power supply |
| Installed Qty | 1 |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Power Provided | 300 watt |
| 80 PLUS Certification | 80 PLUS Bronze |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Storage Controller | |
| Type | 1 x RAID |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 6 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10 |
| Optical Storage | |
| Type | DVD-Writer |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | ASPEED AST1400 |
| Video Memory | 64 MB |
| Video Interfaces | VGA |
| Operating System / Software | |
| OS Provided | No operating system |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 7.5 in |
| Depth | 17.1 in |
| Height | 16.7 in |
| Weight | 22.75 lbs |
| Processor / Chipset | |
| CPU | No CPU |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| CPU Socket | LGA1151 Socket |
| Chipset Type | Intel C232 |
