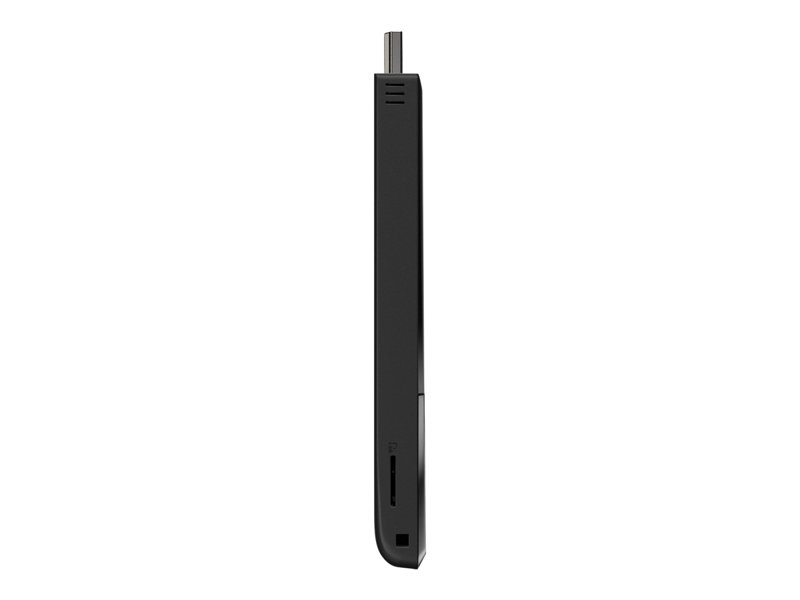

Stick Atom x5 Z8300 / up to 1.84 GHz - RAM 2 GB - flash - eMMC 32 GB - HD Graphics - Windows 10 - monitor: none
| Main Specifications | |
|---|---|
| Product Description | Intel Compute Stick STK1AW32SC - stick Atom x5 Z8300 1.44 GHz - 2 GB - flash 32 GB |
| Type | Personal computer - stick |
| Processor | Intel Atom x5 Z8300 / 1.44 GHz (up to 1.84 GHz, (Quad-Core) |
| Processor Main Features | Intel Virtualization Technology, Intel AES New Instructions |
| Cache Memory | 2 MB L3 cache |
| Cache Per Processor | 2 MB |
| RAM | 2 GB (installed) / 2 GB (max) - DDR3L SDRAM |
| Hard Drive | Flash 32 GB - eMMC |
| Optical Storage | No optical drive |
| Card Reader | Yes |
| Graphics Controller | Intel HD Graphics |
| Networking | 802.11a, 802.11b/g/n, Wi-Fi 5, Bluetooth 4.2 |
| OS Provided | Windows 10 |
| Dimensions (WxDxH) | 0.5 in x 1.5 in x 4.8 in |
| Weight | 2.12 oz |
| Manufacturer Warranty | Limited warranty - 1 year |
| General | |
| Type | Personal computer |
| Product Form Factor | Stick |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI ¦ 1 x USB 2.0 ¦ 1 x USB 3.0 ¦ 1 x PoweredUSB 2.0 - micro-USB |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Cables Included | HDMI extension cable |
| Theft/Intrusion Protection | Padlock loop |
| Compliant Standards | ACPI |
| RAM | |
| Installed Size | 2 GB (installed) / 2 GB (max) |
| Technology | DDR3L SDRAM |
| Effective Memory Speed | 1600 MHz |
| Configuration Features | Provided memory is soldered |
| Networking | |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel Dual Band Wireless-AC 7265 |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 4.2 |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 4.2 |
| Power | |
| Device Type | Power adapter |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 95 °F |
| Cache Memory | |
| Installed Size | L3 cache - 2 MB |
| Cache Per Processor | 2 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel HD Graphics |
| Video Interfaces | HDMI |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Operating System / Software | |
| OS Provided | Windows 10 |
| Hard Drive | |
| Type | Flash - eMMC |
| Capacity | 1 x 32 GB |
| Dimensions & Weight | |
| Width | 0.5 in |
| Depth | 1.5 in |
| Height | 4.8 in |
| Weight | 2.12 oz |
| Card Reader | |
| Type | Card reader |
| Supported Flash Memory Cards | microSD, microSDXC UHS-I Memory Card |
| Processor / Chipset | |
| CPU | Intel Atom x5 Z8300 |
| Clock Speed | 1.44 GHz |
| Max Turbo Speed | 1.84 GHz |
| Number of Cores | Quad-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| CPU Upgradability | Not upgradable |
| Processor Main Features | Intel Virtualization Technology, Intel AES New Instructions |
