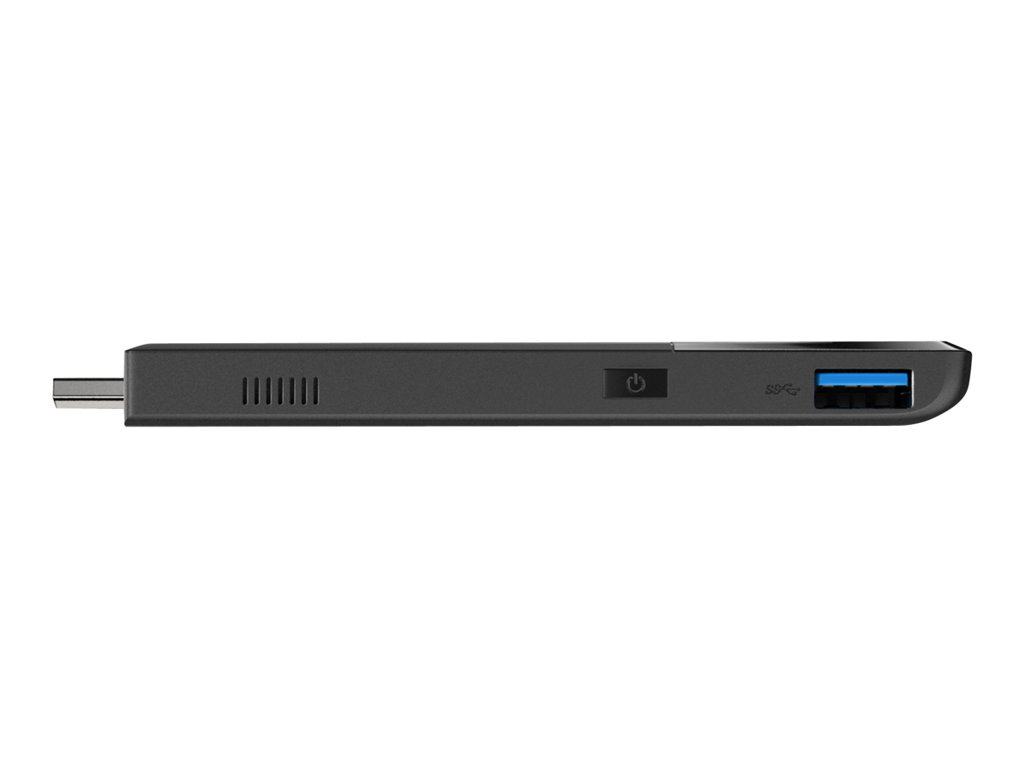

Stick Core m3 6Y30 / up to 2.2 GHz - RAM 4 GB - flash - eMMC 64 GB - HD Graphics 515 - Win 10 Home 64-bit - monitor: none - black
| Main Specifications | |
|---|---|
| Product Description | Intel Compute Stick STK2m3W64CC - stick Core m3 6Y30 900 MHz - 4 GB - flash 64 GB |
| Type | Personal computer - stick |
| Processor | Intel Core m3 (6th Gen) 6Y30 / 900 MHz (up to 2.2 GHz, (Dual-Core) |
| Cache Memory | 4 MB |
| Cache Per Processor | 4 MB |
| RAM | 4 GB (installed) / 4 GB (max) - LPDDR3 SDRAM |
| Hard Drive | Flash 64 GB - eMMC |
| Optical Storage | No optical drive |
| Card Reader | Yes |
| Graphics Controller | Intel HD Graphics 515 |
| Networking | 802.11a, 802.11b/g/n, Wi-Fi 5, Bluetooth 4.1 |
| OS Provided | Windows 10 Home 64-bit Edition |
| Color | Black |
| Dimensions (WxDxH) | 0.5 in x 1.5 in x 4.9 in |
| Weight | 2.12 oz |
| Manufacturer Warranty | Limited warranty - 3 years |
| General | |
| Type | Personal computer |
| Product Form Factor | Stick |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x USB 3.0 ¦ 1 x HDMI |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Quantity of Items per Pack | 5 |
| Cables Included | SuperSpeed USB-C cable ¦ HDMI extension cable |
| Theft/Intrusion Protection | Padlock loop |
| RAM | |
| Installed Size | 4 GB (installed) / 4 GB (max) |
| Technology | LPDDR3 SDRAM |
| Effective Memory Speed | 1866 MHz |
| Features | Dual channel memory architecture |
| Configuration Features | Provided memory is soldered |
| Networking | |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel Dual Band Wireless-AC 8260 |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 4.1 |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 4.1 |
| Power | |
| Device Type | Power adapter |
| Cache Memory | |
| Installed Size | 4 MB |
| Cache Per Processor | 4 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel HD Graphics 515 |
| Video Interfaces | HDMI |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Operating System / Software | |
| OS Provided | Windows 10 Home 64-bit Edition |
| Hard Drive | |
| Type | Flash - eMMC |
| Capacity | 1 x 64 GB |
| Dimensions & Weight | |
| Width | 0.5 in |
| Depth | 1.5 in |
| Height | 4.9 in |
| Weight | 2.12 oz |
| Card Reader | |
| Type | Card reader |
| Supported Flash Memory Cards | microSDXC UHS-I Memory Card |
| Processor / Chipset | |
| CPU | Intel Core m3 (6th Gen) 6Y30 |
| Clock Speed | 900 MHz |
| Max Turbo Speed | 2.2 GHz |
| Number of Cores | Dual-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| CPU Upgradability | Not upgradable |
