KVM / audio / USB switch - 8 x KVM / audio - desktop, rack-mountable
| Main Specifications | |
|---|---|
| Product Description | SmartAVI HDN-8P - KVM / audio / USB switch - 8 ports - rack-mountable |
| Device Type | KVM / audio / USB switch - 8 ports |
| Enclosure Type | Rack-mountable 1U |
| Subtype | KVM |
| Ports | 8 x KVM / audio |
| Features | Firmware upgradable, built-in 2-port USB 2.0 hub, HDCP compliant, Picture in Picture function, 12-bit Deep Color support, LPCM 7.1 support, Dolby TrueHD support, Dolby Digital Plus support, DTS-HD Master Audio support, 3DTV Pass-Through, automatic equalization, YUV 4:2:0, SmartPreview technology |
| Compliant Standards | USB 1.1, USB 2.0 |
| Power | AC 100-240 V |
| Dimensions (WxDxH) | 14.8 in x 6.3 in x 1.8 in |
| Weight | 3.51 lbs |
| General | |
| Device Type | KVM / audio / USB switch - 8 ports |
| Enclosure Type | Desktop, rack-mountable 1U |
| Subtype | KVM |
| Ports | 8 x KVM / audio |
| Keyboard / Mouse Interface | USB |
| Max Resolution | 3840 x 2160 @ 30 Hz |
| Max Video Bandwidth | 300 MHz |
| Features | Firmware upgradable, built-in 2-port USB 2.0 hub, HDCP compliant, Picture in Picture function, 12-bit Deep Color support, LPCM 7.1 support, Dolby TrueHD support, Dolby Digital Plus support, DTS-HD Master Audio support, 3DTV Pass-Through, automatic equalization, YUV 4:2:0, SmartPreview technology |
| Compliant Standards | USB 1.1, USB 2.0 |
| Expansion / Connectivity | |

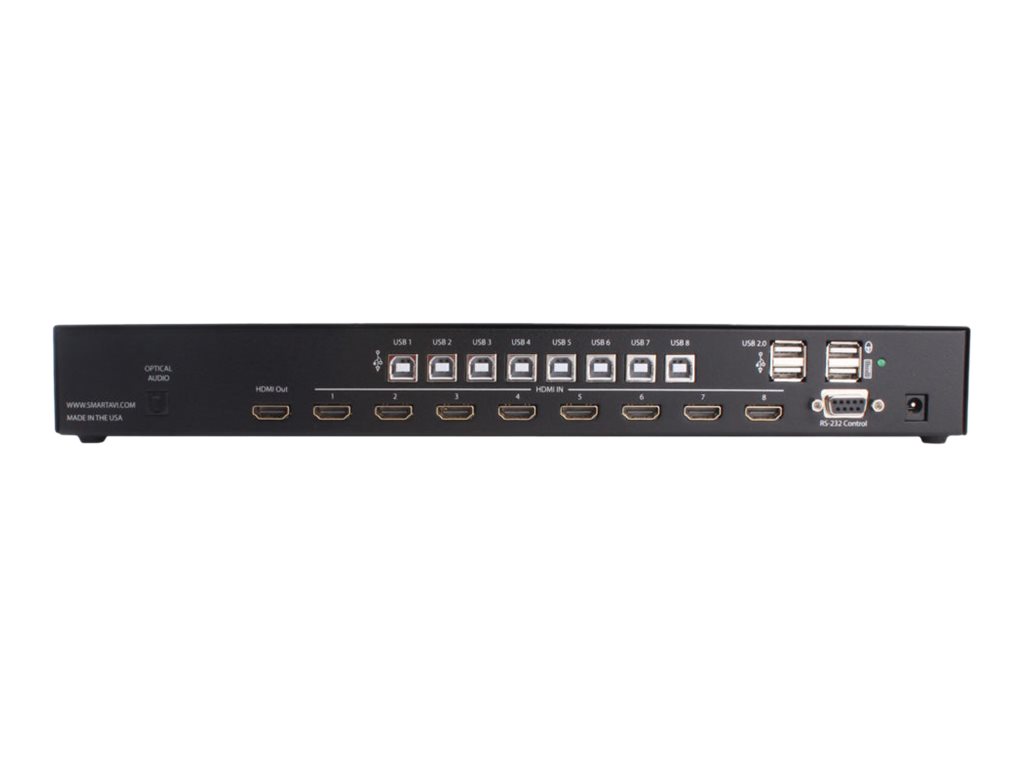

| Interfaces | 8 x HDMI input ¦ 8 x keyboard (USB) / mouse (USB) Type B ¦ 1 x management (RS-232) DB-9 management ¦ 4 x USB 2.0 Type A ¦ 1 x keyboard (USB) Type B console ¦ 1 x mouse (USB) Type B console ¦ 1 x HDMI output console |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| Compliant Standards | UL, RoHS, ISO 9001:2015 |
| Power | |
| Power Device | External power adapter |
| Power Provided | 20 Watt - 5 V - 4 A |
| Voltage Required | AC 100-240 V |
| Environmental Parameters | |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 185 °F |
| Dimensions & Weight | |
| Width | 14.8 in |
| Depth | 6.3 in |
| Height | 1.8 in |
| Weight | 3.51 lbs |
