NAS server - 8 bays - rack-mountable - SATA 6Gb/s / SAS 6Gb/s - RAID 0, 1, 5, 6, 10, 50, JBOD, 60 - RAM 8 GB - Gigabit Ethernet - iSCSI support - 2U
| Main Specifications | |
|---|---|
| Product Description | Thecus Technology N8900PRO - NAS server |
| Device Type | NAS server |
| Host Connectivity | Gigabit Ethernet |
| Enclosure Type | Rack-mountable - 2U |
| Installed Devices / Modules Qty | 0 (installed) / 8 (max) |
| Dimensions (WxDxH) | 17.2 in x 23.4 in x 3.4 in |
| Weight | 36.75 lbs () |
| Processor | 1 x Intel Xeon E3-1275 3.4 GHz (Quad-Core) |
| Storage Controller | RAID SATA 6Gb/s / SAS 6Gb/s RAID 0, 1, 5, 6, 10, 50, JBOD, 60 |
| Networking | 10Mb LAN, 100Mb LAN, 1GbE |
| RAM | 8 GB |
| Power Redundancy | Yes |
| System Requirements | UNIX, Linux, Apple MacOS X, Microsoft Windows XP or later, Microsoft Windows Server 2003 or later |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | NAS server |
| Host Connectivity | Gigabit Ethernet |
| Enclosure Type | Rack-mountable - 2U |
| Total Storage Capacity | 0 GB |
| Installed Devices / Modules Qty | 0 (installed) / 8 (max) |
| Width | 17.2 in |
| Depth | 23.4 in |
| Height | 3.4 in |
| Weight | 36.75 lbs () |
| Built-in Devices | Status LCD |
| Expansion / Connectivity | |

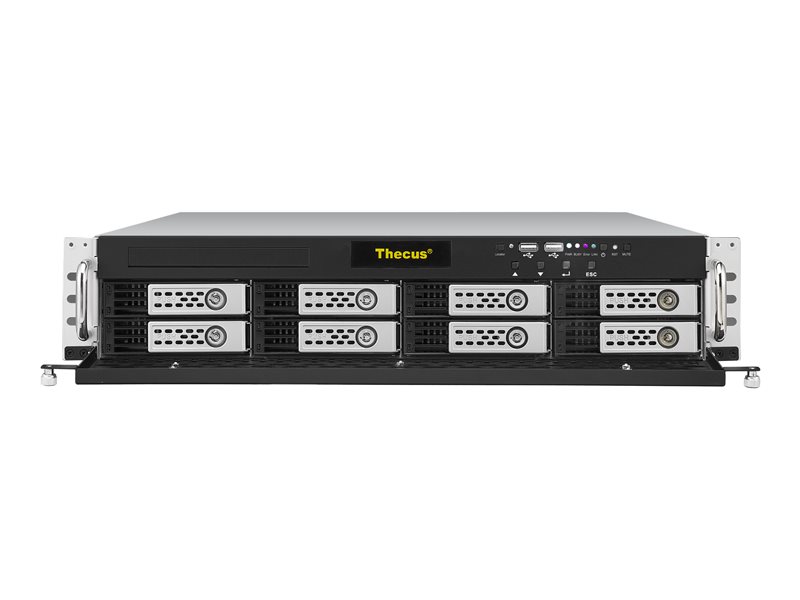

| Expansion Bays | 8 (total) / 8 (free) x hot-swap |
| Expansion Slots | 3 (total) / 2 (free) x PCI Express x8 ¦ 1 (total) / 1 (free) x PCI Express x4 ¦ 1 (total) / 0 (free) x PCI Express x1 |

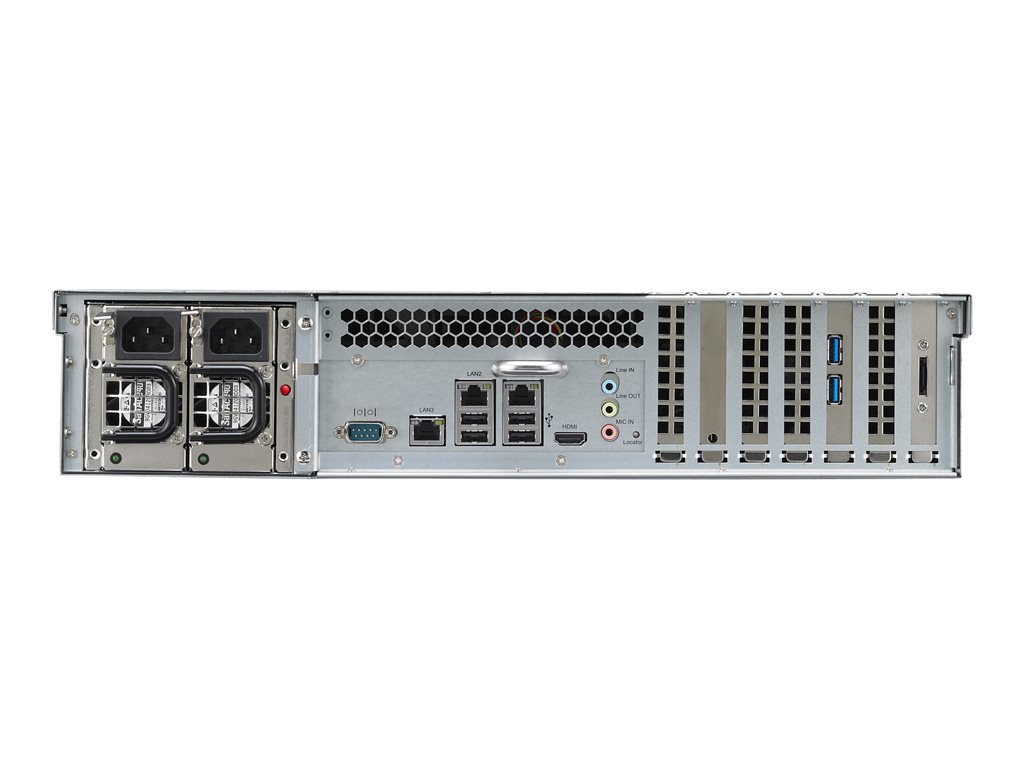

| Interfaces | 3 x Ethernet 1000Base-T - RJ-45 ¦ 6 x USB 2.0 - Type A ¦ 2 x USB 3.0 - Type A ¦ 1 x HDMI output ¦ 1 x eSATA ¦ 1 x audio out - mini-jack ¦ 1 x microphone (input) - mini-jack ¦ 1 x audio in - mini-jack ¦ 1 x serial RS-232 - DB-9 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts - 3 years ¦ Limited warranty - labor - 5 years |
| Networking | |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Network / Transport Protocol | TCP/IP, AppleTalk, FTP, Bonjour, SMB |
| Remote Management Protocol | IPP, HTTP, HTTPS |
| Network Services Compatibility | Microsoft CIFS, Network File System (NFS), FTP, Server Message Block (SMB), Apple File Protocol (AFP) |
| Features | Hardware encryption, load balancing, VLAN support, WOL, auto-uplink (auto MDI/MDI-X), dynamic DNS server, IPv6 support, High Availability, ACL support, SSH support, iTunes server, static IP mode, BitTorrent Client, IPv4 support, eMule client, dynamic IP mode, SNMP trap, cloud backup, VPN Server |
| Encryption Algorithm | 256-bit AES |
| Compliant Standards | IEEE 802.3ad (LACP), UPnP |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Power Provided | 500 Watt |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
| OS Required | UNIX, Linux, Apple MacOS X, Microsoft Windows XP or later, Microsoft Windows Server 2003 or later |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Storage Controller | |
| Type | RAID |
| Interface Type | SATA 6Gb/s / SAS 6Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60 |
| Processor / Memory | |
| Processors Installed | 1 x Intel Xeon E3-1275 3.4 GHz |
| Number of Cores | Quad-Core |
| Max Supported Qty | 1 |
| RAM | 8 GB (installed) / 32 GB (supported) - DDR3 |
