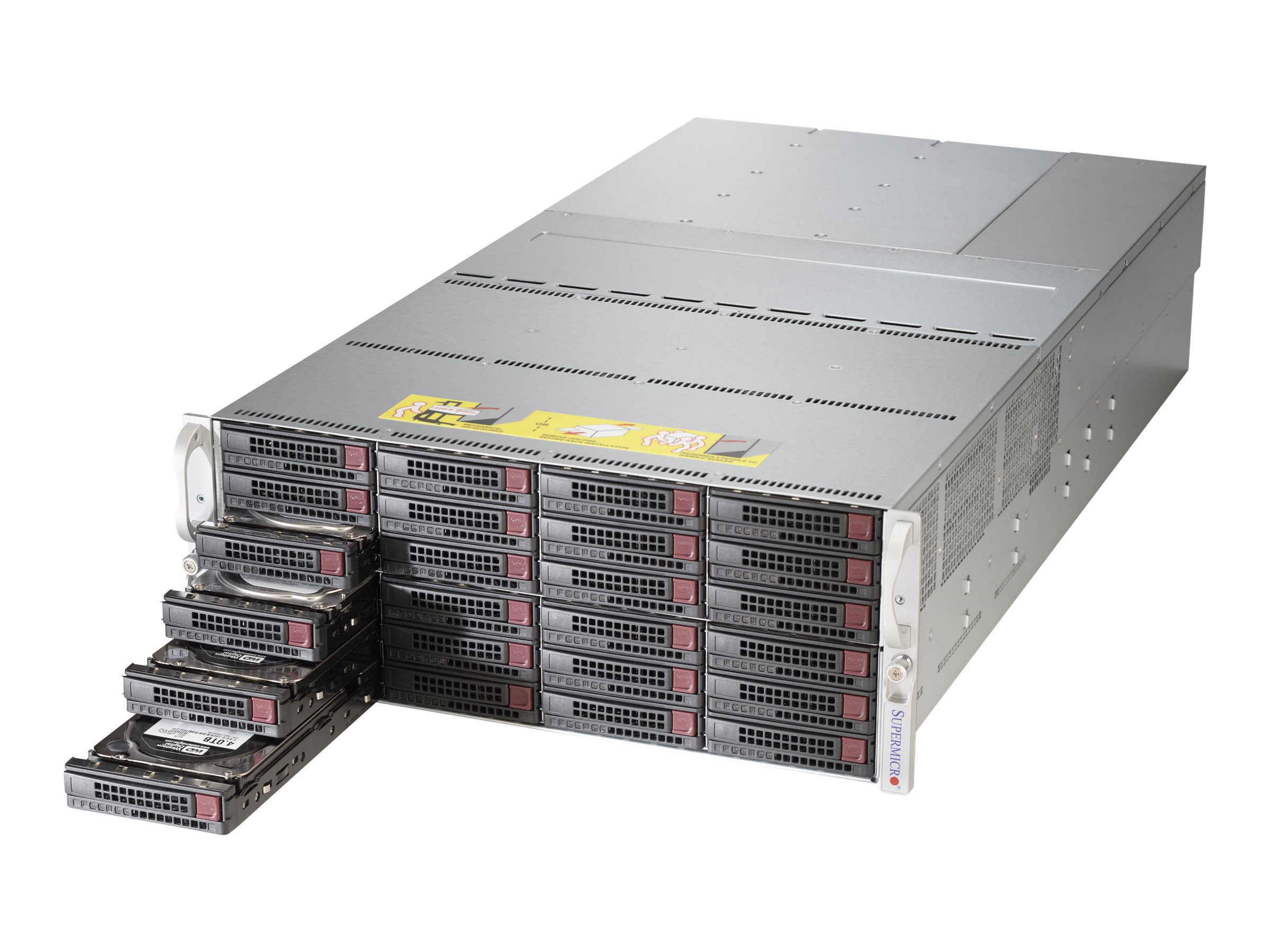

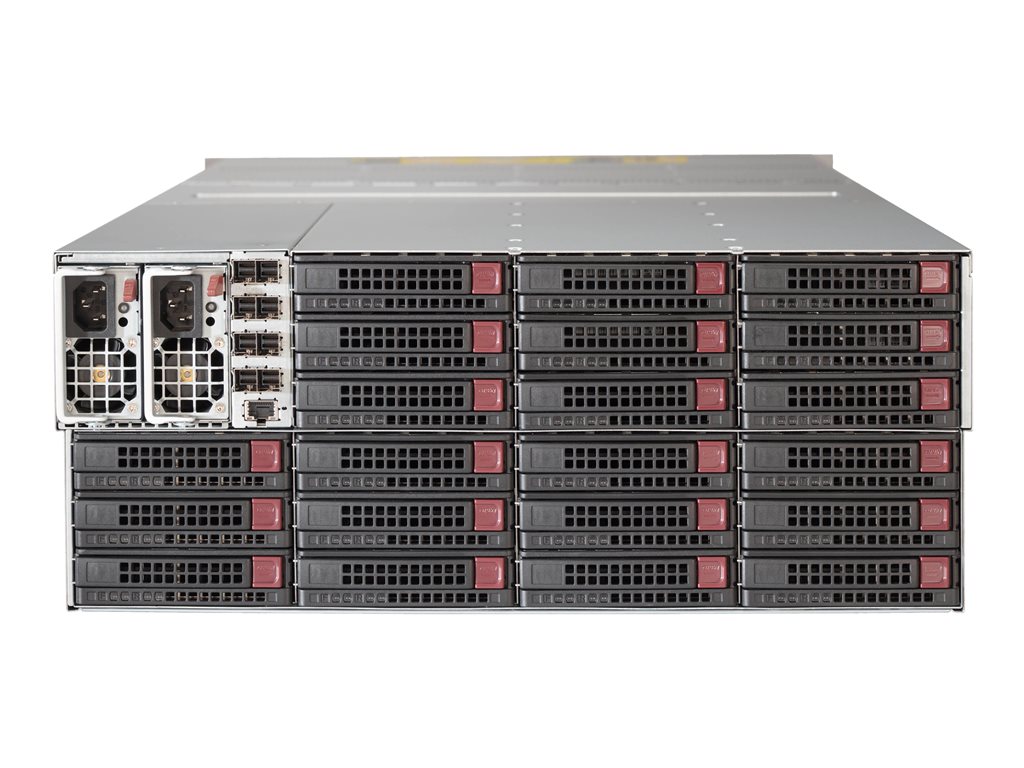

Storage enclosure - 90 bays (SATA-600 / SAS-3) - rack-mountable - 4U
| Main Specifications | |
|---|---|
| Product Description | Supermicro SC847 DE2C-R2K04JBOD - storage enclosure |
| Device Type | Storage enclosure |
| Enclosure Type | Rack-mountable - 4U |
| Color | Black |
| Installed Devices / Modules Qty | 0 (installed) / 90 (max) |
| Supported Drives | SATA-600 / SAS-3 |
| Hard Drive | No HDD |
| Power | AC 120/230 V - 50/60 Hz |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.2 in x 35 in x 7 in |
| Weight | 86 lbs |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Storage enclosure |
| Enclosure Type | Rack-mountable - 4U |
| Enclosure Color | Black |
| Expansion / Connectivity | |
| Expansion Bays | 90 (total) / 90 (free) x hot-swap - 3.5" |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - labor - 3 years ¦ Limited warranty - parts - 1 year |
| Miscellaneous | |
| Features | LED indicator, Intelligent Platform Management Interface (IPMI), SCSI Enclosure Services 3 (SES3), built-in 7 cooling fans |
| Compliant Standards | UL, TUV, cUL, EN 60950, IEC 60950, EMC, FCC |
| Processor | |
| CPU | No CPU |
| Power | |
| Power Device | Internal power supply |
| Power Redundancy | Yes |
| Voltage Required | AC 120/230 V - 50/60 Hz |
| Power Provided | 2000 watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 8 - 90% (non-condensing) |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 17.2 in |
| Depth | 35 in |
| Height | 7 in |
| Weight | 86 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 26 in |
| Shipping Depth | 45.5 in |
| Shipping Height | 17.4 in |
| Shipping Weight | 117.99 lbs |
| Chassis | |
| Installed Devices / Modules Qty | 0 |
| Supported Devices / Modules Qty | 90 |
| Supported Drives | SATA-600 / SAS-3 |
