Rack-mountable 3U - SATA/SAS - hot-swap 1000 Watt - black
| Main Specifications | |
|---|---|

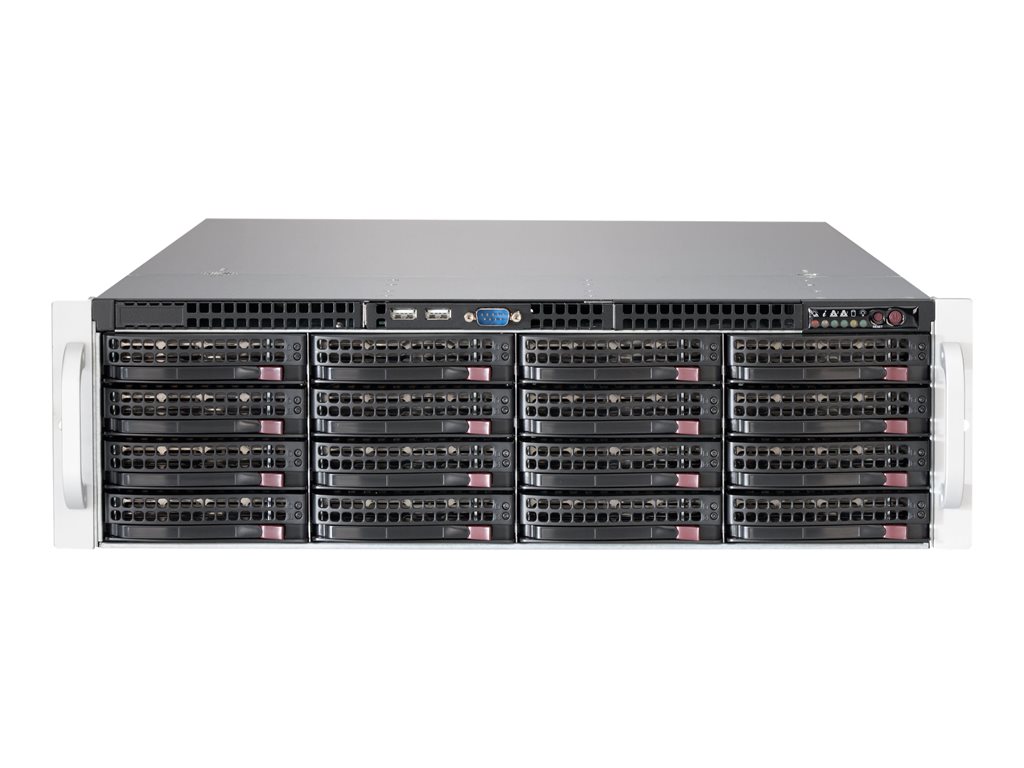

| Product Description | Supermicro SC836 BE2C-R1K03JBOD - rack-mountable - 3U |
| Product Type | System cabinet |
| Form Factor | Rack-mountable - 3U |
| Color | Black |
| Built-in Devices | LED panel |
| Server Storage Bays | SATA/SAS - hot-swap |
| Power Device | Power supply 1000 watt |
| Power Redundancy | Yes |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 17.2 in x 25.5 in x 5.2 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Form Factor | Rack-mountable - 3U |
| Hot-Swap Bays Qty | 16 |
| Server Swappable Drive Interface | SATA/SAS |
| Built-in Devices | LED panel |
| Color | Black |
| Cooling System | Internal: 80 x 80 x 38 mm fan x 3 / 7000 rpm / Pulse-width modulation (PWM) support, hot-swap, redundant ¦ Rear: 80 x 80 x 32 mm fan x 2 / exhaust / 6700 rpm / hot-swap |
| Expansion / Connectivity | |
| Expansion Bays | 16 (total) / 16 (free) x hot-swap - 3.5" |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - labor - 3 years ¦ Limited warranty - parts - 1 year ¦ Limited warranty - advance parts replacement - 30 days |
| Miscellaneous | |
| Included Accessories | SAS backplane, air shroud |
| Compliant Standards | UL, TUV, BSMI, cUL, EN 60950, IEC 60950, CB, CCC, FCC |
| Power | |
| Power Device | Power supply |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Installed Qty | 2 |
| Power Capacity (of Single Unit) | 1000 watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 1000 watt |
| 80 PLUS Certification | 80 PLUS Titanium |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 8 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 17.2 in |
| Depth | 25.5 in |
| Height | 5.2 in |
