Server - rack-mountable 1U - 2-way - no CPU - RAM 0 GB - no HDD - AST2400 - Gigabit Ethernet, 10 Gigabit Ethernet - no OS - monitor: none
| Main Specifications | |
|---|---|

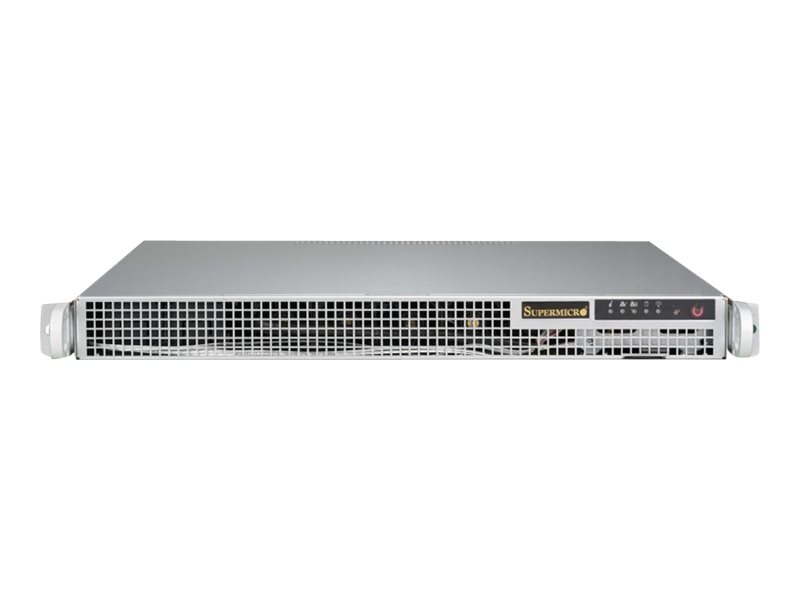

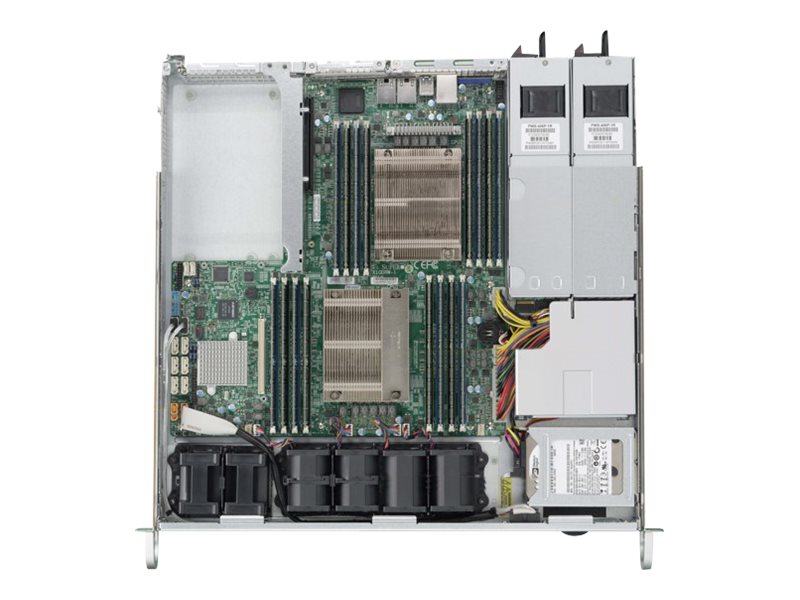

| Product Description | Supermicro SuperServer 1028R-WMRT - rack-mountable no CPU - 0 GB - no HDD |
| Type | Server - rack-mountable |
| Height (Rack Units) | 1U |
| Server Scalability | 2-way |
| Processor | No CPU |
| Processor Socket | LGA2011-v3 Socket |
| RAM | 0 GB (installed) / 2 TB (max) - DDR4 SDRAM - ECC |
| Storage Controller | RAID (SATA 6Gb/s) |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Graphics Controller | ASPEED AST2400 |
| Networking | 1GbE, 10GbE |
| Power | AC 120/230 V (50 - 60 Hz) |
| Power Redundancy | Yes |
| OS Provided | No operating system |
| Dimensions (WxDxH) | 17.2 in x 16.9 in x 1.7 in |
| Weight | 16.49 lbs |
| Manufacturer Warranty | Limited warranty - parts - 1 year ¦ Limited warranty - labor - 3 years |
| General | |
| Type | Server |
| Product Form Factor | Rack-mountable - 1U |
| Server Scalability | 2-way |
| Internal Bays Qty | 2 |
| Expansion / Connectivity | |
| Bays | 2 (total) / 2 (free) x internal 2.5" |
| Slots | 2 (total) / 2 (free) x CPU ¦ 16 (total) / 16 (free) x DIMM 288-pin ¦ 2 (total) / 2 (free) x PCIe 3.0 x16 - half-length, full-height |

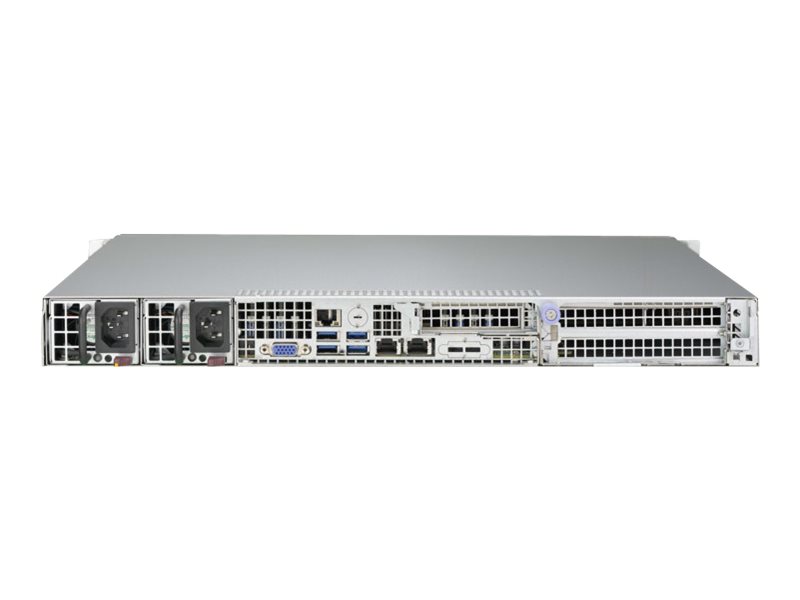

| Interfaces | 2 x LAN (10Gigabit Ethernet) - RJ-45 ¦ 1 x management - RJ-45 ¦ 4 x USB 2.0 ¦ 1 x VGA |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts - 1 year ¦ Limited warranty - labor - 3 years |
| Miscellaneous | |
| Included Accessories | 2 x CPU Heatsink |
| Compliant Standards | Plug and Play, RoHS, ACPI 4.0 |
| RAM | |
| Installed Size | 0 GB (installed) / 2 TB (max) |
| Technology | DDR4 SDRAM - ECC |
| Form Factor | DIMM 288-pin |
| Slots | 16 (total) / 16 (empty) |
| Features | Registered, Load-Reduced DIMM (LRDIMM), 3DS Load-Reduced DIMM (LRDIMM) |
| RAM Supported | 2 TB 3DS Load-Reduced - ECC ¦ 512 GB registered - ECC |
| Networking | |
| Ethernet Ports | 2 x 10 Gigabit Ethernet |
| Ethernet Controller | Intel X540 |
| Data Link Protocol | Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Remote Management Protocol | IPMI 2.0 |
| Remote Management Controller | Aspeed AST2400 |
| Features | KVM over IP support |
| Power | |
| Device Type | Power supply |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Power Provided | 400 Watt |
| 80 PLUS Certification | 80 PLUS Gold |
| Power Factor Correction | Yes |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 8 - 90% (non-condensing) |
| Storage Controller | |
| Type | 1 x RAID |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 10 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10 |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | ASPEED AST2400 |
| Video Interfaces | VGA |
| Operating System / Software | |
| OS Provided | No operating system |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 17.2 in |
| Depth | 16.9 in |
| Height | 1.7 in |
| Weight | 16.49 lbs |
| Processor / Chipset | |
| CPU | No CPU |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| CPU Socket | LGA2011-v3 Socket |
| Chipset Type | Intel C612 |
