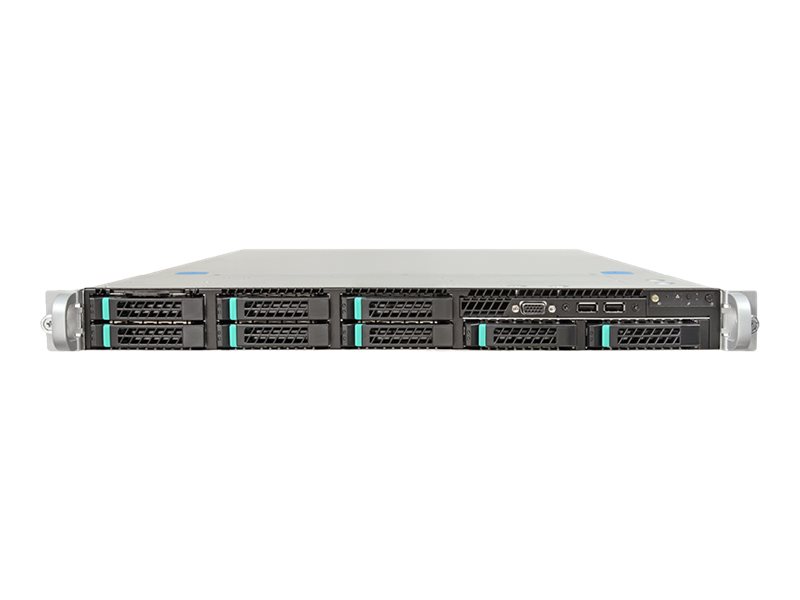

Server - rack-mountable 1U - 2-way - no CPU - RAM 0 GB - SATA/PCI Express - hot-swap 2.5" bay(s) - SSD 4 x 800 GB - monitor: none
| Main Specifications | |
|---|---|
| Product Description | Intel Server System R1208WTTB04NVMR - rack-mountable no CPU - 0 GB - SSD 4 x 800 GB |
| Type | Server - rack-mountable |
| Height (Rack Units) | 1U |
| Server Scalability | 2-way |
| Processor | No CPU |
| Processor Socket | LGA2011-v3 Socket |
| RAM | 0 GB (installed) / 1536 GB (max) - DDR4 SDRAM |
| Storage Controller | RAID (SATA 6Gb/s / SAS 12Gb/s) |
| Server Storage Bays | Hot-swap 2.5" |
| Hard Drive | 4 x SSD 800 GB - PCI Express 3.0 x4 - 2.5" |
| Optical Storage | No optical drive |
| Power | AC 120/230 V (50/60 Hz) |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 16.9 in x 28 in x 1.7 in |
| Manufacturer Warranty | Limited warranty - 3 years |
| General | |
| Type | Server |
| Product Form Factor | Rack-mountable - 1U |
| Built-in Devices | Backplane |
| Embedded Security | Trusted Platform Module (TPM 1.2) Security Chip |
| Server Scalability | 2-way |
| Hot-Swap Bays Qty | 8 |
| Expansion / Connectivity | |
| Bays | 8 (total) / 4 (free) x hot-swap 2.5" SFF |
| Slots | 2 (total) / 2 (free) x CPU ¦ 24 (total) / 24 (free) x DIMM 288-pin ¦ 1 (total) / 1 (free) x PCIe 3.0 x4 ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 ¦ 2 (total) / 2 (free) x PCIe 3.0 x16 |
| Interfaces | 1 x VGA ¦ 8 x USB 3.0 ¦ 2 x LAN (10Gigabit Ethernet) ¦ 2 x serial |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | 2 x CPU Heatsink, 2 x riser cards, Intel Server Board S2600WTT, backplane upgrade kit for NVMe, standard control panel board FXXFPANEL, 8 x 2.5 inch hot-swap drive carriers FXX25HSCAR |
| RAM | |
| Installed Size | 0 GB (installed) / 1536 GB (max) |
| Technology | DDR4 SDRAM |
| Form Factor | DIMM 288-pin |
| Slots | 24 (total) / 24 (empty) |
| Features | Intel Fast Memory Access, Intel Flex Memory Access |
| Networking | |
| Ethernet Ports | 2 x 10 Gigabit Ethernet |
| Remote Management Protocol | IPMI 2.0 |
| Power | |
| Device Type | Power supply - hot-plug |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 750 watt |
| Storage Controller | |
| Type | 1 x RAID |
| Controller Interface Type | SATA 6Gb/s / SAS 12Gb/s |
| Channel Qty | 10 |
| RAID Level | RAID 0, RAID 1, RAID 10 |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Video Interfaces | VGA |
| Hard Drive | |
| Type | SSD - 2.5" |
| Capacity | 4 x 800 GB |
| Interface Type | PCI Express 3.0 x4 |
| Features | NVM Express (NVMe) |
| Dimensions & Weight | |
| Width | 16.9 in |
| Depth | 28 in |
| Height | 1.7 in |
| Processor / Chipset | |
| CPU | No CPU |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| CPU Socket | LGA2011-v3 Socket |
