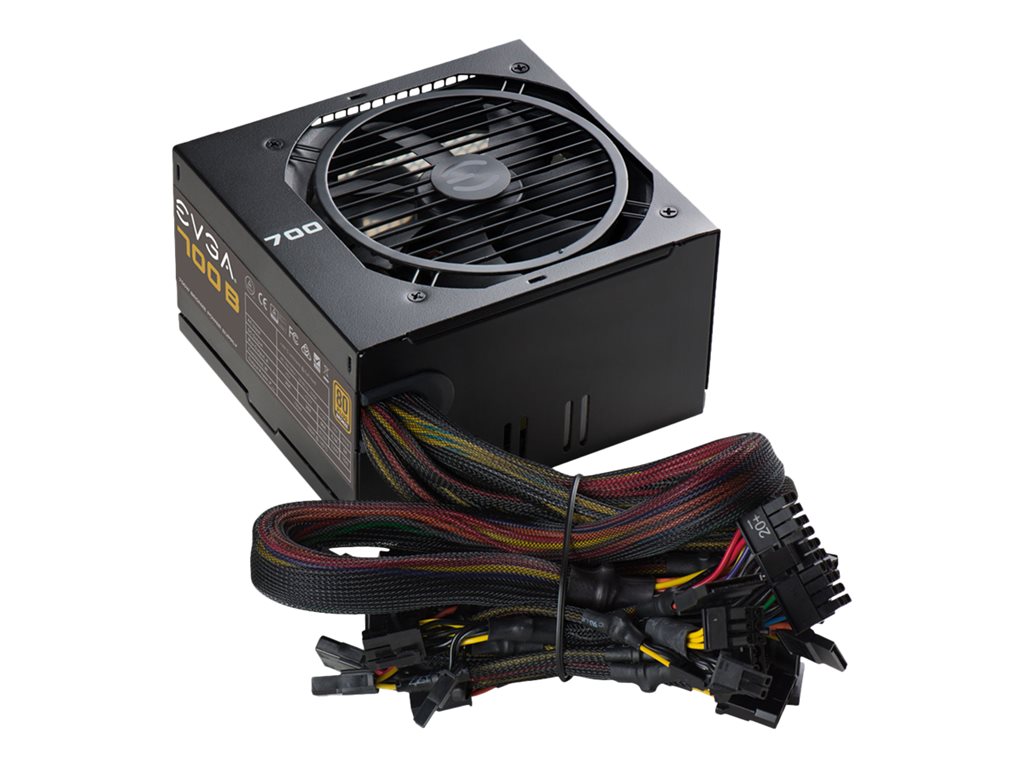

Power supply (internal) - ATX12V / EPS12V - 80 PLUS Bronze - AC 100-240 V - 700 Watt
| Main Specifications | |
|---|---|
| Product Description | EVGA 700B Bronze - power supply - 700 Watt |
| Device Type | Power supply - internal |
| Specification Compliance | ATX12V / EPS12V |
| 80 PLUS Certification | 80 PLUS Bronze |
| Weight | 0.08 oz |
| Input Voltage | AC 100-240 V |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 700 Watt |

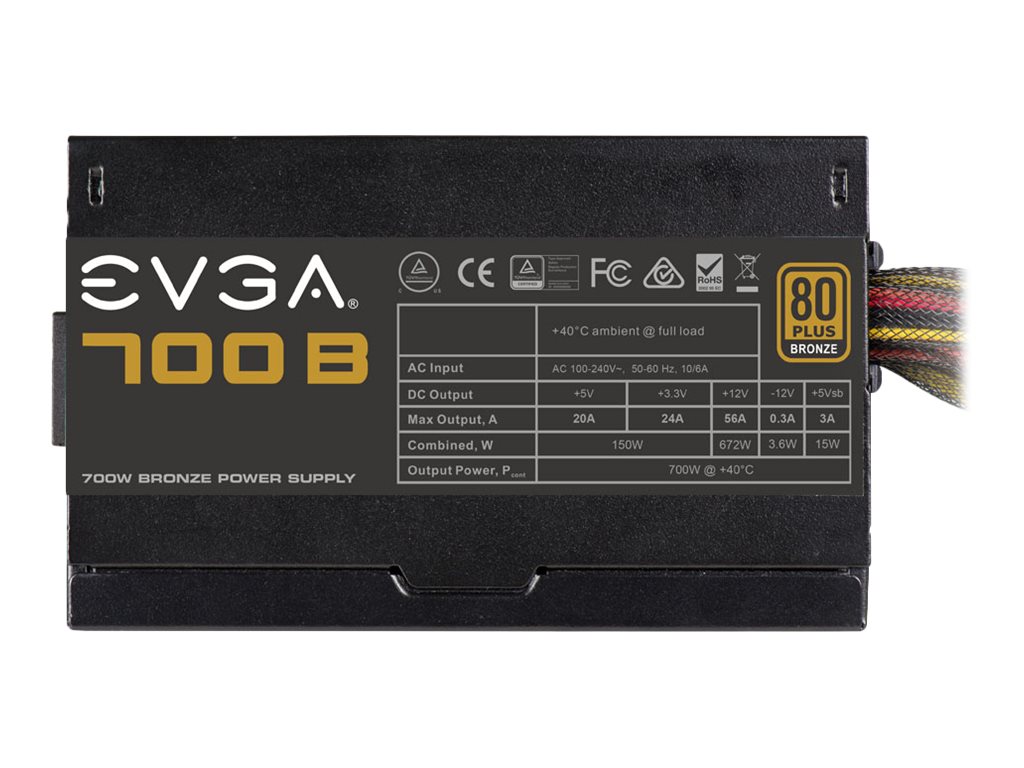

| Output Current | +5V - 20 A ¦ +3.3V - 24 A ¦ +12V - 56 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |

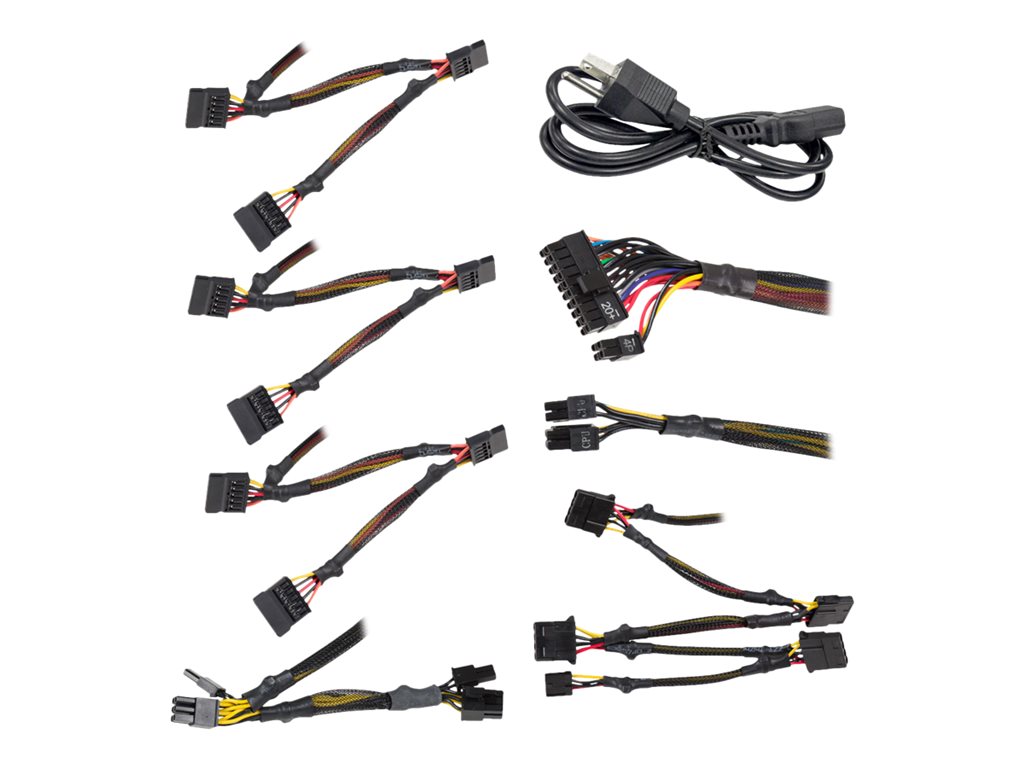

| Output connectors | 1 x power 24 pin ATX ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 3 x 4 pin internal power ¦ 9 x 15 pin Serial ATA power ¦ 1 x 4 pin mini-power connector |
| Cooling System | 120 mm fan |
| Dimensions (WxDxH) | 5.9 in x 5.5 in x 3.3 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Power supply - internal |
| Specification Compliance | ATX12V / EPS12V |
| PSU Form Factor | ATX |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years |
| Miscellaneous | |
| Cables Included | Power cable - external - 4 ft |
| MTBF | 100,000 hour(s) |
| Cooling System | 120 mm fan |
| Features | Overcurrent protection, overvoltage protection, overpower protection, undervoltage protection, short-circuit protection, single 12V rail |
| Compliant Standards | UL, TUV, cUL, CB, FCC, RoHS, WEEE, ErP 2013 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Power Device | |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 3 x 4 pin internal power ¦ 9 x 15 pin Serial ATA power ¦ 1 x 4 pin mini-power connector |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 700 Watt |
| Output Current | +5V - 20 A ¦ +3.3V - 24 A ¦ +12V - 56 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |
| Efficiency | 85% |
| 80 PLUS Certification | 80 PLUS Bronze |
| Dimensions & Weight | |
| Width | 5.9 in |
| Depth | 5.5 in |
| Height | 3.3 in |
| Weight | 0.08 oz |
