Power amplifier
| Main Specifications | |
|---|---|

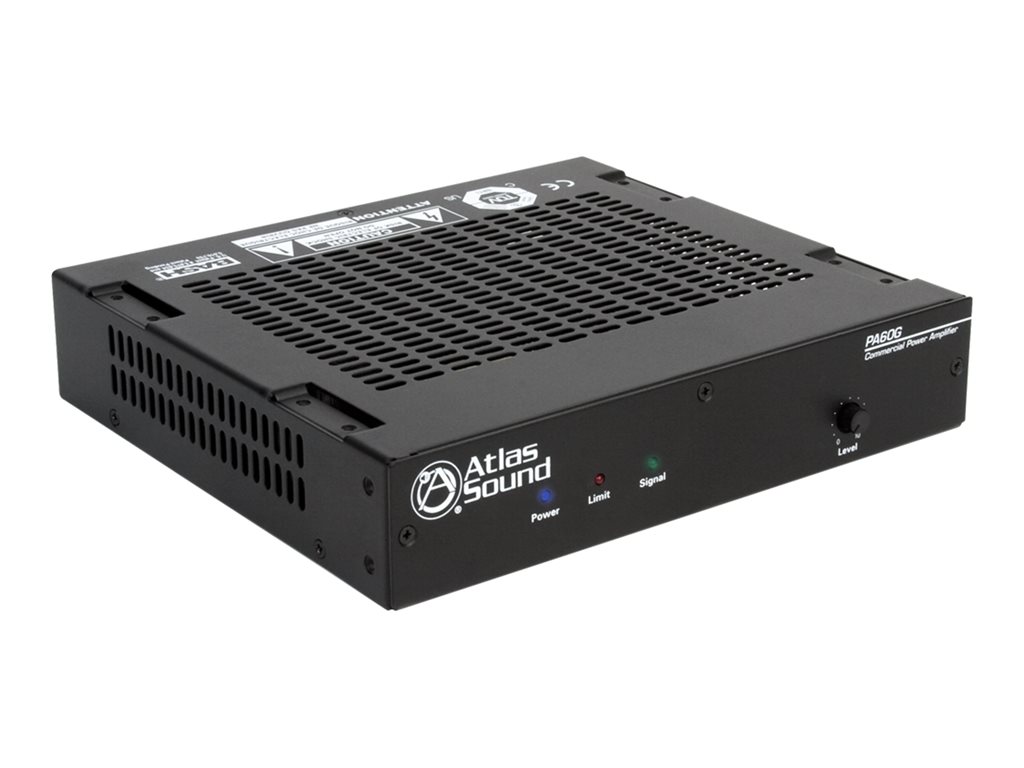

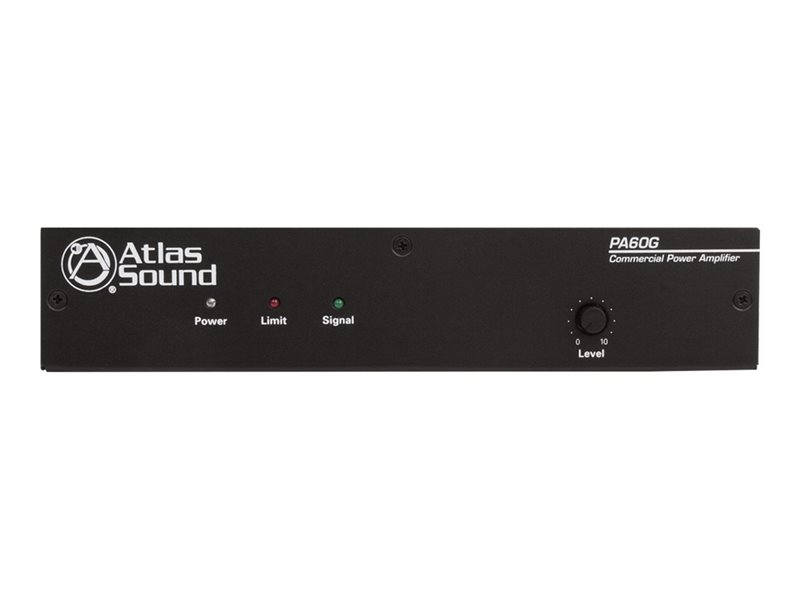

| Product Description | Atlas Sound PA60G - power amplifier |
| Product Type | Power amplifier |
| Audio Channels | Mono |
| Audio Specifications | Amplifier - 50 - 20000 Hz - 55 dB |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 8.5 in x 7.8 in x 1.7 in |
| Weight | 2.91 lbs |
| General | |
| Product Type | Power amplifier |
| Power | |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 34 Watt |
| Idle Power | 8 Watt |
| Connections | |

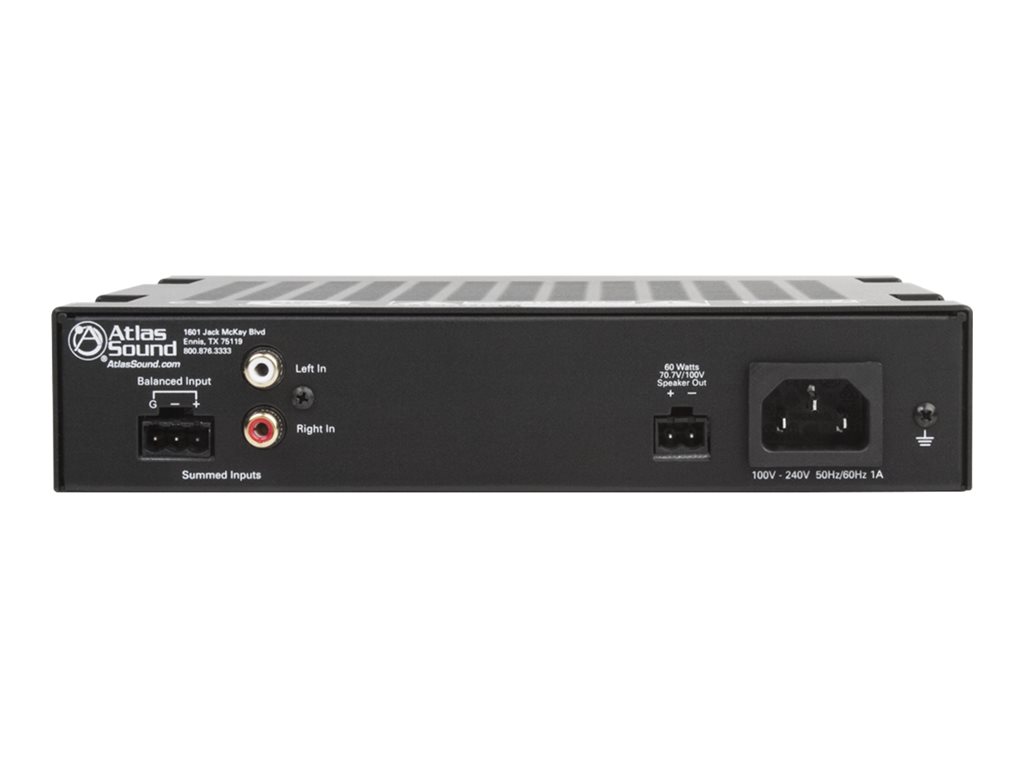

| Connectors | Balanced audio input (Phoenix-type) - rear ¦ Audio line-in (RCA x 2) - rear ¦ Speakers output (Phoenix-type) - rear |
| Dimensions & Weight | |
| Width | 8.5 in |
| Depth | 7.8 in |
| Height | 1.7 in |
| Weight | 2.91 lbs |
| Audio System | |
| Audio Channels | Mono |
| Functions | Amplifier |
| Audio Specifications | Amplifier - Response Bandwidth - 50 - 20000 Hz - SNR - 55 dB |
| Input Sensitivity | 500 mV |
| Amplifier Output Details | 60 Watt - at 1 kHz - THD 0.5% - 1 channels (70V) ¦ 60 Watt - at 1 kHz - THD 0.5% - 1 channels (100V) |
| Features | Rack mountable, 70V/100V operation |
| Dimensions & Weight (Shipping) | |
| Weight (Shipping) | 3.09 lbs |
