Power amplifier - black
| Main Specifications | |
|---|---|

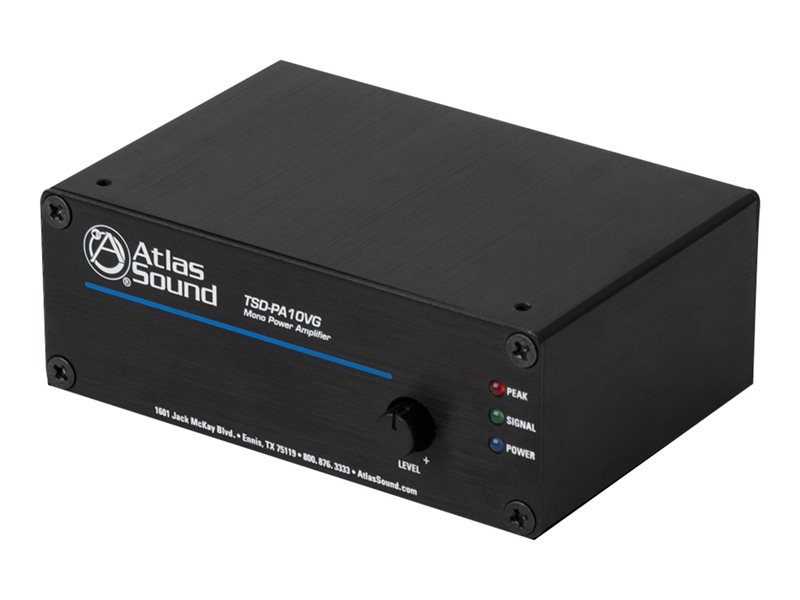

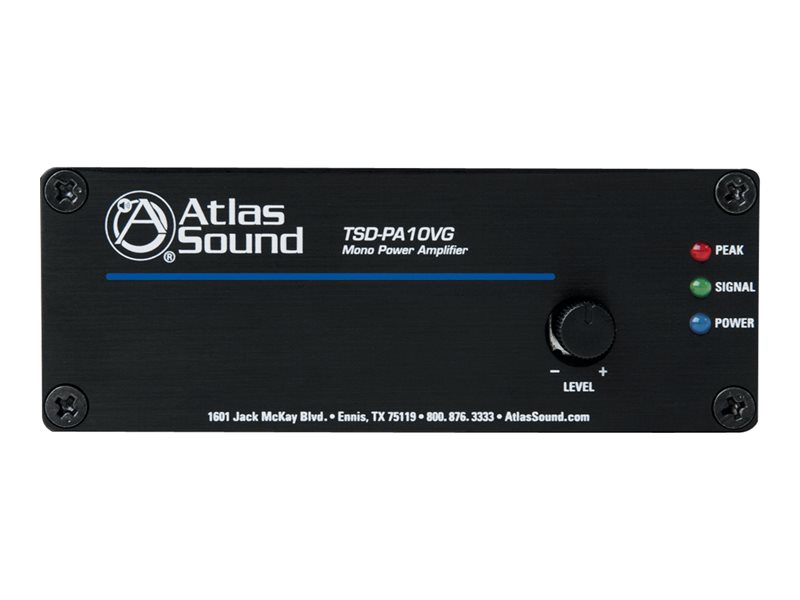

| Product Description | Atlas Sound TSD PA10VG - power amplifier |
| Product Type | Power amplifier |
| Enclosure Color | Black |
| Audio Channels | Mono |
| Audio Specifications | Amplifier - 40 - 20000 Hz - 78 dB ¦ Amplifier - at 1 Hz 0.5% |
| Power | DC 24 V |
| Dimensions (WxDxH) | 4 in x 2.6 in x 1.5 in |
| Weight | 5.82 oz |
| General | |
| Product Type | Power amplifier |
| Enclosure Color | Black |
| Enclosure Material | Aluminum |
| Power | |
| Voltage Required | DC 24 V |
| Power Consumption Operational | 6.7 Watt |
| Idle Power | 2.8 Watt |
| Connections | |

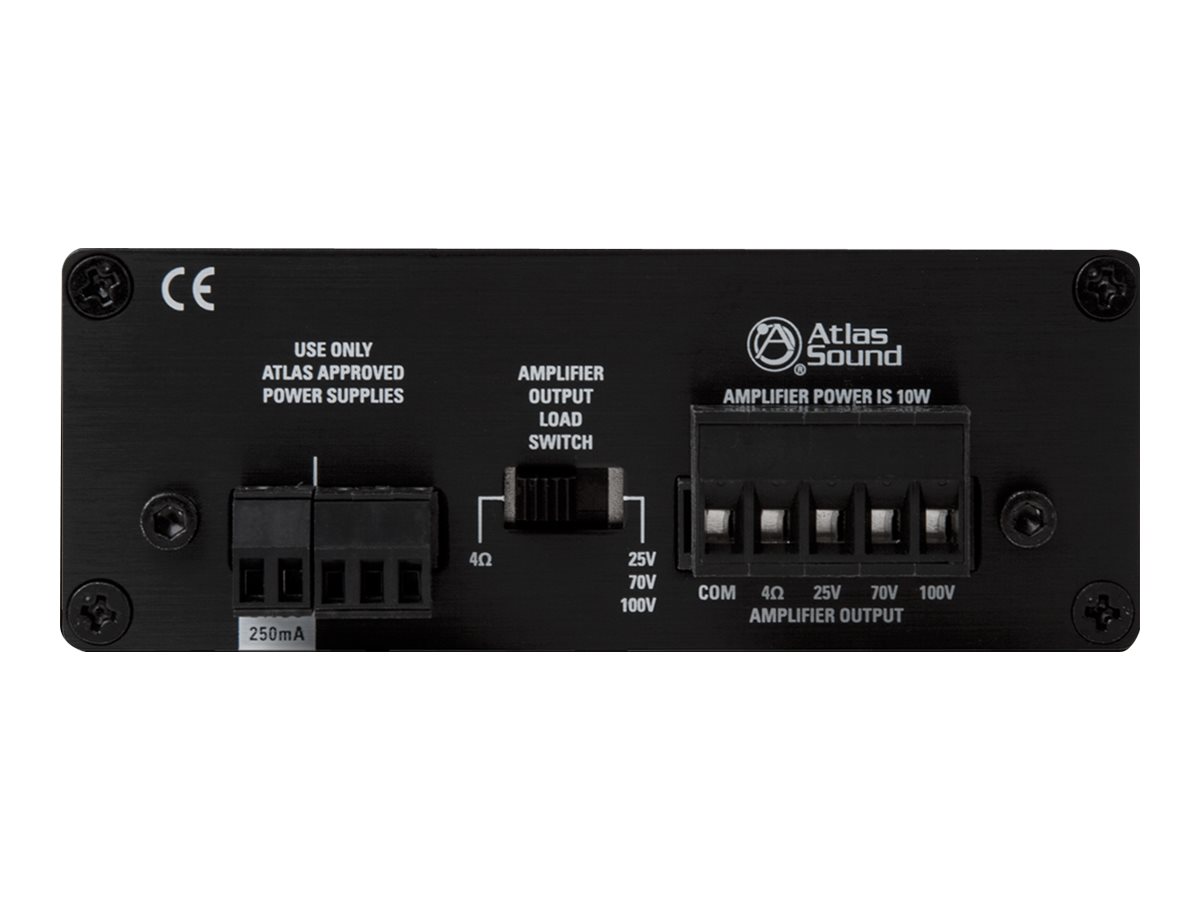

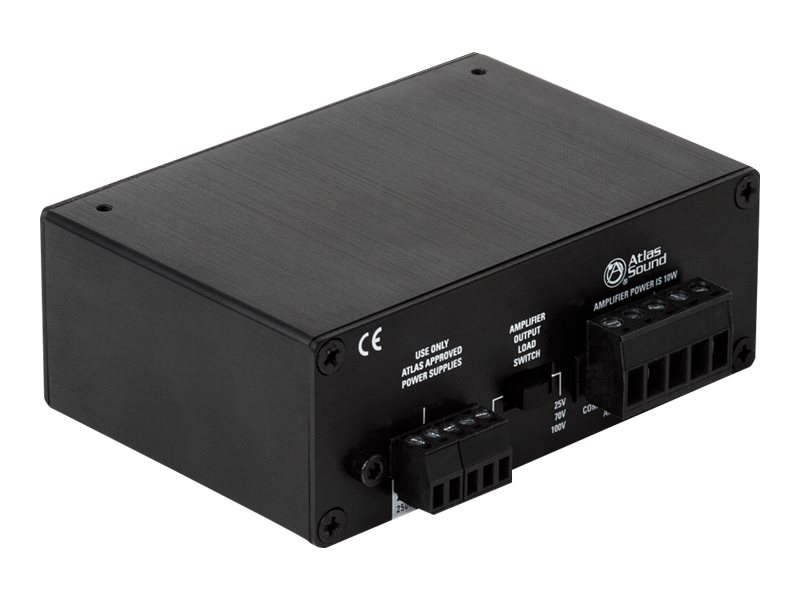

| Connectors | Balanced audio input (Phoenix-type) - rear ¦ Speakers output (Phoenix-type) - rear |
| Dimensions & Weight | |
| Width | 4 in |
| Depth | 2.6 in |
| Height | 1.5 in |
| Weight | 5.82 oz |
| Audio System | |
| Audio Channels | Mono |
| Functions | Amplifier |
| Audio Specifications | Amplifier - Response Bandwidth - 40 - 20000 Hz - SNR - 78 dB ¦ Amplifier - Response Bandwidth - at 1 Hz - THD - 0.5% |
| Input Channel Qty | 1 channels |
| Input Sensitivity | 500 mV |
| Amplifier Output Details | 10 Watt - 4 Ohm - 1 channels (main) ¦ 5 Watt - 8 Ohm - 1 channels (main) |
| Features | Input level controls, rack mountable, 25V/70V/100V or 4 Ohm operation |
