Wireless router 4-port switch - 1GbE Dual Band - TAA Compliant
| Main Specifications | |
|---|---|

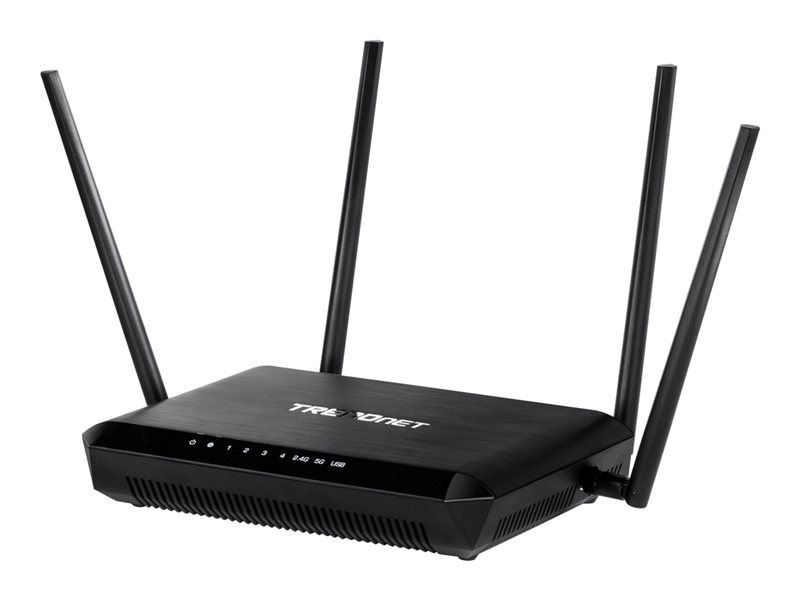

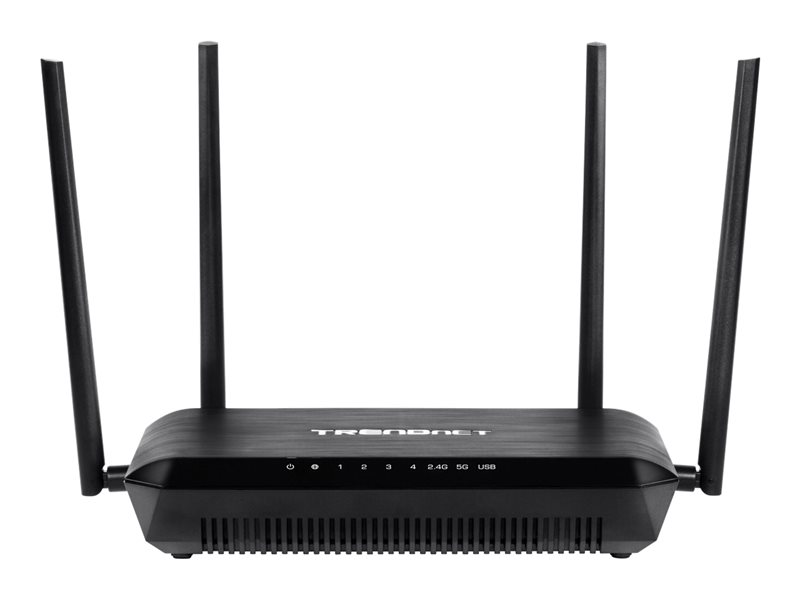

| Product Description | TRENDnet TEW-827DRU AC2600 StreamBoost MU-MIMO WiFi Router - wireless router - Wi-Fi 5 - desktop - TAA Compliant |
| Device Type | Wireless router - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| WAN Ports Qty | 1 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Frequency Band | 2.4 GHz / 5 GHz |
| Data Transfer Rate | 1.733 Gbps |
| Network / Transport Protocol | PPTP, L2TP, IPSec, PPPoE, FTP, DHCP, SMB, CSMA/CA, DDNS, DHCPv6 |
| Routing Protocol | RIP-1, RIP-2, static IP routing |
| Remote Management Protocol | HTTP, TFTP |
| VoIP Protocols | H.323, SIP |
| Features | Firewall protection, NAT support, traffic shaping, SPI, ALG support, MAC address filtering, IPv6 support, VPN passthrough, URL filtering, parental control, IP address filtering, firmware upgradable, WMM support, TFTP support, QoS, virtual server support, iTunes server, WPS, Samba support, FTP server, BitTorrent Client, reset button, StreamBoost, MU-MIMO technology, beamforming technology |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11a, IEEE 802.3x, IEEE 802.11g, IEEE 802.11n, IEEE 802.3az, IEEE 802.11ac |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 9.8 in x 7.1 in x 1.8 in |
| Weight | 26.52 oz |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Wireless router - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Frequency Band | 2.4 GHz / 5 GHz |
| Data Transfer Rate | 1.733 Gbps |
| Network / Transport Protocol | PPTP, L2TP, IPSec, PPPoE, FTP, DHCP, SMB, CSMA/CA, DDNS, DHCPv6 |
| Routing Protocol | RIP-1, RIP-2, static IP routing |
| Remote Management Protocol | HTTP, TFTP |
| Encryption Algorithm | WPA, WPA2, WPA-PSK, WPA2-PSK, WEP |
| Authentication Method | RADIUS, Radio Service Set ID (SSID) |
| Wi-Fi Rating | AC2600 |
| Features | Firewall protection, NAT support, traffic shaping, SPI, ALG support, MAC address filtering, IPv6 support, VPN passthrough, URL filtering, parental control, IP address filtering, firmware upgradable, WMM support, TFTP support, QoS, virtual server support, iTunes server, WPS, Samba support, FTP server, BitTorrent Client, reset button, StreamBoost, MU-MIMO technology, beamforming technology |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11a, IEEE 802.3x, IEEE 802.11g, IEEE 802.11n, IEEE 802.3az, IEEE 802.11ac, FCC |
| Processor | 1 x 1.4 GHz |
| Expansion / Connectivity | |
| Interfaces | WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ USB 3.0: 2 x 9 pin USB Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |

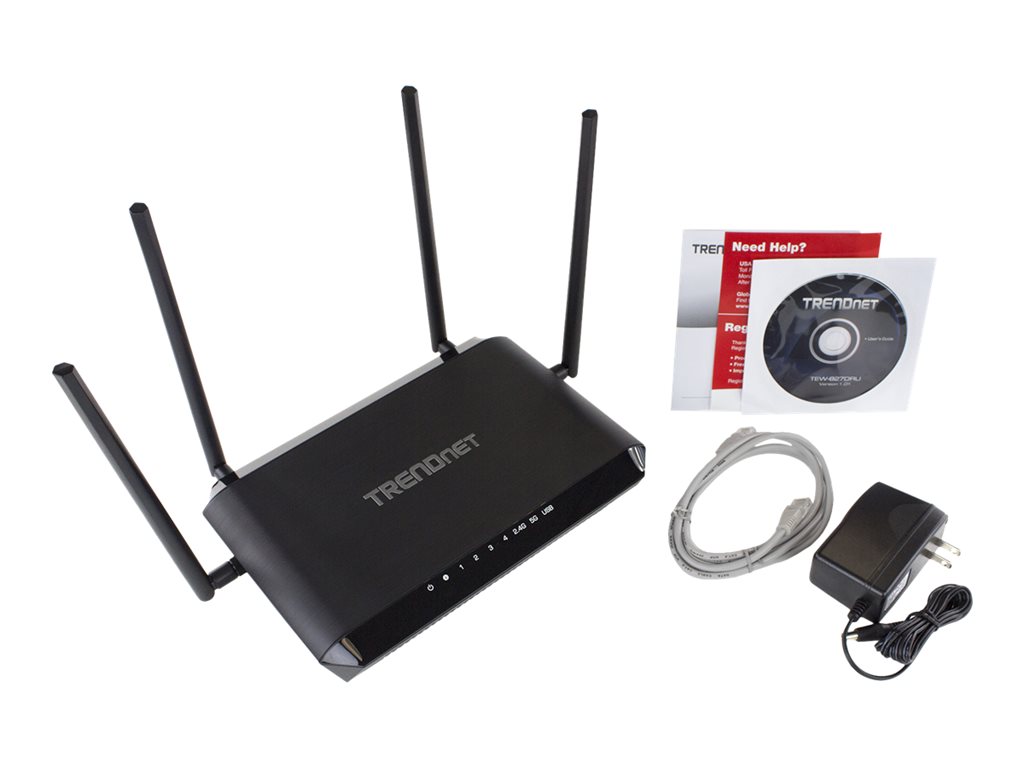

| Cables Included | 1 x network cable - 5 ft |
| TAA Compliant | Yes |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 31 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 9.8 in |
| Depth | 7.1 in |
| Height | 1.8 in |
| Weight | 26.52 oz |
| Antenna | |
| Antenna | External detachable |
| Antenna Qty | 4 |
| IP Telephony | |
| VoIP Protocols | H.323, SIP |
| Line Properties | |
| Line Coding Format | DBPSK, DQPSK, CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM |
