Bridge 2.4 GHz
| Main Specifications | |
|---|---|
| Product Description | IOGEAR Ethernet-2-WiFi Universal Wireless Transmitter - bridge - Wi-Fi - desktop |
| Device Type | Bridge |
| Enclosure Type | Desktop |
| Data Link Protocol | Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency Band | 2.4 GHz |
| Data Transfer Rate | 300 Mbps |
| Features | USB powered, WPS, 2T2R MIMO technology |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Dimensions (WxDxH) | 2.6 in x 0.7 in x 1 in |
| Weight | 0.71 oz |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Bridge |
| Enclosure Type | Desktop |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency Band | 2.4 GHz |
| Data Transfer Rate | 300 Mbps |
| Max Range Indoors | 328 ft |
| Max Range Open Space | 590 ft |
| Encryption Algorithm | AES, 128-bit WEP, 64-bit WEP, TKIP, WPA, WPA2 |
| Features | USB powered, WPS, 2T2R MIMO technology |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Expansion / Connectivity | |
| Interfaces | WAN / LAN: 1 x 10Base-T/100Base-TX - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |

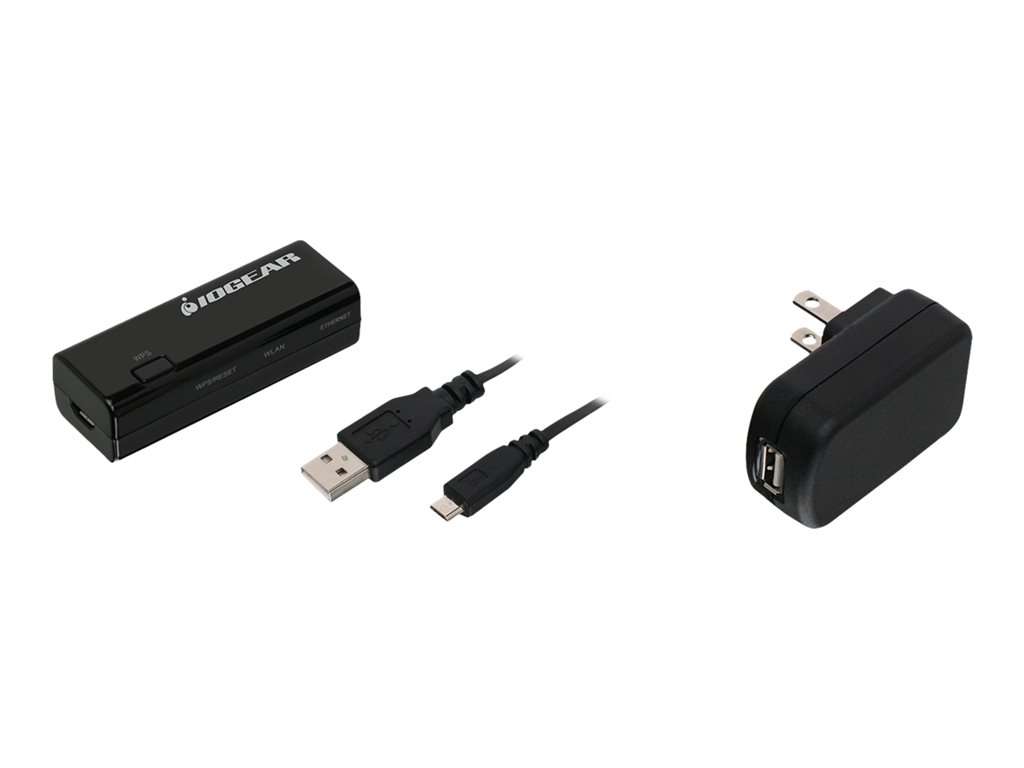

| Cables Included | 1 x network cable - 3 ft ¦ 1 x USB power cable |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 2.6 in |
| Depth | 0.7 in |
| Height | 1 in |
| Weight | 0.71 oz |
| Line Properties | |
| Line Coding Format | 64 QAM, BPSK, QPSK, 16 QAM |
