Ultrabook - Intel Core i7 - 6700HQ / up to 3.5 GHz - Win 10 Home 64-bit - GF GTX 960M - 16 GB RAM - 512 GB SSD - 15.6" IPS touchscreen 3840 x 2160 (Ultra HD 4K) - 10/100 Ethernet - Wi-Fi 5
| Main Specifications | |
|---|---|

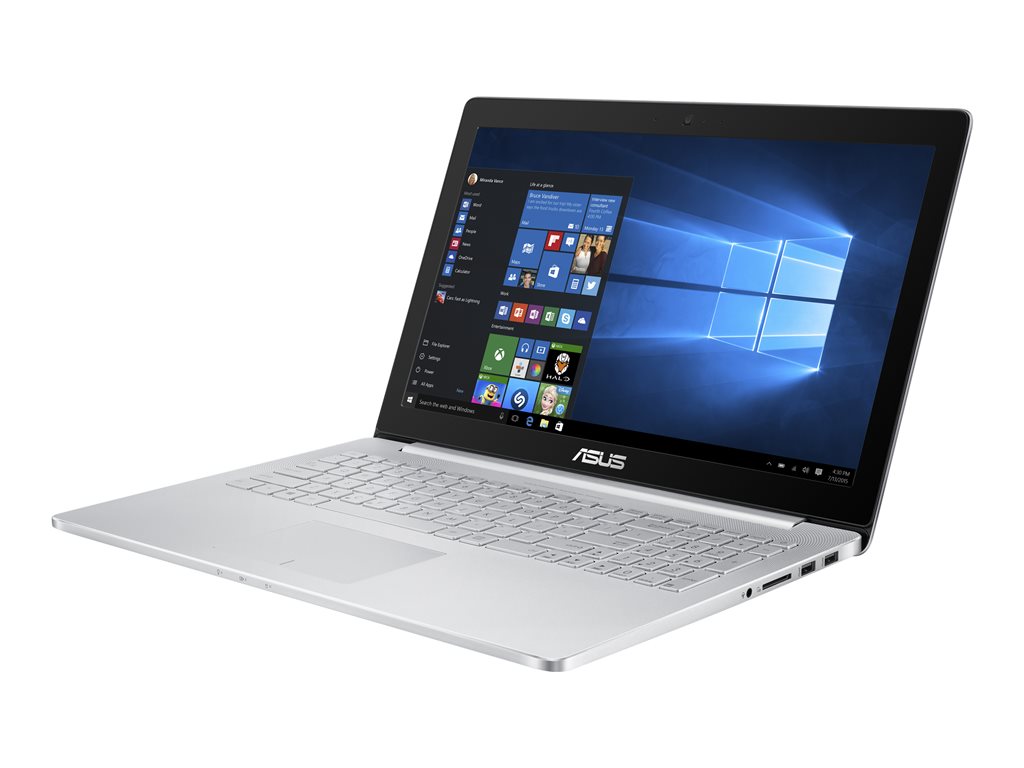

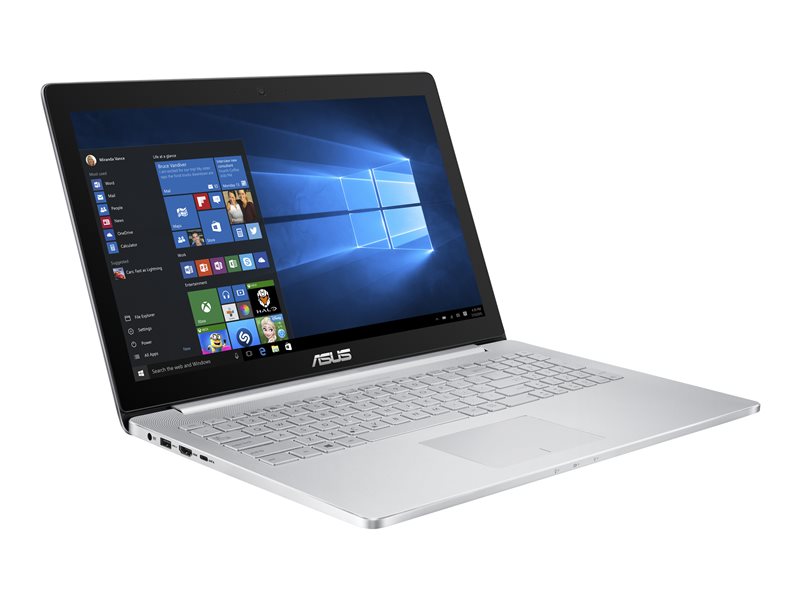

| Product Description | ASUS ZENBOOK Pro UX501VW DS71T - 15.6" - Intel Core i7 - 6700HQ - 16 GB RAM - 512 GB SSD |
| Product Type | Ultrabook |
| Operating System | Win 10 Home 64-bit |
| Processor | Intel Core i7 (6th Gen) - 6700HQ / 2.6 GHz, up to 3.5 GHz / 6 MB Cache |
| Memory | 16 GB DDR4 (1 x 8 GB + 8 GB (soldered)) |
| Storage | 512 GB SSD |
| Display | 15.6" LED backlight touchscreen 3840 x 2160 / Ultra HD 4K - 282 ppi |
| Graphics | NVIDIA GeForce GTX 960M |
| Video Memory | 2 GB GDDR5 SDRAM |
| Integrated Webcam | Yes |
| Networking | Bluetooth 4.0, 802.11a/b/g/n/ac, 10/100 Ethernet |
| Battery | 6-cell - up to 6 hours |
| Security | Trusted Platform Module (TPM) Security Chip |
| Dimensions (WxDxH) | 15.1 in x 10 in x 0.8 in |
| Weight | 5 lbs |
| Manufacturer Warranty | Limited warranty - 1 year ¦ Accidental damage coverage - 1 year |
| General | |
| Product Type | Ultrabook |
| Operating System | Windows 10 Home 64-bit Edition |
| Memory | |
| RAM | 16 GB (1 x 8 GB + 8 GB (soldered)) |
| Max RAM Supported | 16 GB |
| Technology | DDR4 SDRAM |
| Speed | 2133 MHz / PC4-17000 |
| Rated Speed | 2133 MHz |
| Form Factor | SO-DIMM 260-pin |
| Slots Qty | 1 |
| Empty Slots | 0 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year ¦ Accidental damage coverage - 1 year |
| Miscellaneous | |

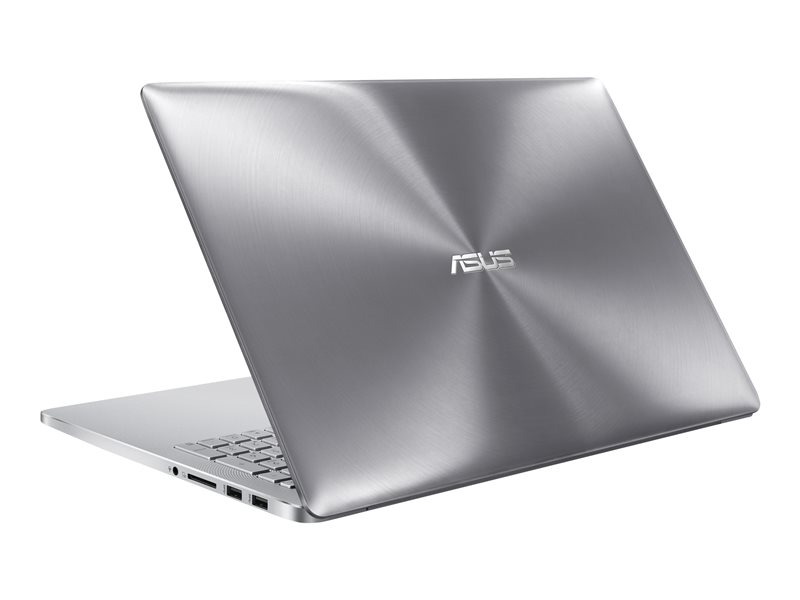

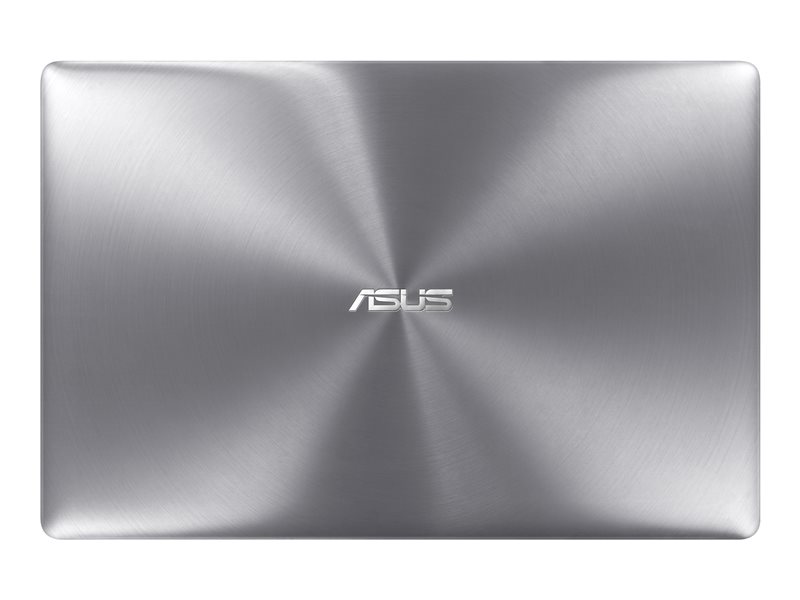

| Case Material | Aluminum |
| Security | Trusted Platform Module (TPM) Security Chip |
| Included Accessories | Power adapter, carrying case, USB Fast Ethernet adapter |
| Cables Included | Mini DisplayPort-VGA cable |
| Storage | |
| Main Storage | 512 GB SSD PCIe |
| Software | |
| Software Included | 16 GB ASUS WebStorage (1 year) |
| Battery | |
| Technology | 6-cell lithium polymer |
| Capacity | 96 Wh |
| Run Time | Up to 6 hours |
| Display | |
| Type | 15.6" - IPS |
| LCD Backlight Technology | LED backlight |
| Touchscreen | Yes |
| Resolution | 3840 x 2160 (Ultra HD 4K) |
| Widescreen | Yes |
| Pixel Density (ppi) | 282 |
| Image Aspect Ratio | 16:9 |
| Features | Zero Bright Dot, ASUS Splendid Video Intelligence Technology, WideView |
| Communications | |
| Wireless | Bluetooth 4.0, 802.11a/b/g/n/ac |
| Network Interface | 10/100 Ethernet |
| Dimensions & Weight | |
| Dimensions (WxDxH) | 15.1 in x 10 in x 0.8 in |
| Weight | 5 lbs |
| Processor / Chipset | |
| CPU | Intel Core i7 (6th Gen) 6700HQ / 2.6 GHz |
| Max Turbo Speed | 3.5 GHz |
| Number of Cores | Quad-Core |
| Cache | 6 MB |
| 64-bit Computing | Yes |
| Chipset | Mobile Intel HM87 Express |
| Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2.0, Intel Smart Cache |
| Audio & Video | |
| Graphics Processor | NVIDIA GeForce GTX 960M |
| Video Memory | 2 GB GDDR5 SDRAM |
| Camera | Yes - HD |
| Resolution | 1.2 Megapixel |
| Sound | Stereo speakers, microphone |
| Audio Features | Output: ASUS Bang & Olufsen ICEpower, ASUS SonicMaster Premium |
| Input | |

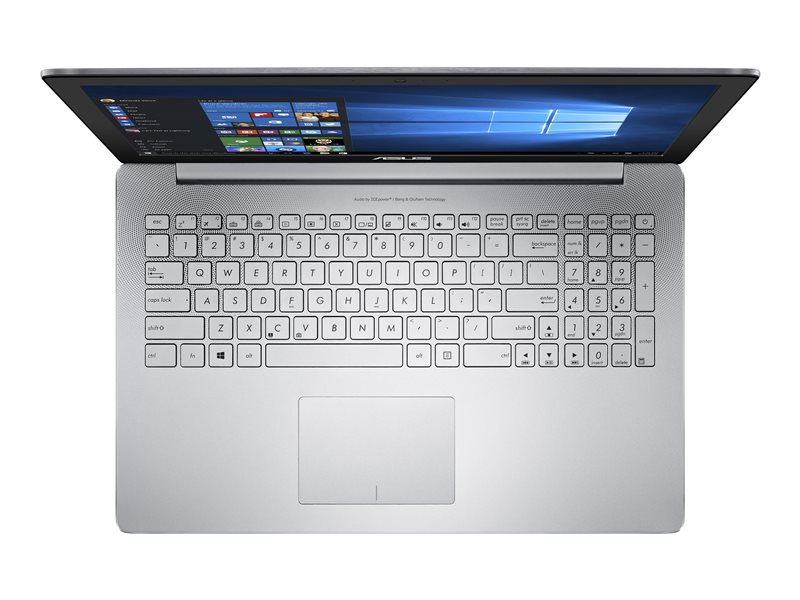

| Type | Touchpad |
| Features | ASUS Smart Gesture technology |
| AC Adapter | |
| Input | (50/60 Hz) |
| Output | 120 Watt, 19 V, 6.32 A |
| Connections & Expansion | |

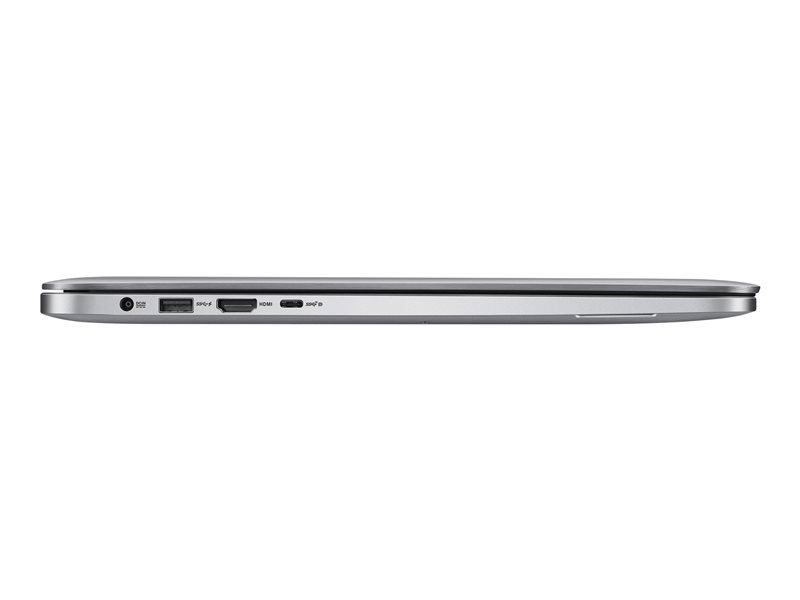

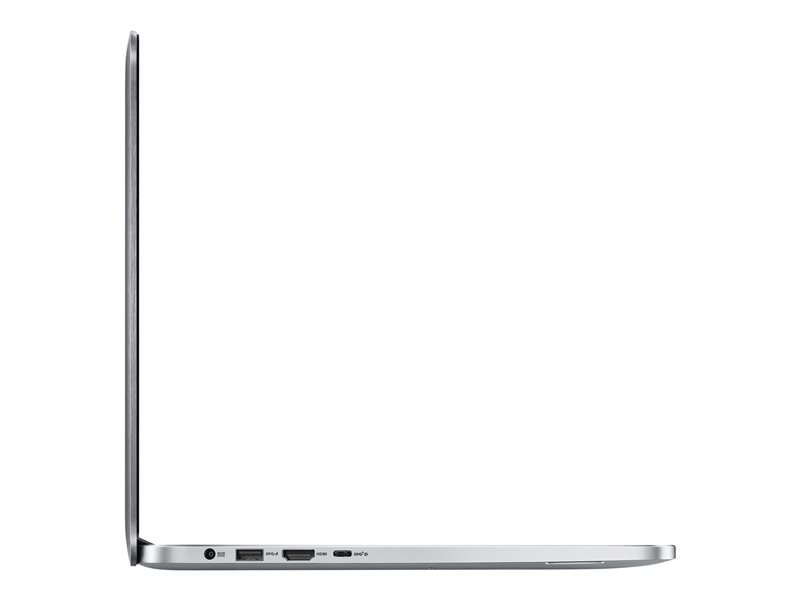

| Interfaces Details | Headphone/microphone combo jack ¦ USB-C (supports Thunderbolt 3) ¦ 3 x USB 3.0 ¦ HDMI ¦ LAN (on supplied cable) |
| Memory Card Reader | 2 in 1 (SD Card, SDHC Card, SDXC Card) |
