Power supply (internal) - ATX / EPS - 80 PLUS Platinum - AC 100-240 V - 650 Watt - United States
| Main Specifications | |
|---|---|
| Product Description | EVGA SuperNOVA 650 P2 - power supply - 650 Watt |
| Device Type | Power supply - internal |
| Specification Compliance | ATX / EPS |
| 80 PLUS Certification | 80 PLUS Platinum |
| Weight | 6 lbs |
| Localization | United States |
| Input Voltage | AC 100-240 V |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 650 Watt |

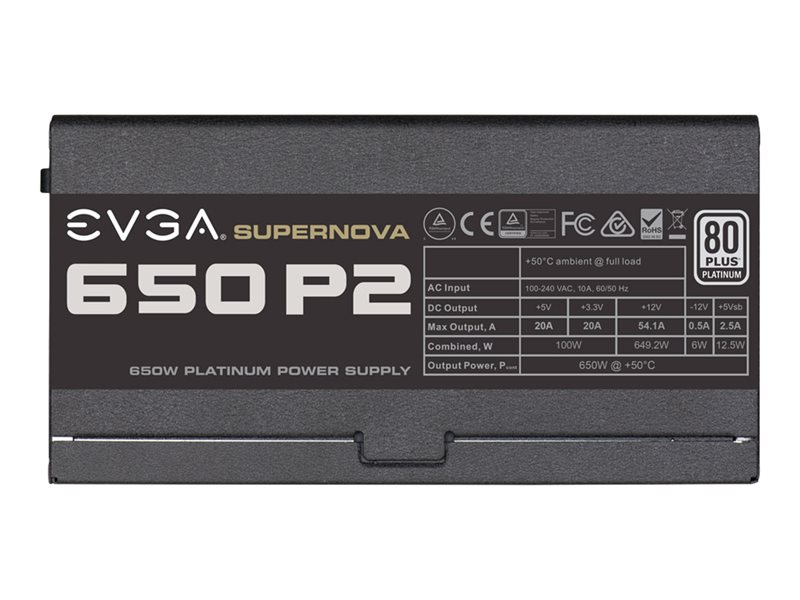

| Output Current | +5V - 20 A ¦ +3.3V - 20 A ¦ +12V - 54.1 A ¦ -12V - 0.5 A ¦ +5VSB - 2.5 A |

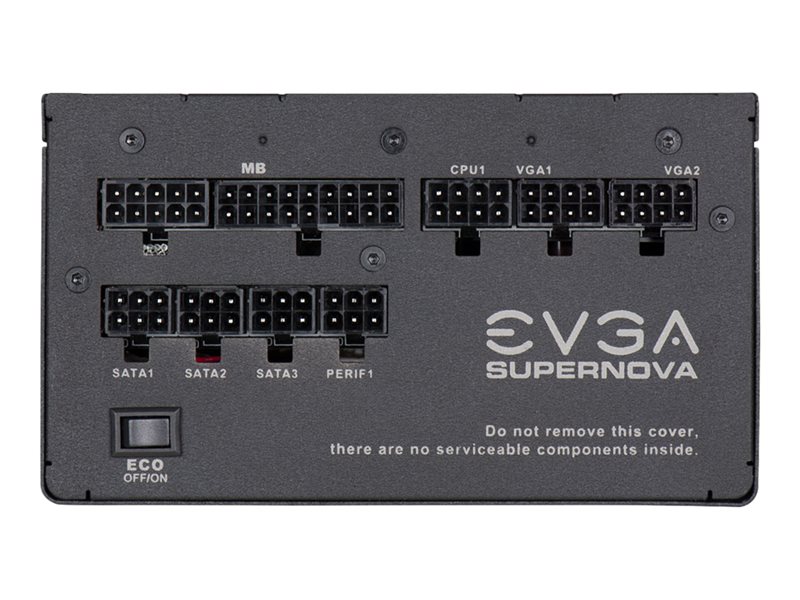

| Output connectors | 1 x power 24 pin ATX ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 2 x 6 pin PCI Express power ¦ 9 x 15 pin Serial ATA power ¦ 6 x 4 pin internal power ¦ 1 x 4 pin mini-power connector |
| Modular Cable Management | Yes |
| Cooling System | 140 mm fan |

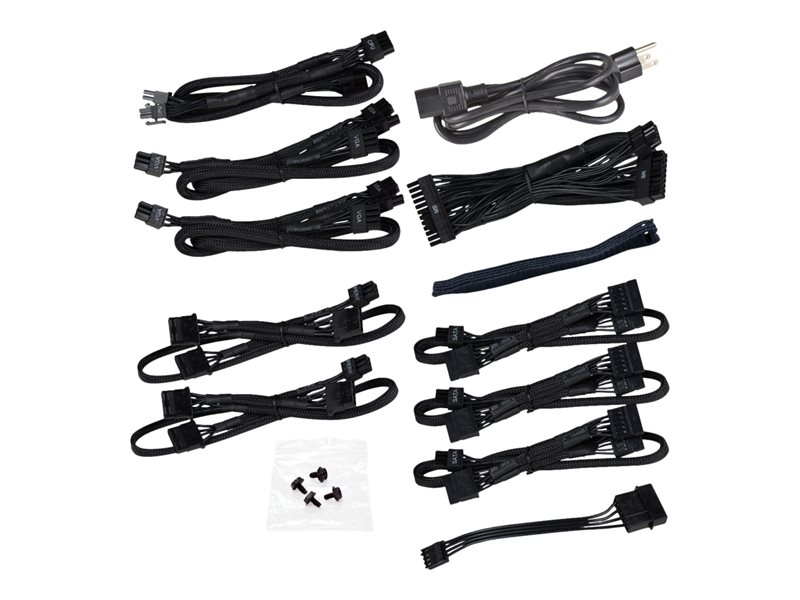

| Included Accessories | Cable bag |
| Dimensions (WxDxH) | 5.9 in x 6.5 in x 3.3 in |
| Manufacturer Warranty | 10-year warranty with product registration |
| General | |
| Device Type | Power supply - internal |
| Specification Compliance | ATX / EPS |
| PSU Form Factor | ATX |
| Localization | United States |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 10 years with product registration |
| Miscellaneous | |
| Included Accessories | Cable bag |
| MTBF | 100,000 hour(s) |
| Cooling System | 140 mm fan |
| Features | Overcurrent protection, overvoltage protection, overpower protection, SLI ready, CrossFire ready, undervoltage protection, short-circuit protection, single 12V rail, Eco-Mode, fully modular |
| Compliant Standards | TUV, CB, FCC, RoHS, WEEE, cTUVus, ErP 2013, RCM |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Power Device | |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 2 x 6 pin PCI Express power ¦ 9 x 15 pin Serial ATA power ¦ 6 x 4 pin internal power ¦ 1 x 4 pin mini-power connector |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 650 Watt |
| Output Current | +5V - 20 A ¦ +3.3V - 20 A ¦ +12V - 54.1 A ¦ -12V - 0.5 A ¦ +5VSB - 2.5 A |
| Efficiency | 92% (115VAC) / 94% (220-240VAC) |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Platinum |
| Dimensions & Weight | |
| Width | 5.9 in |
| Depth | 6.5 in |
| Height | 3.3 in |
| Weight | 6 lbs |
