Motherboard - SSI EEB - LGA2011-v3 Socket - 2 CPUs supported - C612 Chipset - USB 3.0 - 2 x Gigabit LAN - onboard graphics
| Main Specifications | |
|---|---|

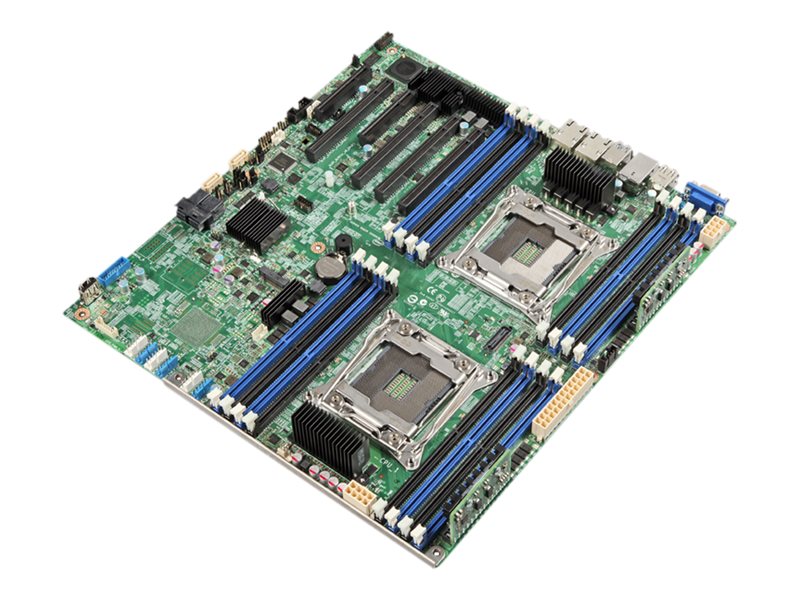

| Product Description | Intel Server Board S2600CW2R - motherboard - SSI EEB - LGA2011-v3 Socket - C612 |
| Product Type | Motherboard - SSI EEB |
| Chipset Type | Intel C612 |
| Processor Socket | 2 x LGA2011-v3 Socket |
| Compatible Processors | Xeon E5-2600 v3 series (supports CPUs with up to 18 cores, Maximum TDP 145 Watt) |
| Max RAM Size | 1024 GB |
| RAM Supported | 16 DIMM slots - DDR4, ECC, registered, Load-Reduced |
| Storage Ports | 8 x SAS3 (RAID), 10 x SATA-600 (RAID), 1 x M.2 |
| USB / FireWire Ports | 2 x USB 3.0 + 2 x USB 2.0 |
| Dedicated Video Memory | 16 MB DDR3 SDRAM |
| LAN | 2 x Gigabit Ethernet |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | Motherboard - SSI EEB |
| Chipset Type | Intel C612 |
| Processor Socket | LGA2011-v3 Socket |
| Max Processors Qty | 2 |
| Compatible Processors | Xeon E5-2600 v3 series (supports CPUs with up to 18 cores, Maximum TDP 145 Watt) |
| Expansion / Connectivity | |
| Expansion Slots | 2 x CPU ¦ 16 x DIMM 288-pin (1.2 V) ¦ 1 x PCIe 3.0 x4 ¦ 4 x PCIe 3.0 x16 ¦ 1 x PCIe 3.0 x8 |
| Storage Interfaces | SATA-600 -connectors: 10 x 7pin SATA, 1 x M.2 - RAID 0 / RAID 1 / RAID 10 |
| RAID Features | Intel Rapid Storage Technology |
| Interfaces | 1 x VGA ¦ 2 x USB 2.0 ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x management ¦ 2 x USB 3.0 |
| Internal Interfaces | 1 x USB 2.0 - Type A ¦ 1 x USB 3.0 - header ¦ 1 x serial |
| Power Connectors | 24-pin main power connector |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | I/O back plate |
| Cables Included | 2 x Serial ATA cable |
| Width | 12 in |
| Depth | 13 in |
| Features | |
| BIOS Type | Intel |
| BIOS Features | IPMI 2.0 support |
| Hardware Features | Trusted Platform Module (TPM) 2.0 |
| LAN | |
| Network Controller | Intel I350 |
| Network Interfaces | 2 x Gigabit Ethernet |
| Graphics | |
| Dedicated Video Memory | 16 MB DDR3 SDRAM |
| Supported RAM | |
| Max Size | 1024 GB |
| Technology | DDR4 |
| Bus Clock | 1600 MHz, 1333 MHz, 1866 MHz, 2133 MHz |
| Supported RAM Integrity Check | ECC |
| Registered or Buffered | Registered, Load-Reduced |
| Features | 8-channel memory architecture |
