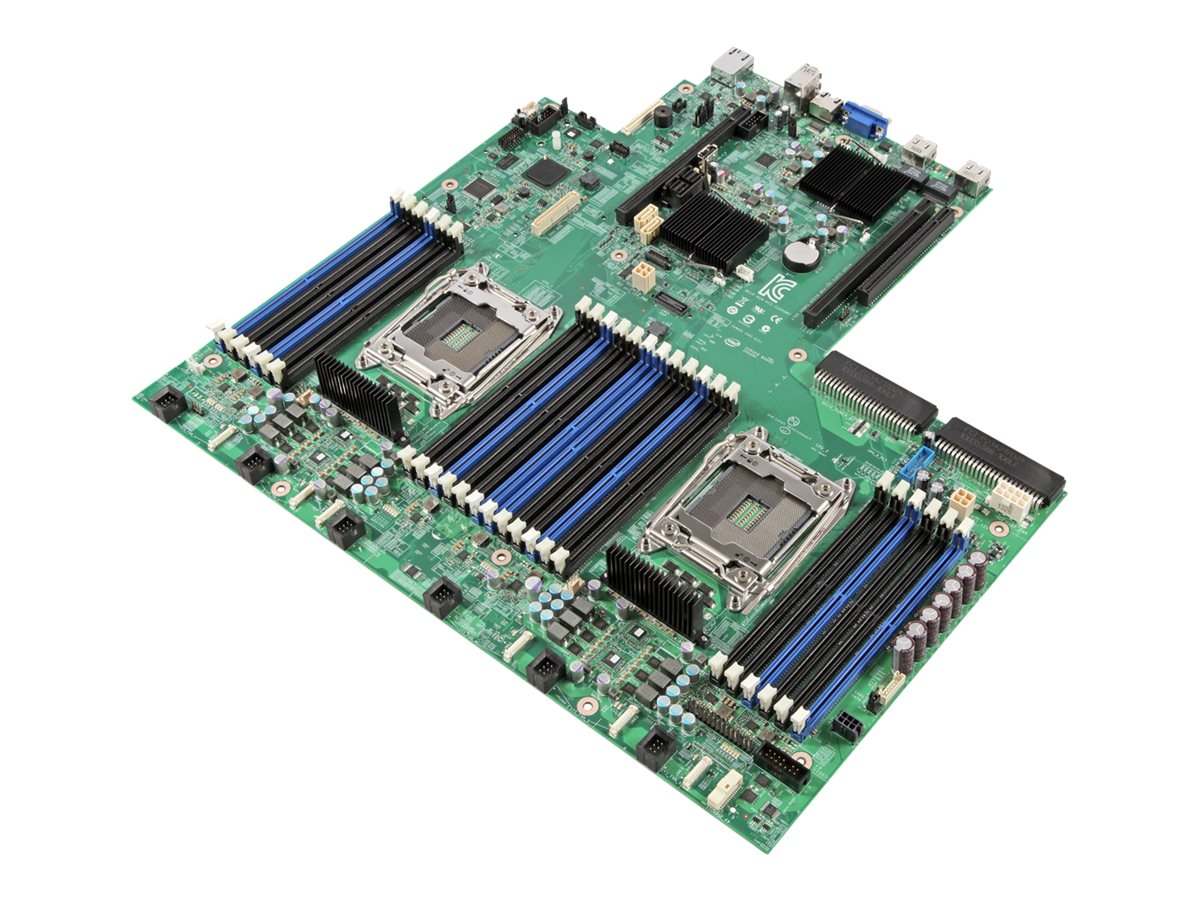

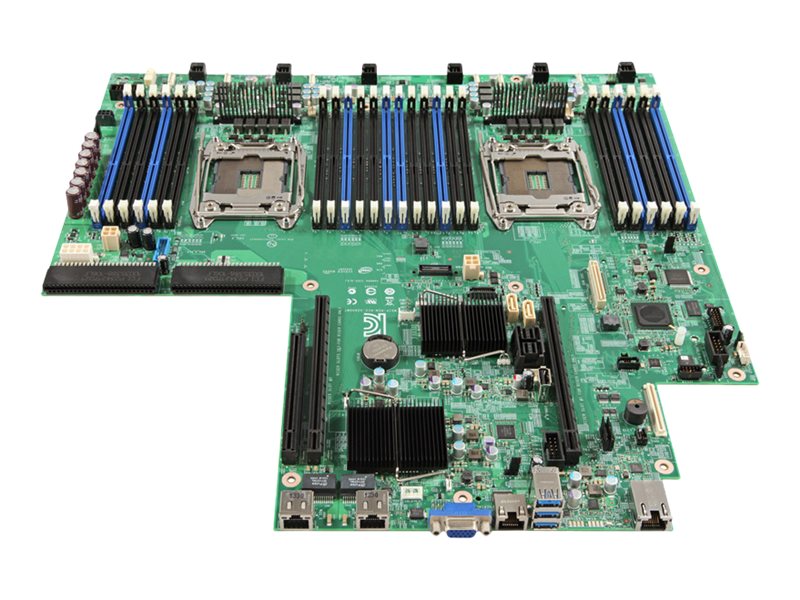

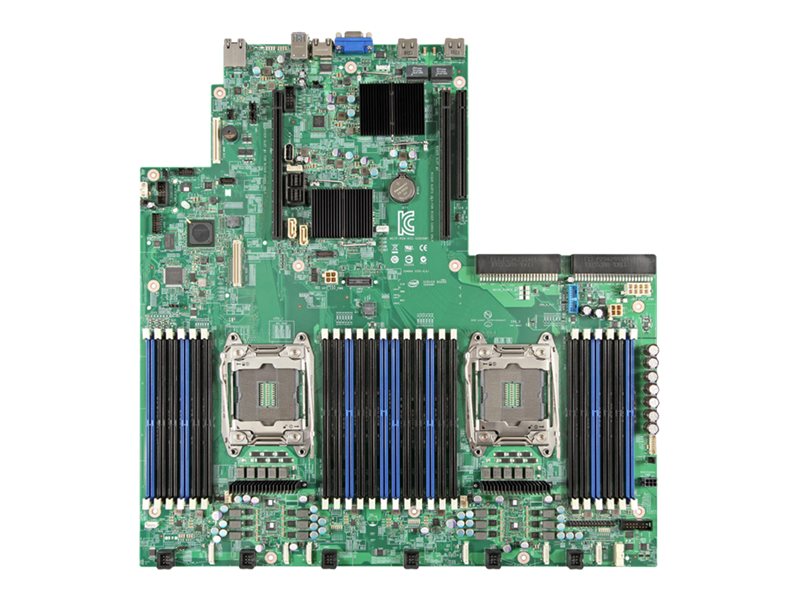

Motherboard - LGA2011-v3 Socket - 2 CPUs supported - C612 Chipset - USB 3.0 - 2 x Gigabit LAN - onboard graphics
| Main Specifications | |
|---|---|
| Product Description | Intel Server Board S2600WT2R - motherboard - LGA2011-v3 Socket - C612 |
| Product Type | Motherboard |
| Chipset Type | Intel C612 |
| Processor Socket | 2 x LGA2011-v3 Socket |
| Compatible Processors | Xeon E5-2600 v3 series (supports CPUs with up to 18 cores, Maximum TDP 145 Watt) |
| Max RAM Size | 1536 GB |
| RAM Supported | 24 DIMM slots - DDR4, ECC, registered, Load-Reduced |
| Storage Ports | 10 x SATA-600 (RAID) |
| USB / FireWire Ports | USB 3.0 + (2 x USB 3.0 + 3 x USB 2.0 via headers) |
| LAN | 2 x Gigabit Ethernet |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | Motherboard |
| Chipset Type | Intel C612 |
| Processor Socket | LGA2011-v3 Socket |
| Max Processors Qty | 2 |
| Compatible Processors | Xeon E5-2600 v3 series (supports CPUs with up to 18 cores, Maximum TDP 145 Watt) |
| Expansion / Connectivity | |
| Expansion Slots | 2 x CPU ¦ 24 x DIMM 288-pin (1.2 V) ¦ 2 x PCIe 3.0 x24 (riser card only) ¦ 1 x PCIe 3.0 x8 (riser card only) |
| Storage Interfaces | SATA-600 -connectors: 10 x 7pin SATA - 10 devices - RAID 0 / RAID 1 / RAID 10 |
| RAID Features | Intel Rapid Storage Technology |
| Interfaces | 1 x VGA ¦ 1 x serial ¦ 2 x LAN (Gigabit Ethernet) ¦ 5 x USB 3.0 ¦ 1 x USB 2.0 |
| Internal Interfaces | 1 x USB 2.0 - Type A ¦ 1 x USB 2.0 - header ¦ 1 x USB 3.0 - header ¦ 1 x VGA - header ¦ 1 x serial - header |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Width | 16.7 in |
| Depth | 17 in |
| Features | |
| BIOS Type | Intel |
| BIOS Features | IPMI 2.0 support |
| LAN | |
| Network Controller | Intel I350 |
| Network Interfaces | 2 x Gigabit Ethernet |
| Supported RAM | |
| Max Size | 1536 GB |
| Technology | DDR4 |
| Bus Clock | 1600 MHz, 1866 MHz, 2133 MHz |
| Supported RAM Integrity Check | ECC |
| Registered or Buffered | Registered, Load-Reduced |
| Features | 8-channel memory architecture |
