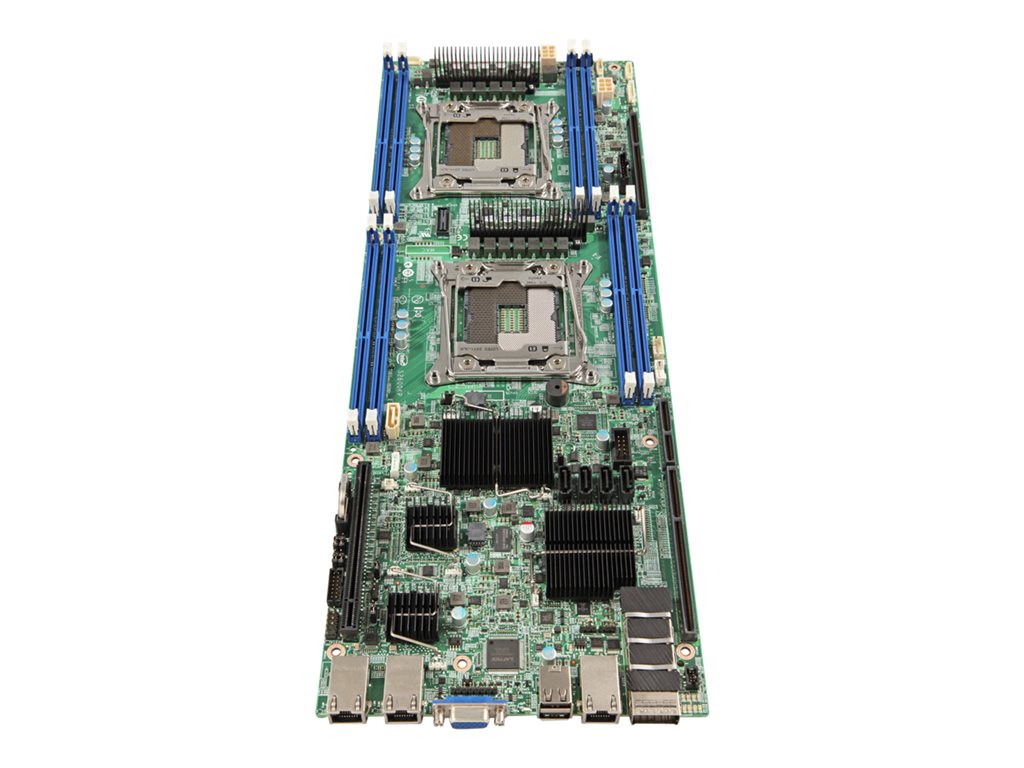

Motherboard - LGA2011-v3 Socket - 2 CPUs supported - C612 Chipset - InfiniBand, 2 x Gigabit LAN - onboard graphics - OEM
| Main Specifications | |
|---|---|
| Product Description | Intel Server Board S2600KPFR - motherboard - LGA2011-v3 Socket - C612 |
| Product Type | Motherboard |
| Chipset Type | Intel C612 |
| Processor Socket | 2 x LGA2011-v3 Socket |
| Compatible Processors | Xeon E5-2600 v4 series (Maximum TDP 160 Watt) |
| Max RAM Size | 512 GB |
| RAM Supported | 8 DIMM slots - DDR4, ECC, registered, Load-Reduced |
| Storage Ports | 5 x SATA-600 (RAID) |
| USB / FireWire Ports | 4 x USB 2.0 |
| LAN | InfiniBand, 2 x Gigabit Ethernet |
| Pricing Type | OEM |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | Motherboard |
| Chipset Type | Intel C612 |
| Processor Socket | LGA2011-v3 Socket |
| Max Processors Qty | 2 |
| Compatible Processors | Xeon E5-2600 v4 series (Maximum TDP 160 Watt) |
| Expansion / Connectivity | |
| Expansion Slots | 2 x CPU ¦ 8 x DIMM 288-pin ¦ 2 x PCIe 3.0 x16 (riser card only) ¦ 1 x PCIe 3.0 x24 (riser card only) |
| Storage Interfaces | SATA-600 -connectors: 5 x 7pin SATA |
| RAID Features | Up to SW RAID 5 (ESRT2 or RSTE) |
| Interfaces | 2 x USB 2.0 ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x management ¦ 1 x InfiniBand - QSFP+ ¦ 1 x VGA |
| Internal Interfaces | 2 x USB 2.0 - header ¦ 1 x serial - header |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Width | 6.4 in |
| Depth | 17.7 in |
| Pricing Type | OEM |
| Features | |
| BIOS Type | Intel |
| BIOS Features | UEFI BIOS, IPMI 2.0 support |
| Hardware Features | InfiniBand FDR Link support |
| LAN | |
| Network Interfaces | InfiniBand, 2 x Gigabit Ethernet |
| Supported RAM | |
| Max Size | 512 GB |
| Technology | DDR4 |
| Bus Clock | 1600 MHz, 1866 MHz, 2133 MHz |
| Supported RAM Integrity Check | ECC |
| Registered or Buffered | Registered, Load-Reduced |
| Features | 8-channel memory architecture, Intel Fast Memory Access, Intel Flex Memory Access |
