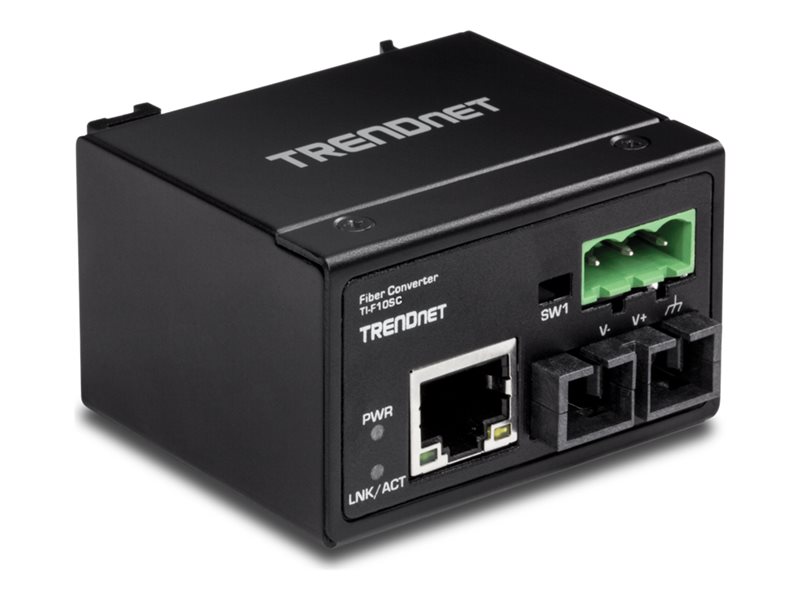

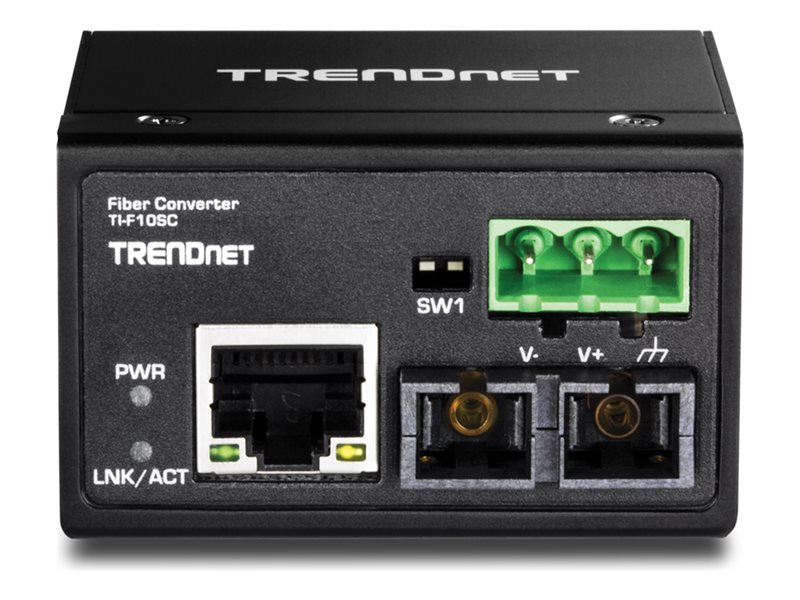

Fiber media converter - 100Mb LAN - 100Base-TX, 10Base-T, 100Base-FX - RJ-45 / SC multi-mode - up to 1.2 miles - 1310 nm - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | TRENDnet TI-F10SC - fiber media converter - 100Mb LAN, 10Mb LAN - TAA Compliant |
| Device Type | Fiber media converter - RJ-45 / SC multi-mode |
| Form Factor | DIN rail mountable |
| Cabling Type | 100Base-TX, 10Base-T, 100Base-FX |
| Optical Wave Length | 1310 nm |
| Data Link Protocol | 100Mb LAN, 10Mb LAN |
| Max Transfer Distance | 1.2 miles |
| Dimensions (WxDxH) | 2.4 in x 2 in x 1.4 in |
| Weight | 3.1 oz |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Fiber media converter |
| Form Factor | DIN rail mountable |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 1000Base-T - RJ-45 female ¦ 1 x Ethernet 100Base-FX - SC multi-mode female x 2 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | DIN-rail mounting kit, wall mounting kit, removable terminal block |
| MTBF | 510,304 hours |
| Compliant Standards | IP40, FCC, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6 |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 100Base-TX, 10Base-T, 100Base-FX |
| Data Link Protocol | 100Mb LAN, 10Mb LAN |
| Optical Wave Length | 1310 nm |
| Max Transfer Distance | 1.2 miles |
| Features | Over-current protection, wall mountable, Link Fault Pass Through function (LFP), built-in DIP switch, half duplex mode, full duplex mode, auto-negotiation, 8KV ESD Protector, 6KV Surge protection |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Power | |
| Power Device | External power adapter |
| Power Consumption Operational | 1.92 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 167 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 2.4 in |
| Depth | 2 in |
| Height | 1.4 in |
| Weight | 3.1 oz |
