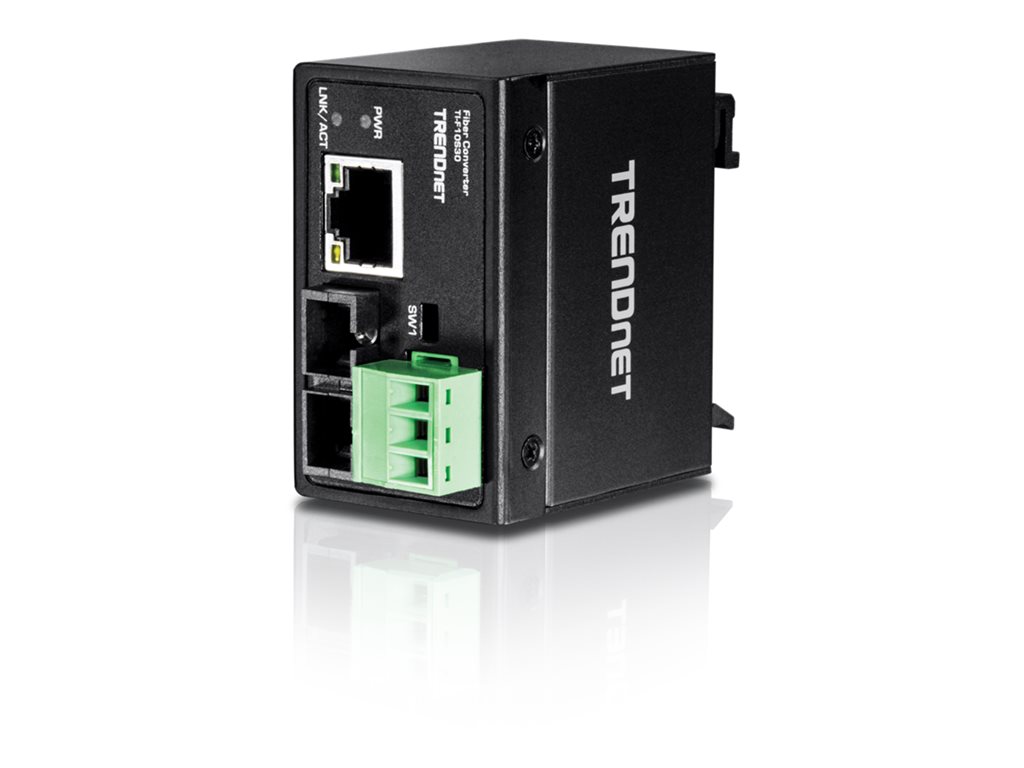

Fiber media converter - 100Mb LAN - 10Base-T, 100Base-FX, 100Base-TX - RJ-45 / SC single-mode - up to 18.6 miles - 1310 nm - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | TRENDnet TI-F10S30 - fiber media converter - 10Mb LAN, 100Mb LAN - TAA Compliant |
| Device Type | Fiber media converter - RJ-45 / SC single-mode |

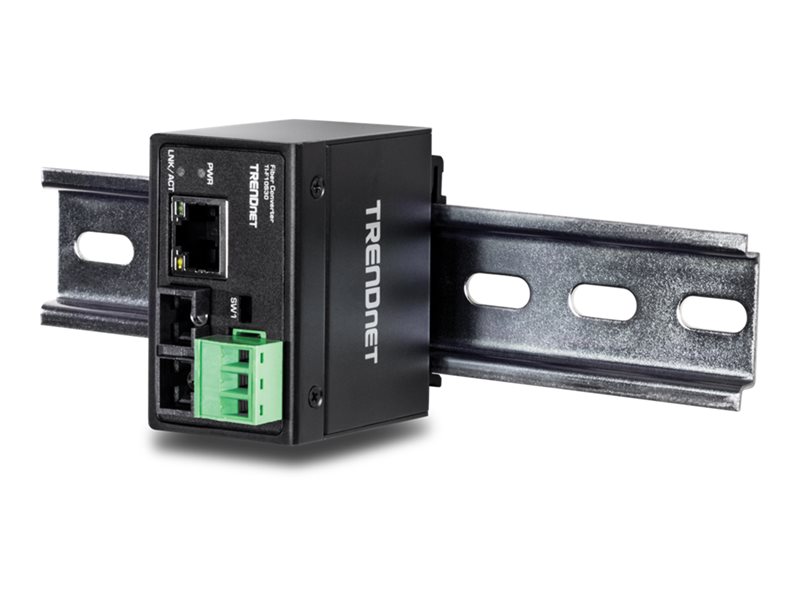

| Form Factor | DIN rail mountable |
| Cabling Type | 10Base-T, 100Base-FX, 100Base-TX |
| Optical Wave Length | 1310 nm |
| Data Link Protocol | 10Mb LAN, 100Mb LAN |
| Max Transfer Distance | 18.6 miles |
| Dimensions (WxDxH) | 2.4 in x 2 in x 1.4 in |
| Weight | 3.17 oz |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Fiber media converter |
| Form Factor | DIN rail mountable |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 1000Base-T - RJ-45 female ¦ 1 x Ethernet 100Base-FX - SC single-mode female x 2 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |

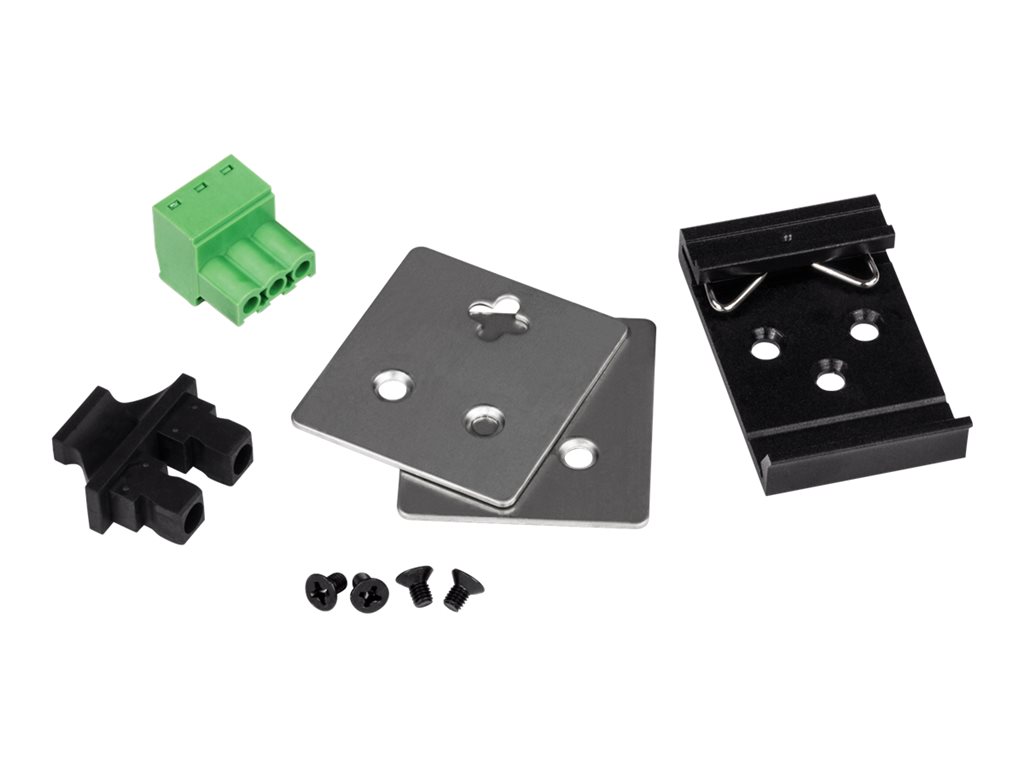

| Included Accessories | DIN-rail mounting kit, wall mounting kit, removable terminal block |
| MTBF | 510,304 hours |
| Compliant Standards | FCC, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, IP40 |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-FX, 100Base-TX |
| Data Link Protocol | 10Mb LAN, 100Mb LAN |
| Optical Wave Length | 1310 nm |
| Max Transfer Distance | 18.6 miles |
| Features | Auto-negotiation, half duplex mode, full duplex mode, Link Fault Pass Through function (LFP), wall mountable, over-current protection, built-in DIP switch, 8KV ESD Protector, 6KV Surge protection |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Power | |
| Power Device | External power adapter |
| Power Consumption Operational | 1.92 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 167 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 2.4 in |
| Depth | 2 in |
| Height | 1.4 in |
| Weight | 3.17 oz |
