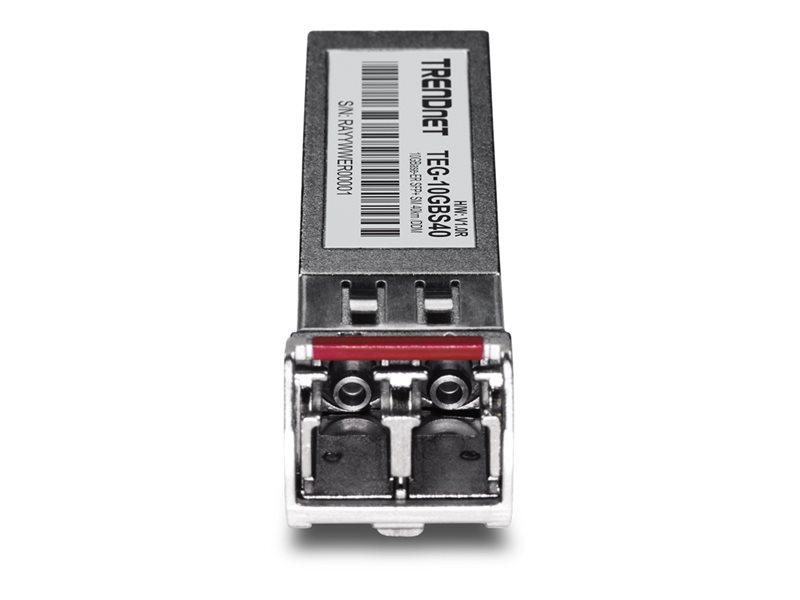

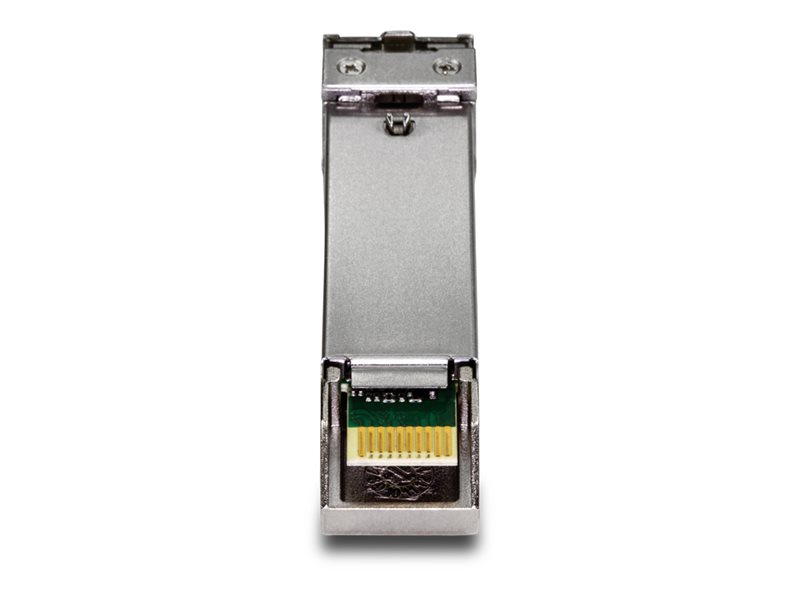

SFP+ transceiver module - 10GbE - 10GBase-ER - LC single-mode - up to 24.9 miles - 1550 nm - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | TRENDnet TEG 10GBS40 - SFP+ transceiver module - 10GbE - TAA Compliant |
| Device Type | SFP+ transceiver module - LC single-mode |
| Form Factor | Plug-in module |
| Cabling Type | 10GBase-ER |
| Data Transfer Rate | 10.3 Gbps |
| Optical Wave Length | 1550 nm |
| Data Link Protocol | 10GbE |
| Max Transfer Distance | 24.9 miles |
| Dimensions (WxDxH) | 0.6 in x 2.2 in x 0.5 in |
| Weight | 0.78 oz |
| TAA Compliant | Yes |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | SFP+ transceiver module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10GBase-ER - LC single-mode female x 2 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | FCC, IEC 60825, MSA SFF-8472, MSA SFF-8431, FDA 21CFR1040.10 |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10GBase-ER |
| Data Link Protocol | 10GbE |
| Data Transfer Rate | 10.3 Gbps |
| Optical Wave Length | 1550 nm |
| Max Transfer Distance | 24.9 miles |
| Features | Hot swap module replacement, Digital Diagnostics Monitoring Interface (DDMI), metal housing |
| Compliant Standards | IEEE 802.3ae |
| Power | |
| Power Consumption Operational | 581 mW |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 0.6 in |
| Depth | 2.2 in |
| Height | 0.5 in |
| Weight | 0.78 oz |
