Power supply (internal) - ATX12V / EPS12V - 80 PLUS Gold - AC 100-240 V - 750 Watt - active PFC
| Main Specifications | |
|---|---|

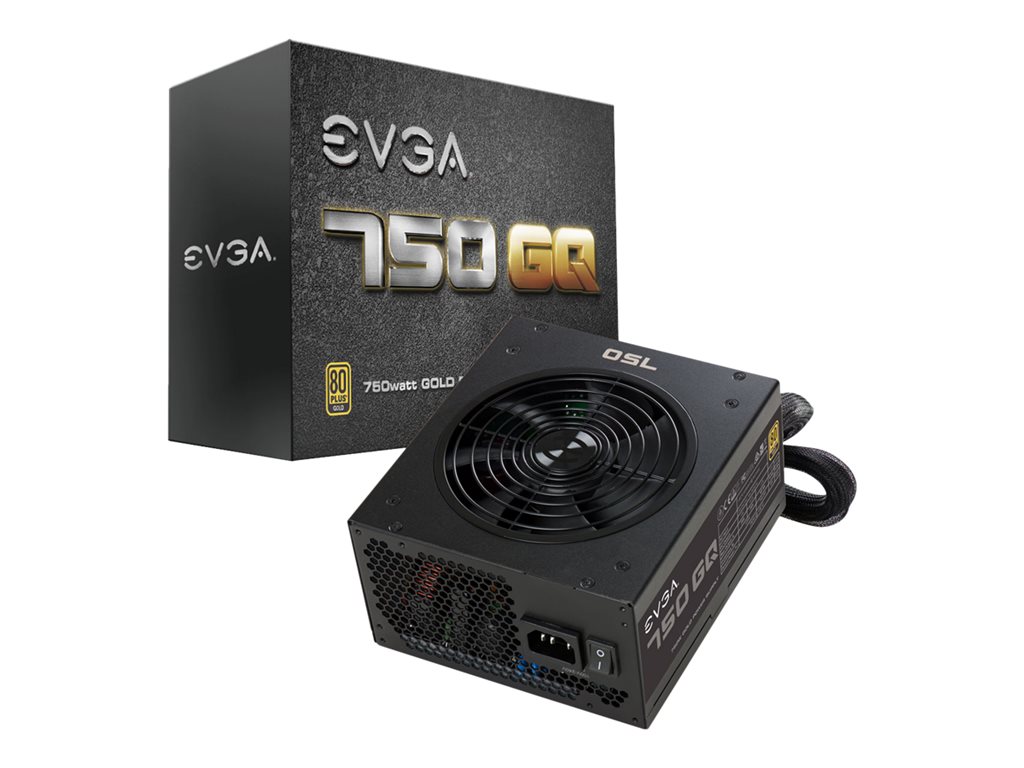

| Product Description | EVGA 750 GQ - power supply - 750 watt |
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V / EPS12V |
| 80 PLUS Certification | 80 PLUS Gold |
| Weight | 8 lbs |
| Input Voltage | AC 100-240 V |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 750 watt |
| Output Current | +3.3V - 24 A ¦ +5V - 24 A ¦ +12V - 62.4 A ¦ +5VSB - 3 A ¦ -12V - 0.5 A |

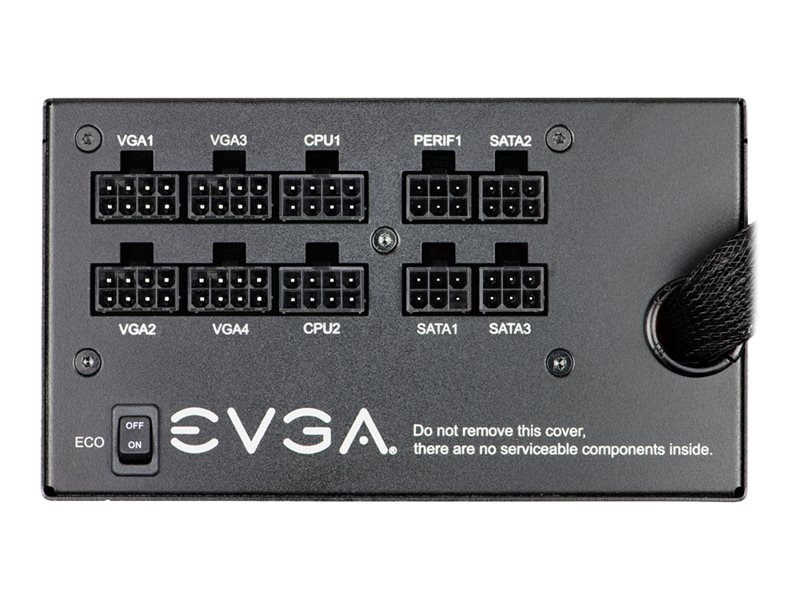

| Output connectors | 1 x power 24 pin ATX ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 6 x 8 pin PCI Express power with detachable 2 pin section ¦ 9 x 15 pin Serial ATA power ¦ 3 x 4 pin internal power ¦ 2 x 4 pin mini-power connector |
| Cooling System | 135 mm fan |
| Dimensions (WxDxH) | 5.9 in x 6.5 in x 3.3 in |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V / EPS12V |
| PSU Form Factor | ATX |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 5 years |
| Miscellaneous | |

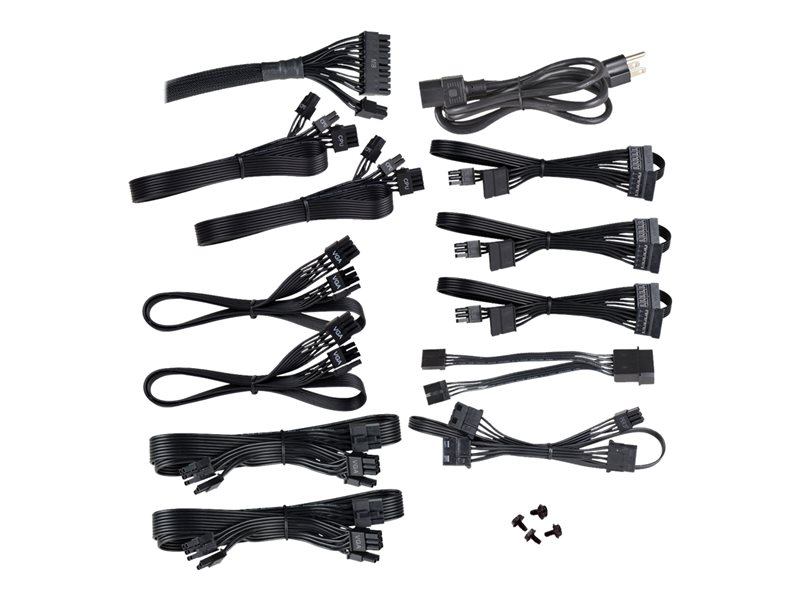

| Cables Included | Power cable - external - 5 ft |
| MTBF | 100,000 hour(s) |
| Cooling System | 135 mm fan |
| Features | Overheat protection, solid capacitors, overcurrent protection, overvoltage protection, overpower protection, SLI ready, CrossFire ready, undervoltage protection, short-circuit protection, single 12V rail, active CLAMP circuitry, Eco-Mode, Intel 4th-gen CPU (Haswell) compatible, fluid dynamic bearing cooling fan |
| Compliant Standards | TUV, CB, FCC, RoHS, WEEE, cTUVus, ErP 2013, RCM |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Power Device | |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 6 x 8 pin PCI Express power with detachable 2 pin section ¦ 9 x 15 pin Serial ATA power ¦ 3 x 4 pin internal power ¦ 2 x 4 pin mini-power connector |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 750 watt |
| Output Current | +3.3V - 24 A ¦ +5V - 24 A ¦ +12V - 62.4 A ¦ +5VSB - 3 A ¦ -12V - 0.5 A |
| Efficiency | 90% (115VAC) / 92% (220-240VAC) |
| 80 PLUS Certification | 80 PLUS Gold |
| Dimensions & Weight | |
| Width | 5.9 in |
| Depth | 6.5 in |
| Height | 3.3 in |
| Weight | 8 lbs |
