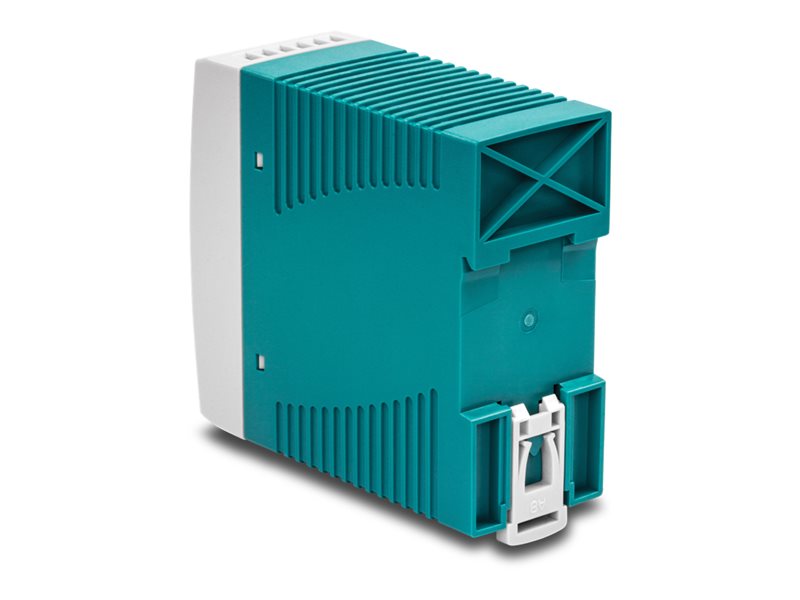

Power supply (DIN rail mountable) - AC 100-240 V - 60 Watt - TAA Compliant - for TRENDnet TI-F11SFP, TI-G160i-M, TI-G50, TI-G62, TI-G80
| Main Specifications | |
|---|---|
| Product Description | TRENDnet TI-M6024 - power supply - 60 Watt - TAA Compliant |
| Device Type | Power supply - DIN rail mountable |
| Weight | 10.58 oz |
| Input Voltage | AC 100-240 V |
| Output Voltage | 24 V |
| Power Capacity | 60 Watt |
| TAA Compliant | Yes |
| Dimensions (WxDxH) | 1.6 in x 3.9 in x 3.5 in |
| Manufacturer Warranty | 1-year warranty |
| Designed For | TRENDnet TI-F11SFP, TI-G160i-M, TI-G50, TI-G62, TI-G80 |
| General | |
| Device Type | Power supply - DIN rail mountable |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| MTBF | 2,992,000 hours |
| Features | Overload protection, short-circuit protection, overvoltage protection |
| Compliant Standards | UL 60950-1, UL 508, CB, TUV, EN 60950-1, EN 55011, EN55022, CISPR 22, EN 61204-3, EN61000-3-2, EN61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, EN55024, EN 61000-6-2, IEC 60068-2-6 |
| TAA Compliant | Yes |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 158 °F |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Power Device | |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50/60 Hz |
| Output Voltage | 24 V |
| Power Capacity | 60 Watt |
| Dimensions & Weight | |
| Width | 1.6 in |
| Depth | 3.9 in |
| Height | 3.5 in |
| Weight | 10.58 oz |
| Compatibility Information | |
| Designed For | TRENDnet TI-F11SFP, TI-G160i-M, TI-G50, TI-G62, TI-G80 |
