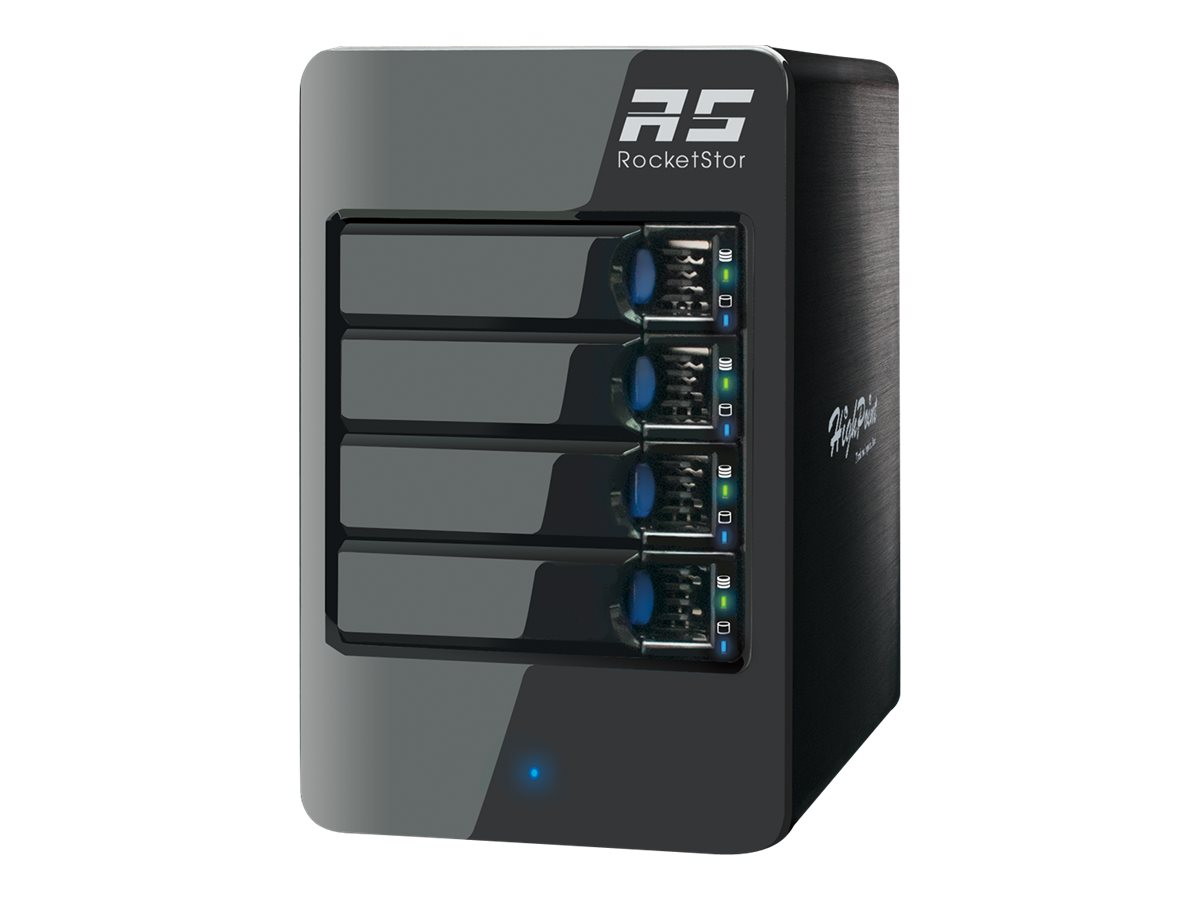

Storage enclosure - 4 bays (SATA-600 / SAS-2)
| Main Specifications | |
|---|---|
| Product Description | HighPoint RocketStor 6414S - storage enclosure |
| Device Type | Storage enclosure |
| Max Supported Capacity | 32 TB |
| Installed Devices / Modules Qty | 4 (max) |
| Supported Drives | SATA-600 / SAS-2 |
| Hard Drive | No HDD |
| Power | AC 120/230 V - 50/60 Hz |
| Dimensions (WxDxH) | 5.3 in x 8.7 in x 8.7 in |
| Weight | 9.92 lbs |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Storage enclosure |
| Expansion / Connectivity | |
| Expansion Bays | 4 (total) / 4 (free) x hot-swap - 2.5" / 3.5" shared |
| Interfaces | 1 x SAS 6Gb/s - 26 pin 4x Shielded Mini MultiLane SAS (SFF-8088) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 1 year |
| Miscellaneous | |
| Features | Security lock slot (cable lock sold separately), audible alarm, on/off switch, LED indicator, built-in cooling fan, robust construction |
| Cables Included | 1 x mini SAS cable |
| Compliant Standards | FCC, RoHS |
| Processor | |
| CPU | No CPU |
| Storage | |
| Max Supported Capacity | 32 TB |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V - 50/60 Hz |
| Power Provided | 250 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 8 - 90% (non-condensing) |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 5.3 in |
| Depth | 8.7 in |
| Height | 8.7 in |
| Weight | 9.92 lbs |
| Chassis | |
| Supported Devices / Modules Qty | 4 |
| Supported Drives | SATA-600 / SAS-2 |
