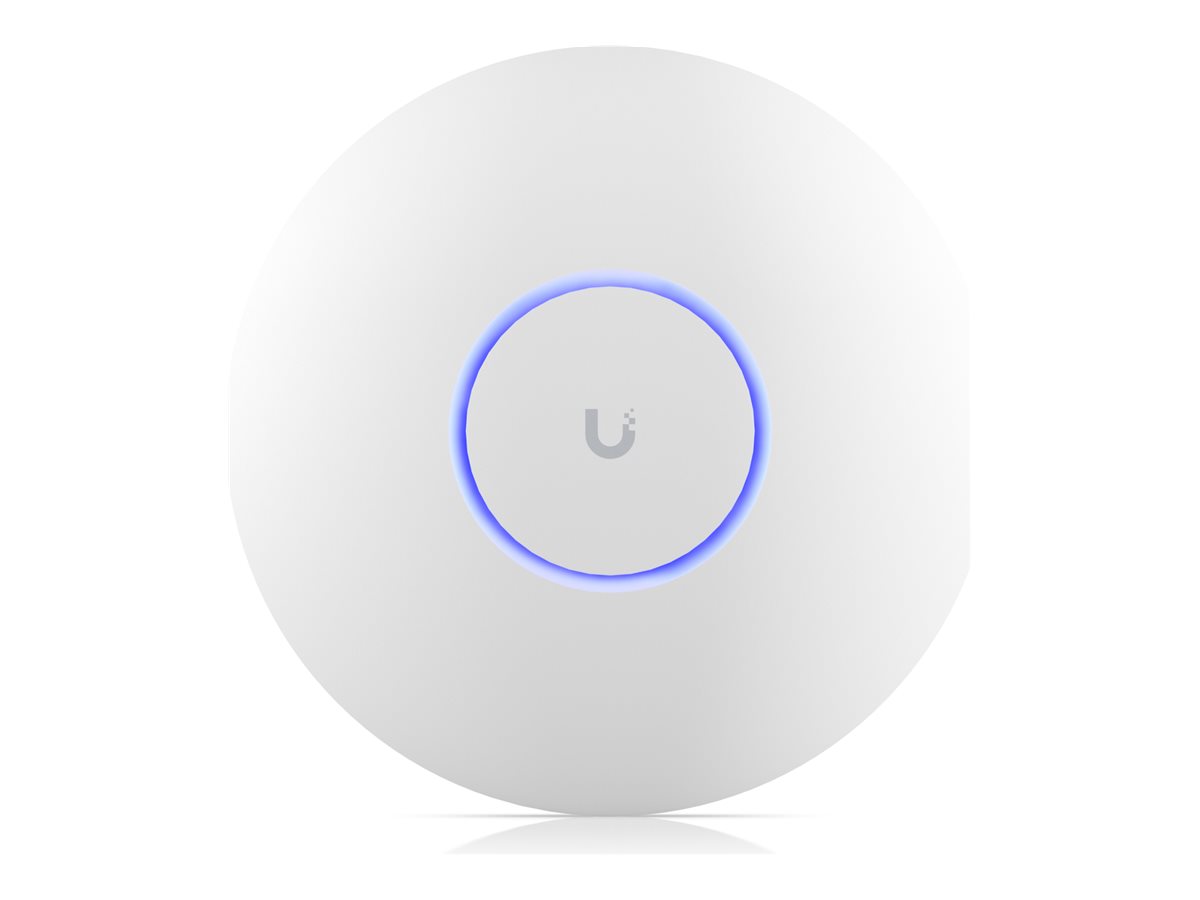

Wireless access point - Wi-Fi 5 - 2.4 GHz, 5 GHz - wall / ceiling mountable - for P/N: UACC-AP-AM
| Main Specifications | |
|---|---|
| Product Description | Ubiquiti UniFi AC Pro - wireless access point - Wi-Fi 5 |
| Device Type | Wireless access point |
| Form Factor | Wall / ceiling mountable |
| Data Link Protocol | IEEE 802.11ac, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Channel bandwidth: 20 / 40 / 80MHz ¦ Maximum data rate (5 GHz): 1.3 Gbps ¦ Maximum data rate (2.4 GHz): 450 Mbps |
| Capacity | Spatial streams: 6 ¦ Maximum number of clients: 250+ ¦ BSSIDs per radio: 8 |
| Included Accessories | PoE injector |
| Power Over Ethernet (PoE) Supported | PoE |
| Dimensions (WxDxH) | 7.7 in x 7.7 in x 1.4 in |
| Weight | 12.34 oz |
| Designed For | P/N: UACC-AP-AM |
| General | |
| Device Type | Wireless access point |
| Width | 7.7 in |
| Depth | 7.7 in |
| Height | 1.4 in |
| Weight | 12.34 oz |
| Expansion / Connectivity | |
| Interfaces | 1 x 1000Base-T - RJ-45 ¦ 1 x 1000Base-T (PoE input) - RJ-45 ¦ 1 x USB 2.0 |
| Miscellaneous | |
| Included Accessories | PoE injector |
| Compliant Standards | NDAA, FCC, IC |
| Networking | |
| Form Factor | Wall / ceiling mountable |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 1.3 Gbps |
| Data Link Protocol | IEEE 802.11ac, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency Band | 2.4 GHz, 5 GHz |
| Max Coverage Area | Up to 140 sq.m |
| Performance | Channel bandwidth: 20 / 40 / 80MHz ¦ Maximum data rate (5 GHz): 1.3 Gbps ¦ Maximum data rate (2.4 GHz): 450 Mbps |
| Capacity | Spatial streams: 6 ¦ Maximum number of clients: 250+ ¦ BSSIDs per radio: 8 |
| Status Indicators | Status |
| Features | 3x3 MIMO technology, locking notch, band steering, Wireless Mesh support, advanced radio management, HotSpot 2.0, client isolation, custom branding landing page support, external portal server support, hotspot captive portal, isolated guest network support, password authentication, payment-based authentication, Private Pre-Shared Key (PPSK), voucher authentication, WiFi schedules, Wi-Fi speed limiting, dynamic RADIUS-assigned VLAN, reset button, polycarbonate enclosure |
| Encryption Algorithm | TLS |
| Authentication Method | RADIUS |
| Compliant Standards | IEEE 802.11v, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11k, IEEE 802.11r |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE |
| Power Device | External power adapter / power injector |
| Installed Qty | 1 |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 158 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Antenna | |
| Antenna | Internal |
| Gain Level | 3 dBi |
| Compatibility Information | |
| Designed For | P/N: UACC-AP-AM |
