Serial adapter - RS-232 - RS-232, RS-442
| Main Specifications | |
|---|---|

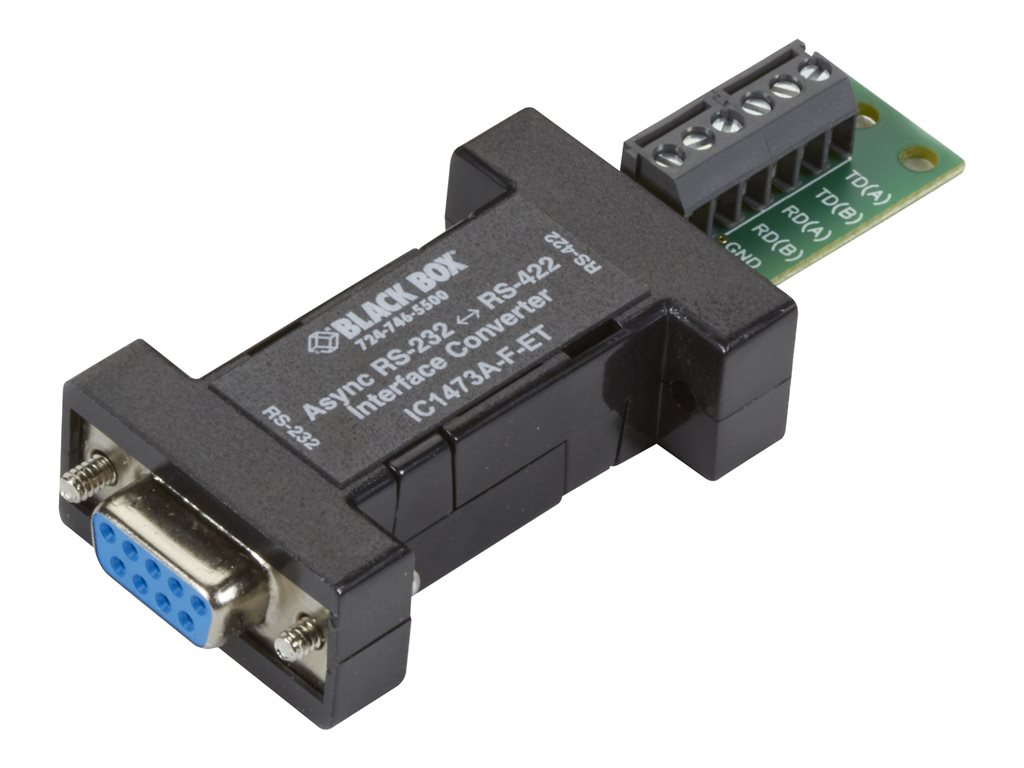

| Product Description | Black Box Async RS-232 to RS-422 Interface Converter - serial adapter - RS-232 |
| Device Type | Serial adapter |
| Form Factor | External |
| Interface (Bus) Type | Serial RS-232 |
| Dimensions (WxDxH) | 3.5 in x 1.3 in x 0.7 in |
| Data Link Protocol | RS-232, RS-442 |
| Data Transfer Rate | 115.2 Kbps |
| General | |
| Device Type | Serial adapter |
| Form Factor | External |
| Interface (Bus) Type | Serial RS-232 |
| Expansion / Connectivity | |
| Interfaces | 1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x RS-422 - terminal block |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | RS-232, RS-442 |
| Data Transfer Rate | 115.2 Kbps |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 176 °F |
| Dimensions & Weight | |
| Width | 3.5 in |
| Depth | 1.3 in |
| Height | 0.7 in |
