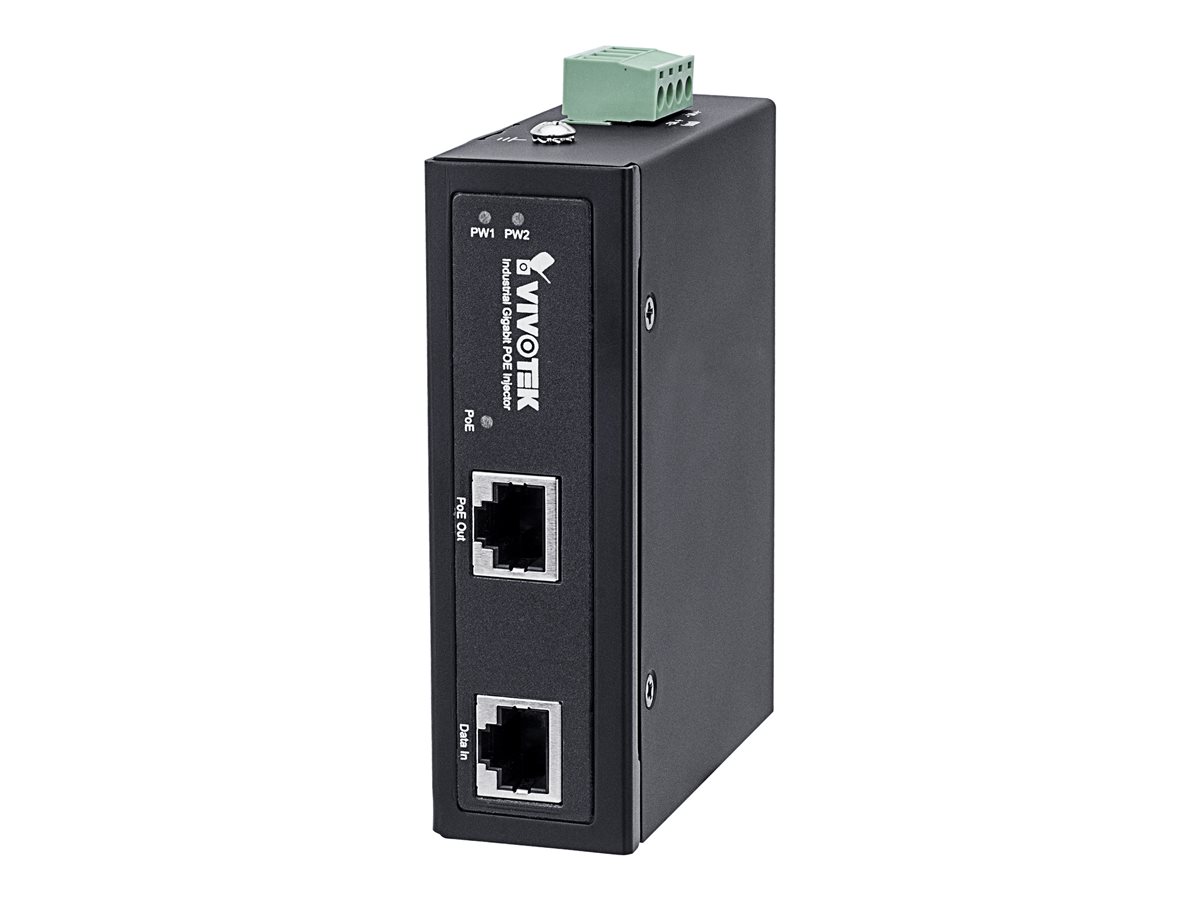

PoE injector - 30 Watt
| Main Specifications | |
|---|---|
| Product Description | VIVOTEK AW-IHT-0100 - PoE injector - 30 watt |
| Device Type | PoE injector - external |
| Power Over Ethernet (PoE) | PoE+ |
| Weight | 4.94 oz |
| Output Voltage | 56 V |
| Power Capacity | 30 watt |
| Output connectors | 1 x RJ-45 |
| Included Accessories | Mounting kit |
| Dimensions (WxDxH) | 1.3 in x 4.1 in x 3.2 in |
| General | |
| Device Type | PoE injector - external |
| Power Over Ethernet (PoE) | PoE+ (IEEE 802.3at) |
| Expansion / Connectivity | |
| Interfaces | 1 x Gigabit LAN - RJ-45 |
| Miscellaneous | |
| Included Accessories | Mounting kit |
| Features | Rugged, DIN rail mountable, wall mountable, LED indicators, overcurrent protection, short-circuit protection |
| Compliant Standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, C-Tick, FCC, VCCI, LVD, IP30 |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 167 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Power Device | |
| Power Consumption Operational | 32 watt |
| Power Output Connectors Details | 1 x RJ-45 |
| Output Voltage | 56 V |
| Power Capacity | 30 watt |
| Dimensions & Weight | |
| Width | 1.3 in |
| Depth | 4.1 in |
| Height | 3.2 in |
| Weight | 4.94 oz |
