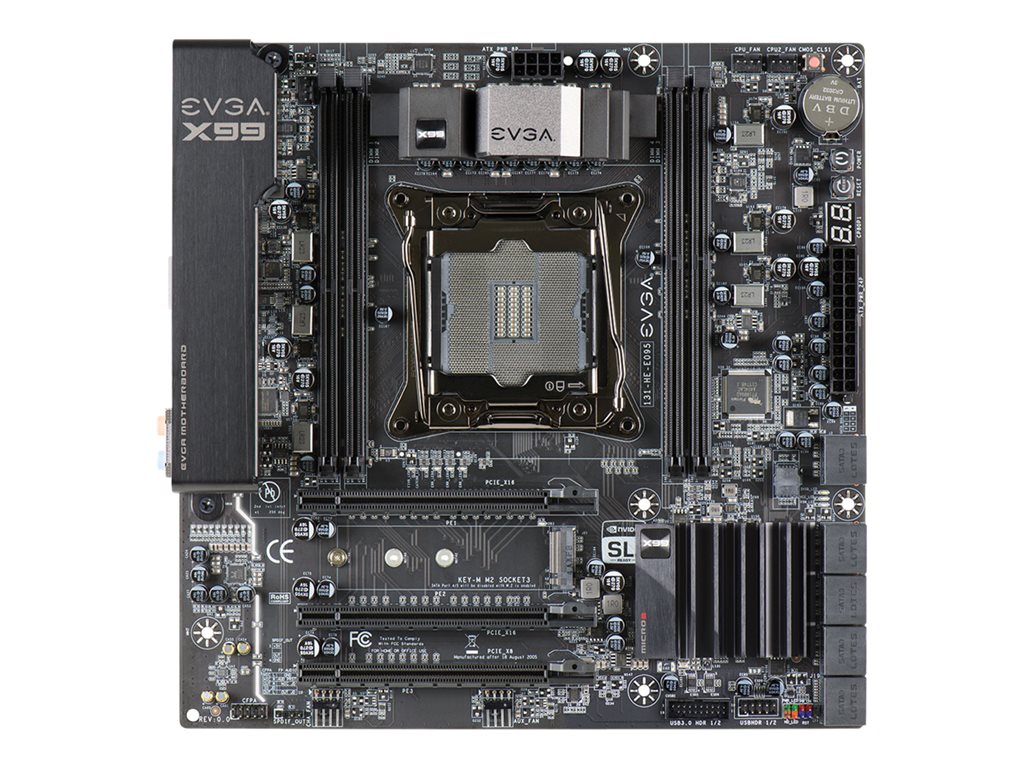

Motherboard - micro ATX - LGA2011-v3 Socket - X99 Chipset - USB 3.1 - Gigabit LAN - HD Audio (8-channel)
| Main Specifications | |
|---|---|
| Product Description | EVGA X99 Micro2 - motherboard - micro ATX - LGA2011-v3 Socket - X99 |
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel X99 Express |
| Processor Socket | 1 x LGA2011-v3 Socket |
| Compatible Processors | Core i7 |
| Max RAM Size | 64 GB |
| RAM Supported | 4 DIMM slots - DDR4, non-ECC, unbuffered |
| Storage Ports | 10 x SATA-600 (RAID), 1 x M.2 |
| USB / FireWire Ports | 1 x USB-C + 4 x USB 3.0 + 4 x USB 2.0 + (2 x USB 3.0 + 2 x USB 2.0 via headers) |
| Audio | HD Audio (8-channel) |
| LAN | Gigabit Ethernet |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel X99 Express |
| Processor Socket | LGA2011-v3 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | Core i7 |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 3.0 x16 ¦ 1 x PCIe 3.0 x8 |
| Storage Interfaces | SATA-600 -connectors: 10 x 7pin SATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 / JBOD |
| RAID Features | Software RAID 0/ 1 / 10 / 5 |
| Interfaces | 4 x USB 3.0 ¦ 4 x USB 2.0 ¦ 1 x USB-C ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-out (side surround)/line-in - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack |
| Internal Interfaces | 2 x USB 2.0 - header ¦ 2 x USB 3.0 - header ¦ 1 x audio - header ¦ 1 x SPDIF out - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | I/O back plate, I/O back cover |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Drivers & utilities, EVGA E-LEET |
| Width | 9.6 in |
| Depth | 9.6 in |
| Audio | |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC1150 |
| Features | |
| BIOS Type | AMI |
| BIOS Features | ACPI support, UEFI BIOS |
| Hardware Monitoring | CPU core temperature |
| Hardware Features | NVIDIA 3-way SLI Technology Support, NVIDIA 2-way SLI Technology Support, 6 Phase Power Design, AMD 3-way CrossFireX technology support, 8 Layer PCB, Clear CMOS Button |
| LAN | |
| Network Interfaces | Gigabit Ethernet |
| Supported RAM | |
| Max Size | 64 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 3200 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Quad channel memory architecture |
