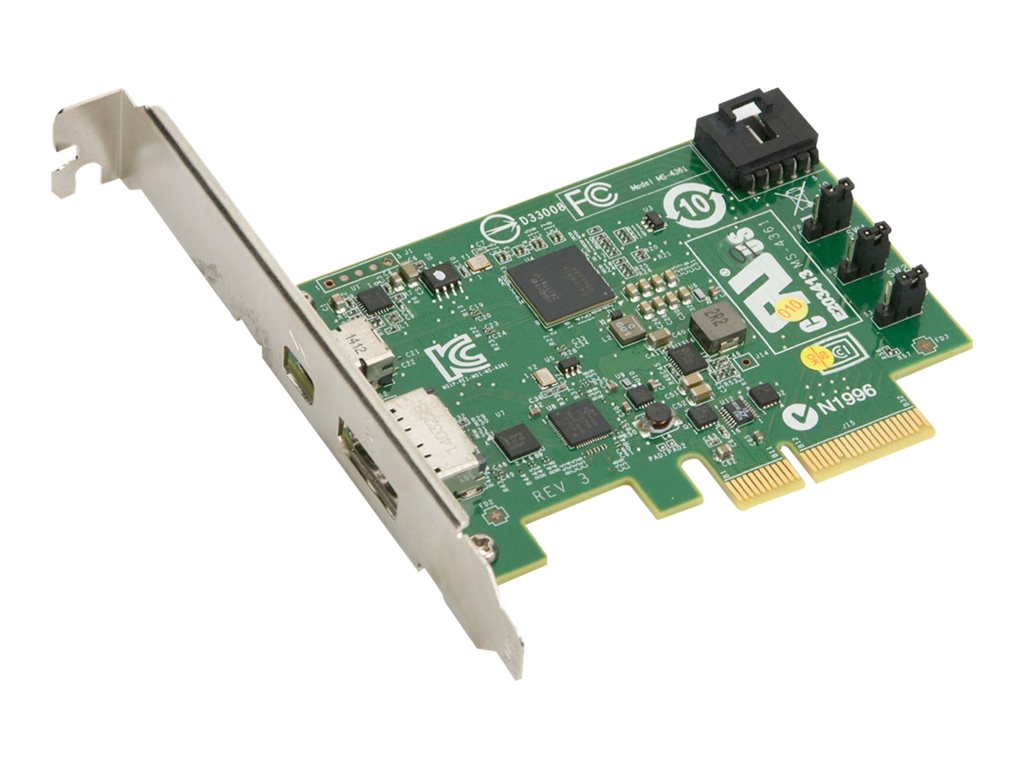

Thunderbolt adapter - PCIe 2.0 x4 low profile - Thunderbolt x 1
| Main Specifications | |
|---|---|
| Product Description | Supermicro AOC-TBT-DSL5320 - Thunderbolt adapter - PCIe 2.0 x4 - Thunderbolt x 1 |
| Device Type | Thunderbolt adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 2.0 x4 |
| Ports | Thunderbolt x 1 |
| Dimensions (WxDxH) | 3.7 in x 3 in |
| Cabling Type | Thunderbolt |
| Data Transfer Rate | 20 Gbps |
| Processor | 1 x Intel DSL5320 |
| System Requirements | Microsoft Windows 7 (32/64 bits), Windows 8.1 64-bit Edition |
| General | |
| Device Type | Thunderbolt adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 2.0 x4 |
| Expansion / Connectivity | |
| Interfaces | 1 x Thunderbolt - Mini DisplayPort ¦ 1 x DisplayPort input - 20 pin DisplayPort |
| Miscellaneous | |
| Compliant Standards | RoHS |
| Networking | |
| Ports | Thunderbolt x 1 |
| Cabling Type | Thunderbolt |
| Data Transfer Rate | 20 Gbps |
| Power | |
| Power Consumption Operational | 4.1 Watt |
| Software / System Requirements | |
| OS Required | Microsoft Windows 7 (32/64 bits), Windows 8.1 64-bit Edition |
| Processor / Memory | |
| Processor | 1 x Intel DSL5320 |
| Dimensions & Weight | |
| Depth | 3.7 in |
| Height | 3 in |
