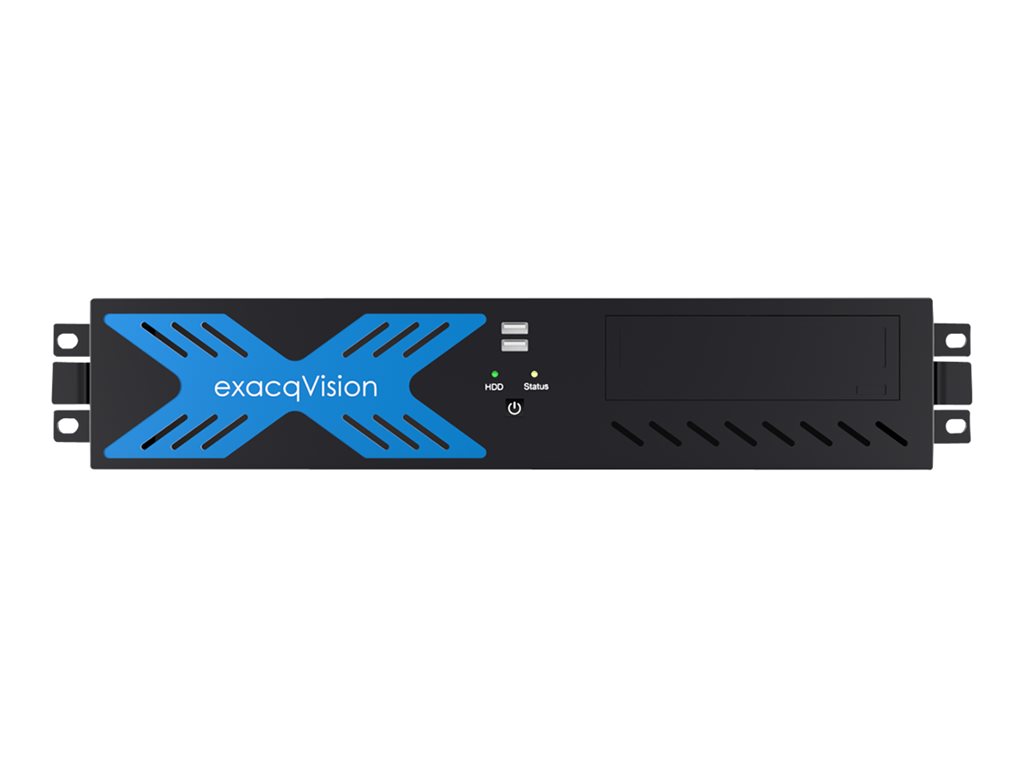

Standalone DVR - 16 channels 4 TB - networked - 2U - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | exacqVision A-Series 1608-04T-R2AL - standalone DVR - 16 channels |
| Device Type | Standalone DVR - 16 channels - networked - rack-mountable - 2U |
| IP Cameras Supported | 8 |
| Frame Rate | 960 fps (NTSC), 800 fps (PAL) (record) / 900 fps (playback) |
| Compression Format | MJPEG, H.264 |
| TV System | NTSC/PAL |
| Hard Drive | 4 TB |
| Hard Drive(s) Supported | Quantity: 3 - total capacity: 30 TB |
| Voltage | 120 / 240 V |
| Dimensions (WxDxH) | 16.8 in x 21.5 in x 3.5 in |
| Weight | 27.12 lbs |
| Manufacturer Warranty | 3 years |
| General | |
| Device Type | Standalone DVR - rack-mountable - 2U |
| Video Channels | 16 |
| IP Cameras Supported | 8 |
| Audio Channels | 16 |
| TV System | NTSC/PAL |
| Compression Format | MJPEG, H.264 |
| Package Content | DVR, keyboard, mouse |
| OS Provided | Ubuntu 20.04 |
| Software Included (Y) | 8 IP licenses, exacqVision Professional client, exacqVision Professional server |
| Compliant Standards | FCC, cULus |
| Warranty | 3 years |
| Networking | |
| Network Interfaces | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Power | |
| Voltage | 120 / 240 V |
| Power Consumption | 110 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 40.1 °F |
| Max Operating Temperature | 95 °F |
| Hard Drive | |
| Quantity Supported | 3 |
| Capacity | 4 TB |
| Supported Max Total Capacity | 30 TB |
| Connections | |
| Video Output Ports | HDMI x 1, DVI-I x 1, VGA x 1, DisplayPort x 1 |
| Alarm Ports | Alarm input x 16, alarm output x 16 |
| Network Port | 10/100/1000Base-T x 2 |
| Other Ports | USB 2.0 x 4, serial RS-485 x 1, USB 3.0 x 2 |
| Dimensions & Weight | |
| Width | 16.8 in |
| Depth | 21.5 in |
| Height | 3.5 in |
| Weight | 27.12 lbs |
| Security DVR | |
| Frame Rate (Playback) | 900 fps |
| Frame Rate (Record) | 960 fps (NTSC), 800 fps (PAL) |
| Networked | Yes |
| Features | 120GB SSD OS storage, recording data rate up to 450 Mbps |
| Video Server | |
| CPU | Intel Core i3 |
| RAM | 8 GB |
