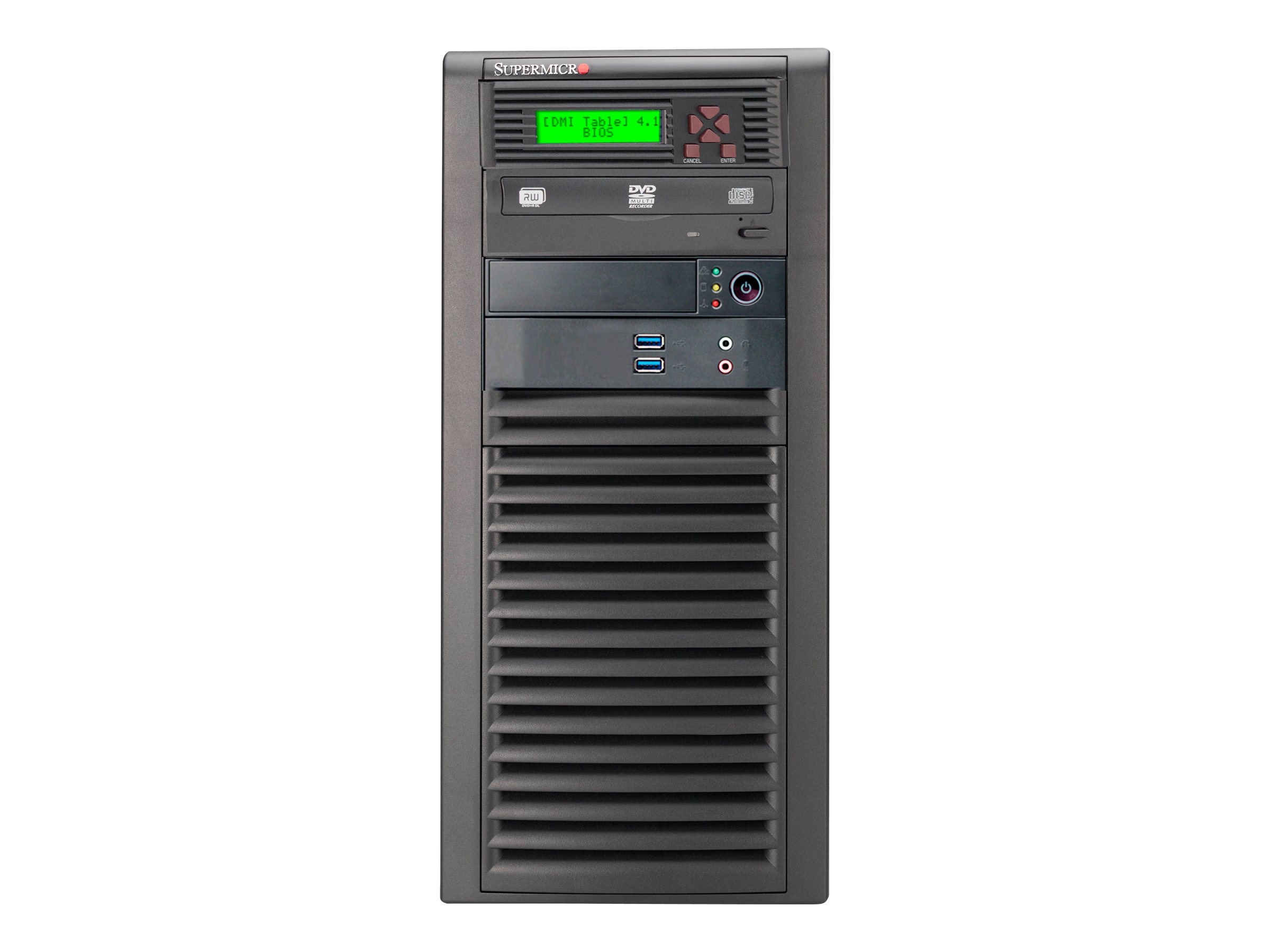

Tower - extended ATX 900 Watt - black - USB/Audio
| Main Specifications | |
|---|---|
| Product Description | Supermicro SC732 D3-903B - tower - extended ATX |
| Product Type | System cabinet |
| Form Factor | Tower |
| Color | Black |
| Built-in Devices | LED panel |
| I/O Connectors | 2 x USB 3.0 ¦ 1 x audio line-in ¦ 1 x audio line-out |
| Supported Motherboards | ATX, microATX, Extended ATX |
| System Cabinet Features | Screwless drive bays, rotational drive cage, 90° rotatable HDD cage design |
| Power Device | Power supply 900 watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 7.6 in x 20.7 in x 16.7 in |
| Weight | 30 lbs |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Form Factor | Tower |
| Max Mainboard Size | Extended ATX |
| Supported Motherboards | ATX, microATX, Extended ATX |
| Internal Bays Qty | 4 |
| Front Accessible Bays Qty | 3 |
| Built-in Devices | LED panel |
| Color | Black |
| Cooling System | Rear: 120 mm fan x 1 / exhaust / 21dB Whisper-Quiet Operation |
| System Cabinet Features | Screwless drive bays, rotational drive cage, 90° rotatable HDD cage design |
| Expansion / Connectivity | |
| Expansion Bays | 2 (total) / 2 (free) x front accessible - 5.25" ¦ 1 (total) / 1 (free) x front accessible - 3.5" ¦ 4 (total) / 4 (free) x internal - 3.5" |
| Expansion Slots | 7 x full-length, full-height |
| Interfaces | 2 x USB 3.0 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts - 1 year ¦ Limited warranty - labor - 3 years |
| Miscellaneous | |
| Compliant Standards | UL, TUV, cUL, EN 60950, IEC 60950, CCC, FCC |
| Power | |
| Power Device | Power supply |
| Installed Qty | 1 |
| Max Supported Qty | 1 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 900 watt |
| 80 PLUS Certification | 80 PLUS Gold |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 8 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 7.6 in |
| Depth | 20.7 in |
| Height | 16.7 in |
| Weight | 30 lbs |
