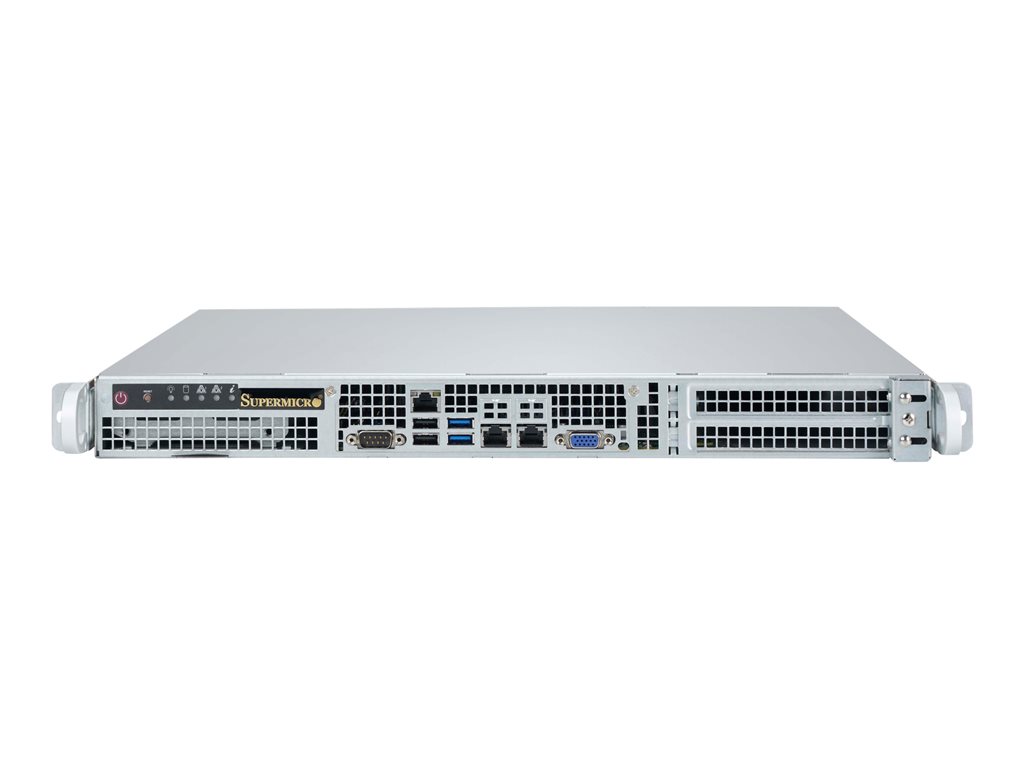

Rack-mountable 1U - extended ATX 500 Watt
| Main Specifications | |
|---|---|
| Product Description | Supermicro SC515 505 - rack-mountable - 1U - extended ATX |
| Product Type | System cabinet |
| Form Factor | Rack-mountable - 1U |
| Built-in Devices | LED panel |
| Supported Motherboards | microATX, Extended ATX |
| Power Device | Power supply 500 watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 17.2 in x 16.9 in x 1.7 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Form Factor | Rack-mountable - 1U |
| Max Mainboard Size | Extended ATX |
| Supported Motherboards | microATX, Extended ATX |
| Internal Bays Qty | 1 |
| Built-in Devices | LED panel |
| Cooling System | Internal: 40 x 40 x 56 mm fan x 4 / Pulse-width modulation (PWM) support ¦ Fan mount x 2 |
| Expansion / Connectivity | |
| Expansion Bays | Internal - 4x2.5"/ 1x3.5" shared |
| Expansion Slots | 2 x full-height |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts - 1 year ¦ Limited warranty - labor - 3 years |
| Miscellaneous | |
| Included Accessories | Mounting rails |
| Compliant Standards | FCC Class B certified, TUV, BSMI, CB, CCC, CE/EMC |
| Power | |
| Power Device | Power supply |
| Installed Qty | 1 |
| Max Supported Qty | 1 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 500 watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 8 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 17.2 in |
| Depth | 16.9 in |
| Height | 1.7 in |
