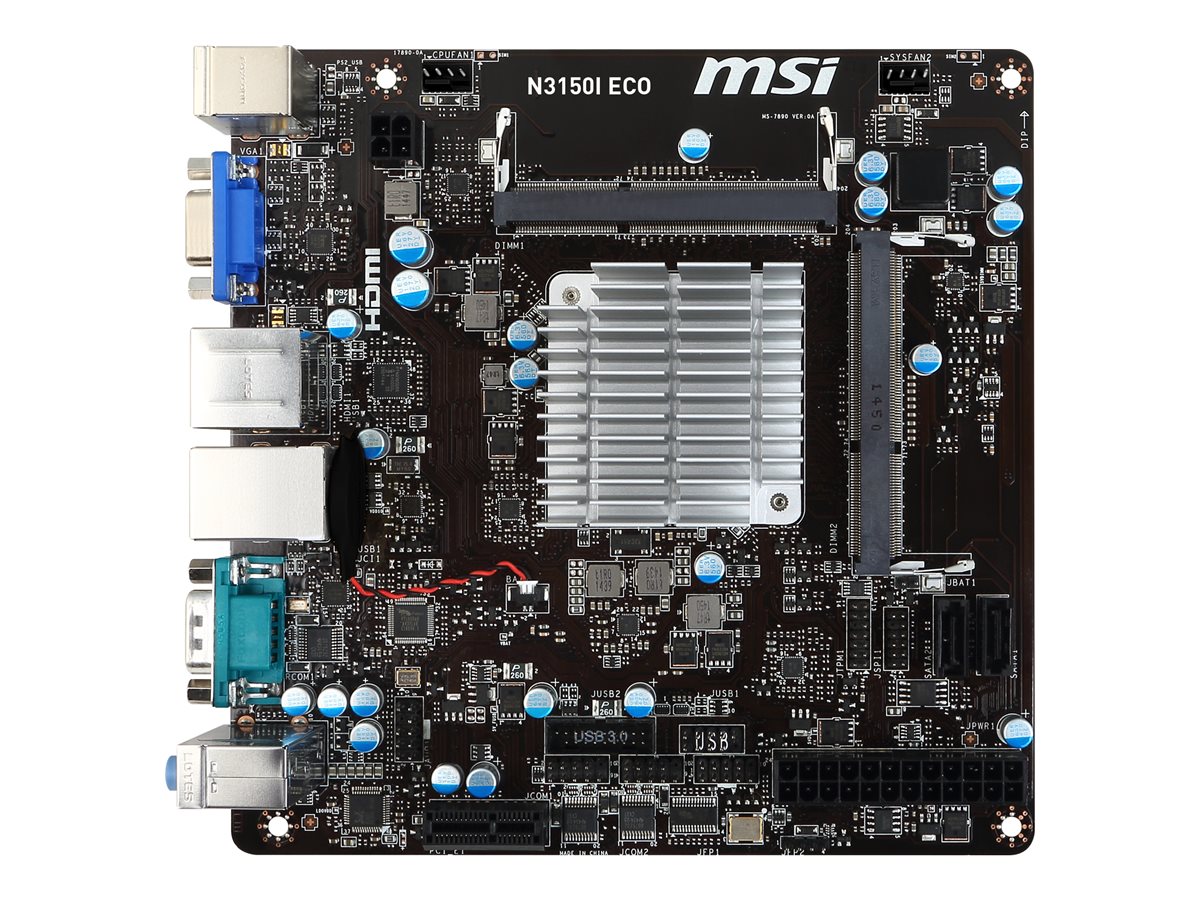

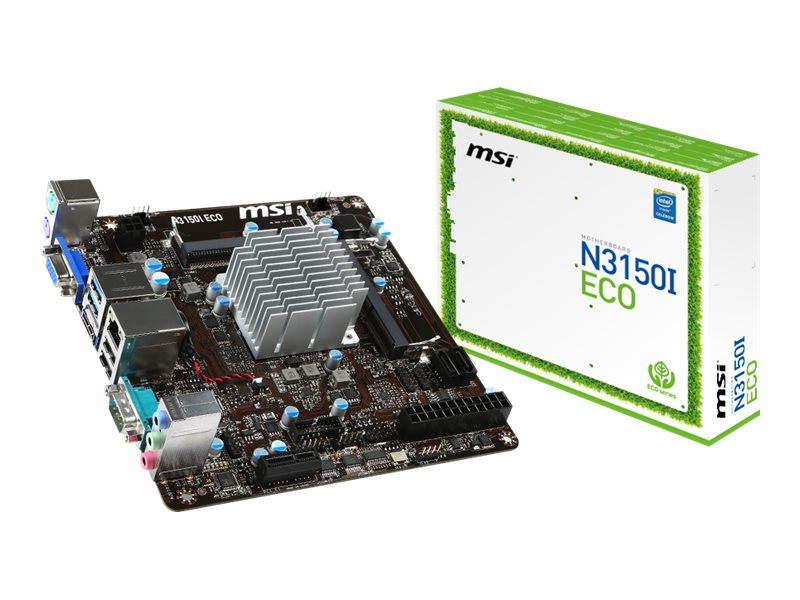

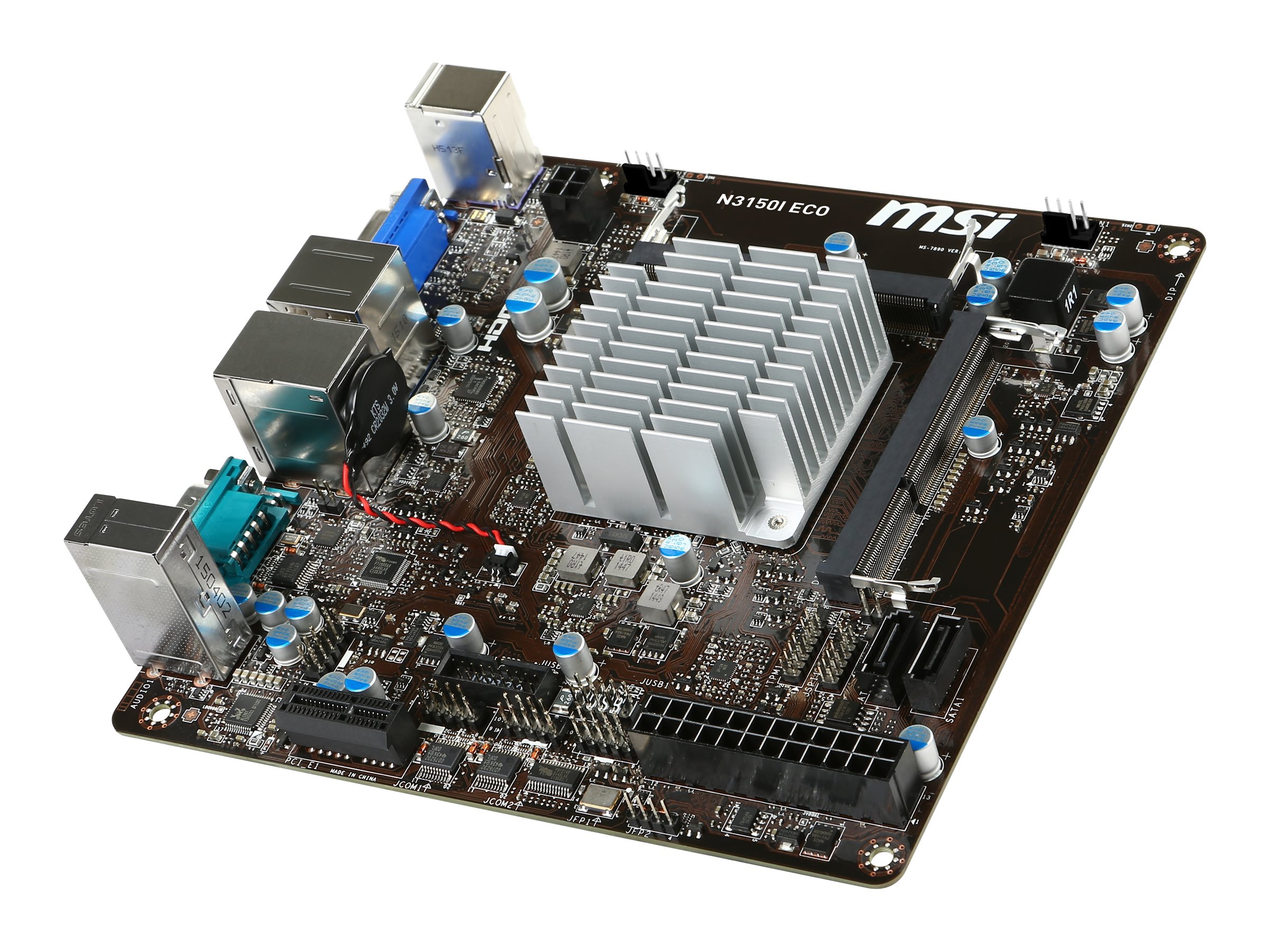

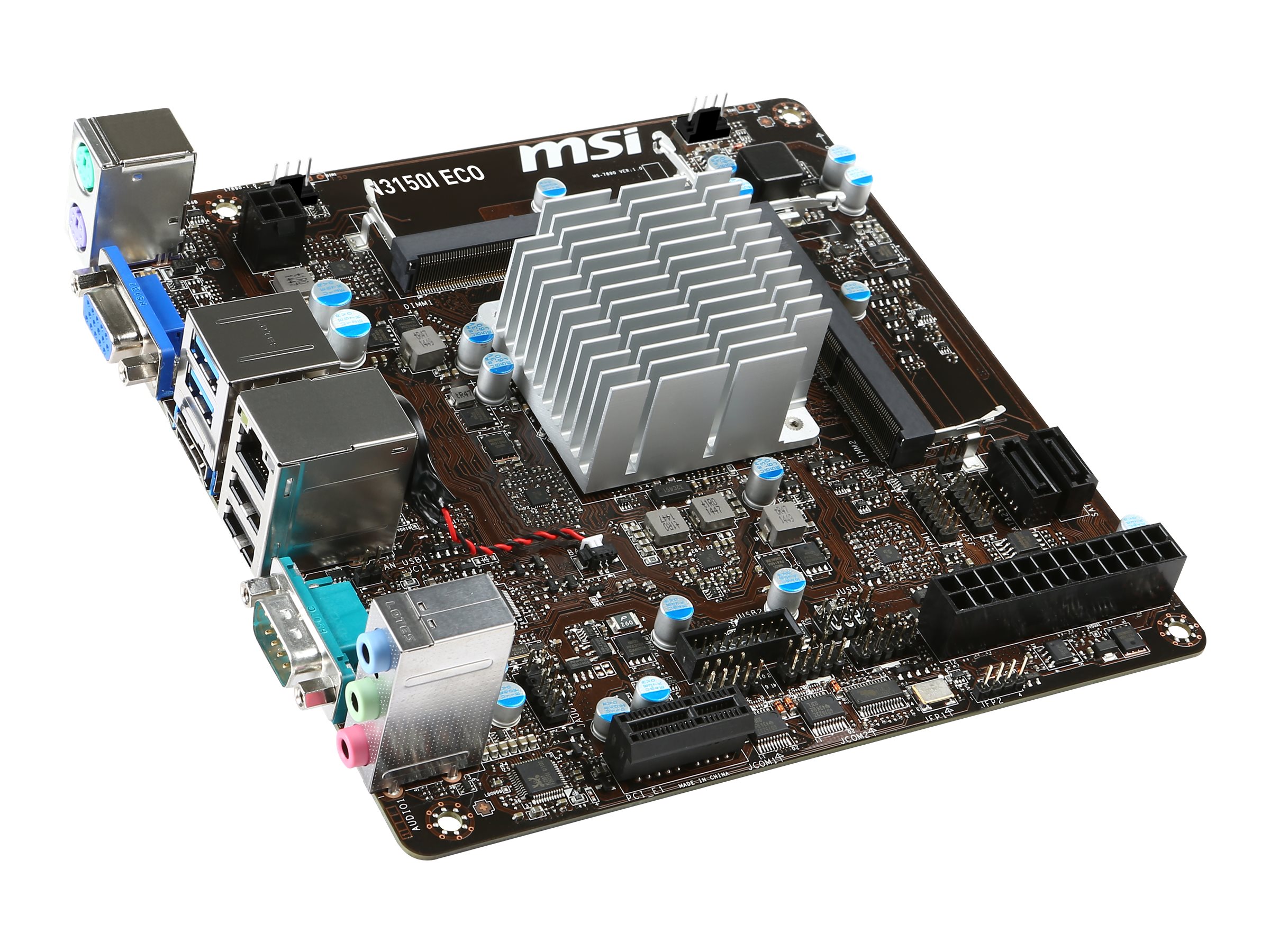

Motherboard - mini ITX - Intel Celeron N3150 - USB 3.0 - Gigabit LAN - onboard graphics - HD Audio (8-channel)
| Main Specifications | |
|---|---|
| Product Description | MSI N3150I ECO - motherboard - mini ITX - Intel Celeron N3150 |
| Product Type | Motherboard - mini ITX |
| Processor | Intel Celeron N3150 (Quad-Core) |
| Max RAM Size | 8 GB |
| RAM Supported | 2 SO-DIMM slots - DDR3, DDR3L |
| Storage Ports | 2 x SATA-600 |
| USB / FireWire Ports | 2 x USB 3.0 + 2 x USB 2.0 + (2 x USB 3.0 + 2 x USB 2.0 via headers) |
| Graphics | Intel HD Graphics |
| Audio | HD Audio (8-channel) |
| LAN | Gigabit Ethernet |
| General | |
| Product Type | Motherboard - mini ITX |
| Processor | Intel Celeron N3150 (Quad-Core) |
| Expansion / Connectivity | |
| Expansion Slots | 2 x SO-DIMM 204-pin ¦ 1 x PCIe 2.0 x1 |
| Storage Interfaces | SATA-600 -connectors: 2 x 7pin Serial ATA - 2 devices |
| Interfaces | 1 x LAN (Gigabit Ethernet) ¦ 2 x USB 3.0 ¦ 2 x USB 2.0 ¦ 1 x HDMI ¦ 1 x serial ¦ 1 x VGA ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x PS/2 keyboard ¦ 1 x PS/2 mouse |
| Internal Interfaces | 2 x USB 2.0 - header ¦ 1 x audio - header ¦ 2 x serial - header ¦ 2 x USB 3.0 - header |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector |
| Miscellaneous | |
| Software Included | MSI Live Update 6 |
| Compliant Standards | Plug and Play |
| Width | 6.7 in |
| Depth | 6.7 in |
| Audio | |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC887 |
| Compliant Standards | High Definition Audio |
| Features | |
| BIOS Features | DMI support, M-Flash |
| Hardware Features | Fanless Design Heatsink, MSI Military Class IV, Military Class Essentials, MSI Fast Boot, 4K Ultra HD ready |
| LAN | |
| Network Controller | Realtek RTL8111G |
| Network Interfaces | Gigabit Ethernet |
| Graphics | |
| Graphics Controller | Intel HD Graphics |
| Supported RAM | |
| Max Size | 8 GB |
| Technology | DDR3, DDR3L |
| Bus Clock | 1600 MHz, 1333 MHz |
| Features | Dual channel memory architecture |
