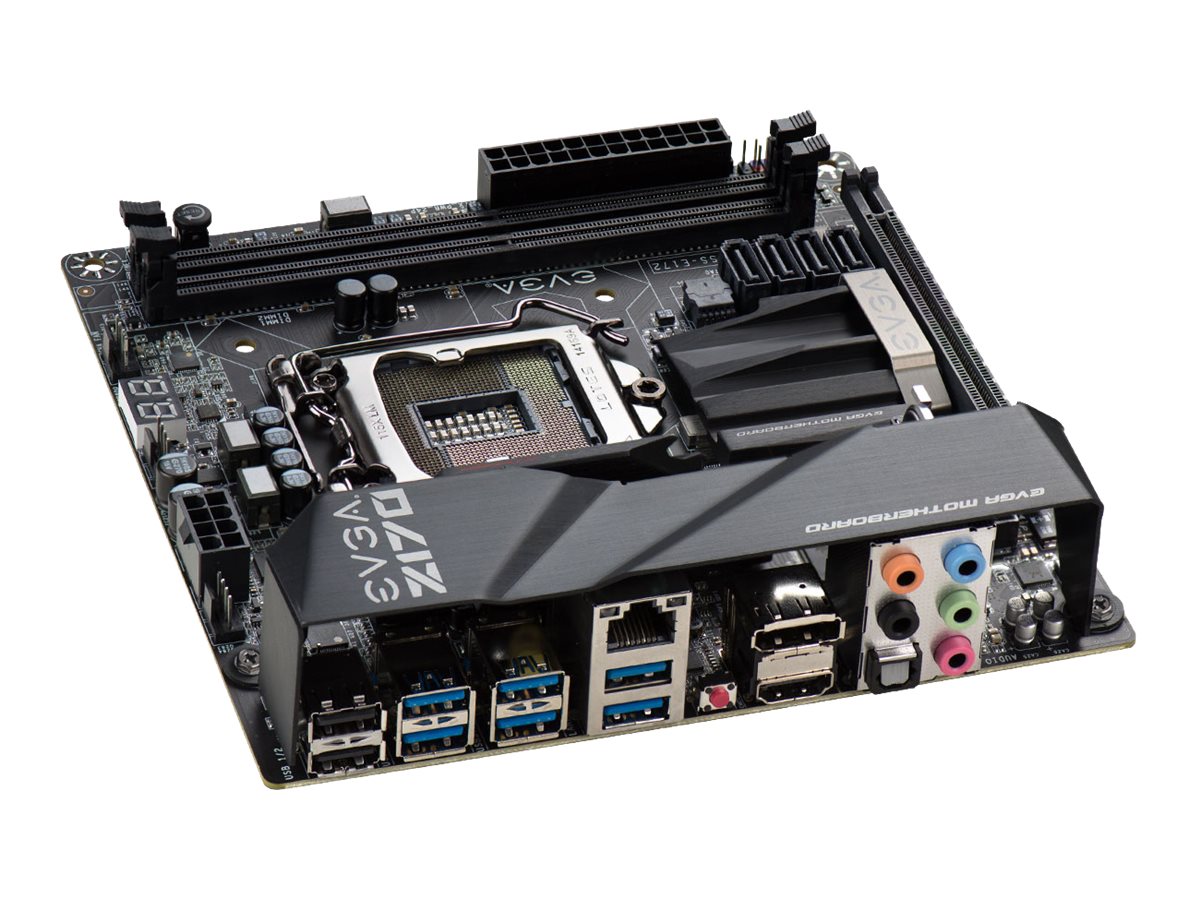

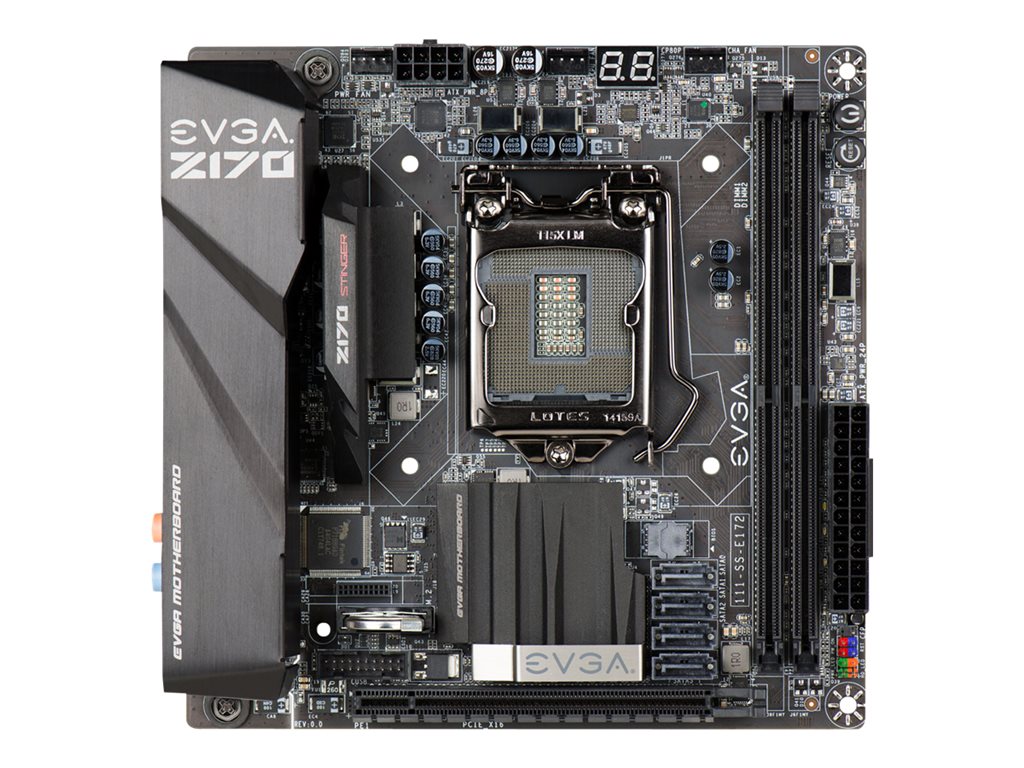

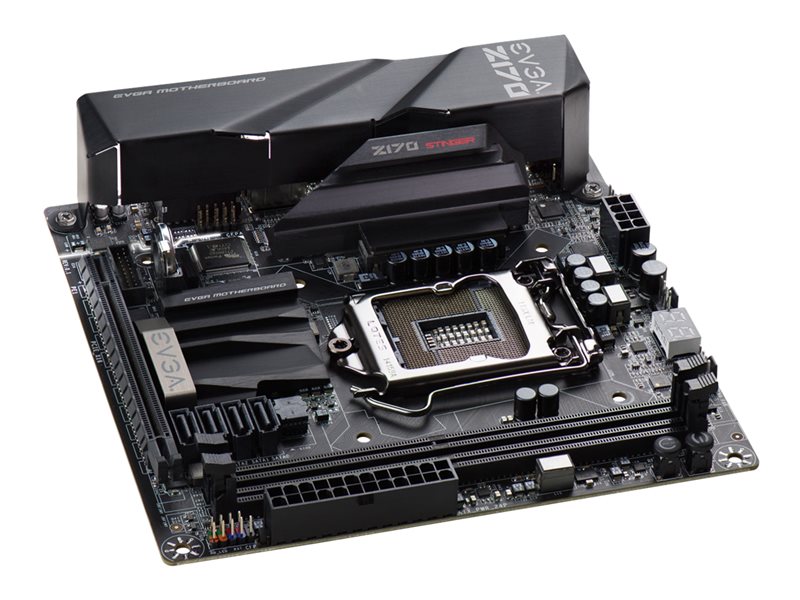

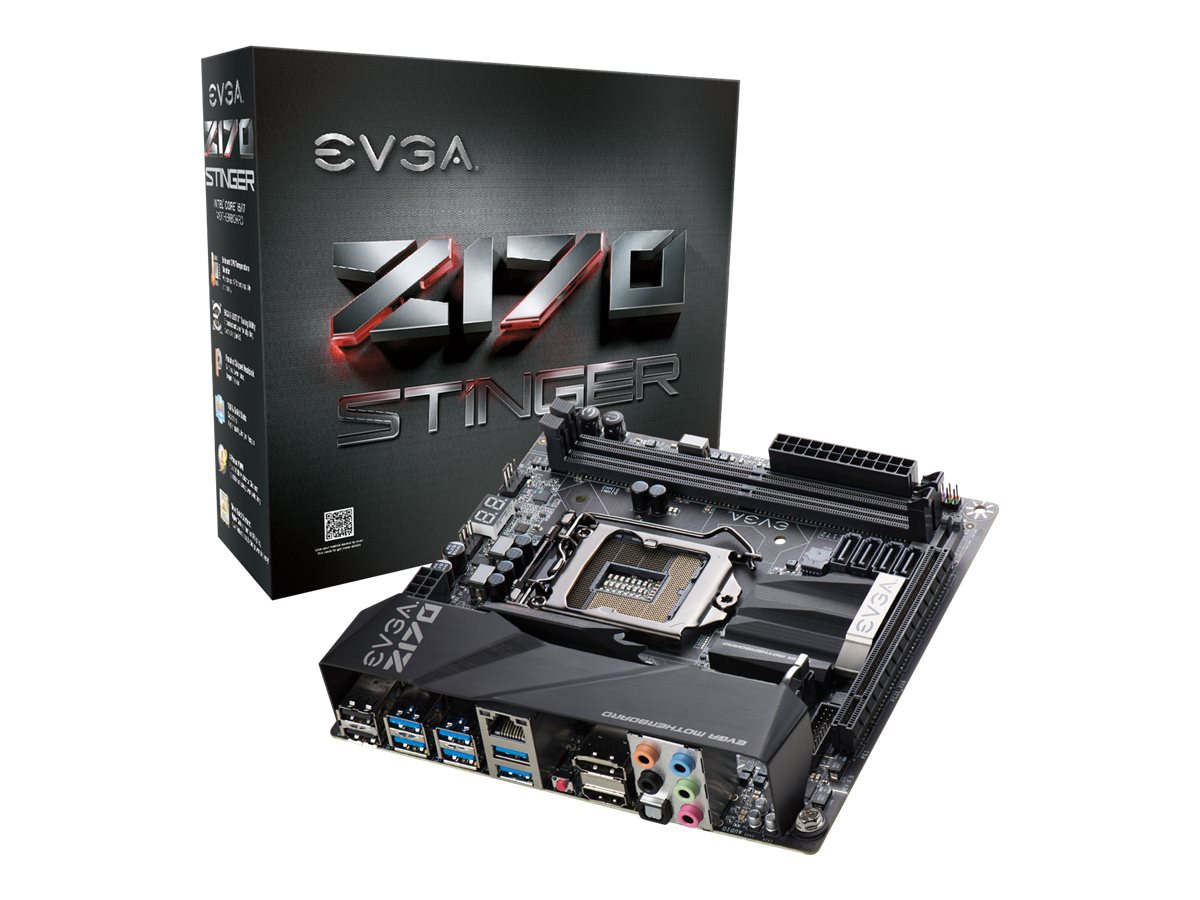

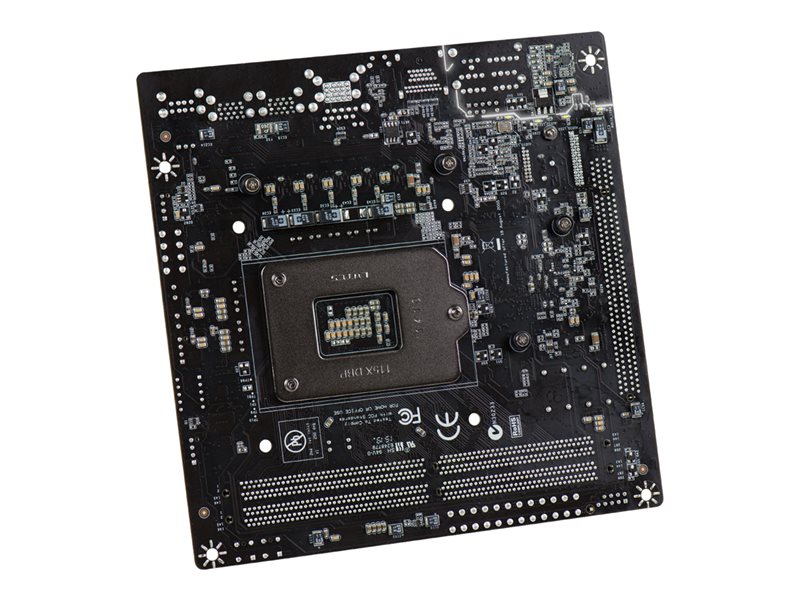

Motherboard - mini ITX no CPU - LGA1151 Socket - Z170 Chipset - USB 3.0 - Gigabit LAN - HD Audio (8-channel)
| Main Specifications | |
|---|---|
| Product Description | EVGA Z170 Stinger - motherboard - mini ITX no CPU - LGA1151 Socket - Z170 |
| Product Type | Motherboard - mini ITX |
| Processor | No CPU |
| Chipset Type | Intel Z170 |
| Processor Socket | 1 x LGA1151 Socket |
| Compatible Processors | Core i5, Core i3, Core i7 |
| Max RAM Size | 32 GB |
| RAM Supported | 2 DIMM slots - DDR4, non-ECC, unbuffered |
| Storage Ports | 4 x SATA-600 (RAID) |
| USB / FireWire Ports | 8 x USB 3.0 + 2 x USB 2.0 |
| Audio | HD Audio (8-channel) |
| LAN | Gigabit Ethernet |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | Motherboard - mini ITX |
| Processor | No CPU |
| Chipset Type | Intel Z170 |
| Processor Socket | LGA1151 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | Core i5, Core i3, Core i7 |
| Expansion / Connectivity | |
| Expansion Slots | 1 x PCIe 3.0 x16 ¦ 1 x PCIe 3.0 x1 ¦ 1 x M.2 socket ¦ 2 x DIMM 288-pin ¦ 1 x CPU |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - 6 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 / JBOD |
| Interfaces | 1 x LAN (Gigabit Ethernet) ¦ 2 x USB 2.0 ¦ 6 x USB 3.0 ¦ 1 x DisplayPort ¦ 1 x HDMI |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Software Included | EVGA E-LEET |
| Width | 6.7 in |
| Depth | 6.7 in |
| Audio | |
| Type | HD Audio (8-channel) |
| Features | |
| BIOS Features | EVGA VDroop Control |
| Hardware Monitoring | CPU core temperature |
| Hardware Features | Onboard Button, Clear CMOS Button |
| LAN | |
| Network Interfaces | Gigabit Ethernet |
| Supported RAM | |
| Max Size | 32 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 3200 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
