Wireless access point - Wi-Fi 5 - 2.4 GHz, 5 GHz - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | TRENDnet TEW 821DAP AC1200 Dual Band PoE Access Point - wireless access point - Wi-Fi 5 - TAA Compliant |
| Device Type | Wireless access point |
| Form Factor | External |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Frequency Band | 2.4 GHz, 5 GHz |
| Capacity | Maximum number of configured SSIDs: 16 |

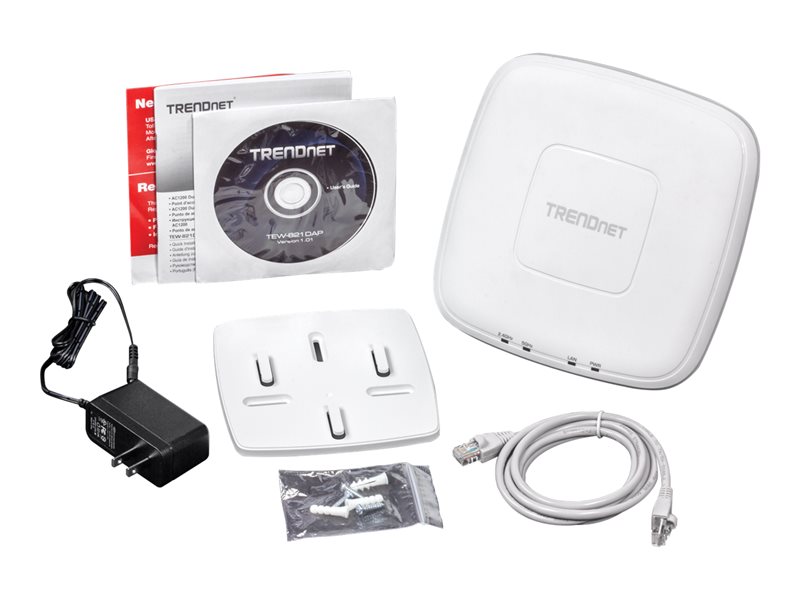

| Included Accessories | Mounting brackets |
| OS Required | Microsoft Windows Vista / XP / 7 / 8 / 8.1 |
| TAA Compliant | Yes |
| Dimensions (WxDxH) | 7.4 in x 7.4 in x 1.8 in |
| Weight | 16.08 oz |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Wireless access point |
| Width | 7.4 in |
| Depth | 7.4 in |
| Height | 1.8 in |
| Weight | 16.08 oz |
| Enclosure Color | Off-white |
| Expansion / Connectivity | |

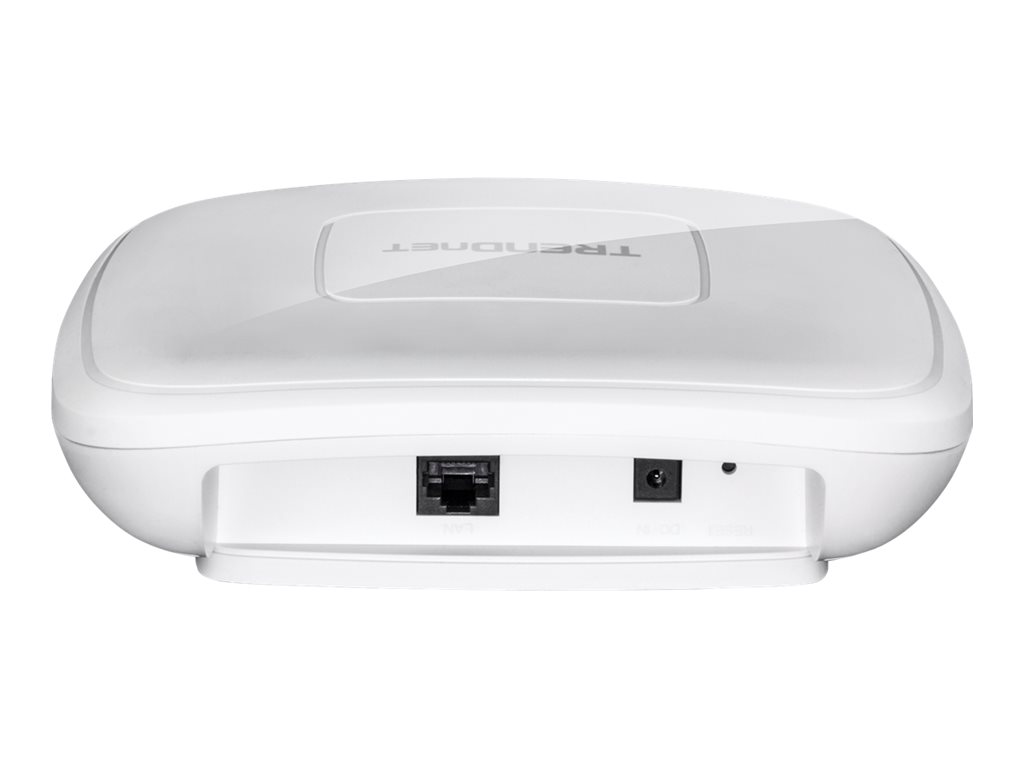

| Interfaces | 1 x 1000Base-T - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Mounting brackets |
| Cables Included | 1 x network cable - 5 ft |
| Compliant Standards | FCC |
| TAA Compliant | Yes |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 867 Mbps |
| Line Coding Format | DBPSK, DQPSK, CCK, BPSK, QPSK, 16 QAM, 256 QAM, 64 QAM, OFDM |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Spread Spectrum Method | DSSS |
| Remote Management Protocol | SNMP 1, SNMP 3, CLI |
| Frequency Band | 2.4 GHz, 5 GHz |
| Capacity | Maximum number of configured SSIDs: 16 |
| Features | Wireless Distribution System (WDS) support, repeating mode, reset button, beamforming technology, DHCP support, IPv6 support, Spanning Tree Protocol (STP) support, event log, firmware upgradable, MAC address filtering, Quality of Service (QoS), Wi-Fi Multimedia (WMM) support |
| Encryption Algorithm | WEP, WPA, WPA2, WPA2-PSK, WPA-PSK |
| Authentication Method | Radio Service Set ID (SSID) |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x |
| Power | |
| Power Device | External power adapter |
| Power Consumption Operational | 9.6 Watt |
| Software / System Requirements | |
| OS Required | Microsoft Windows Vista / XP / 7 / 8 / 8.1 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Antenna | |
| Antenna Qty | 4 |
| Gain Level | 4 dBi |
