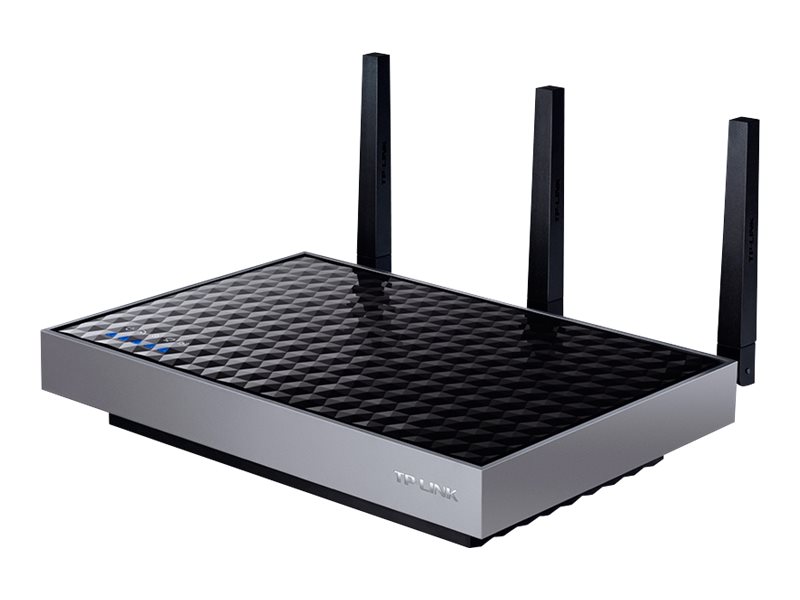

Wi-Fi range extender - 5 ports - 1GbE - Wi-Fi 5 - 2.4 GHz, 5 GHz
| Main Specifications | |
|---|---|
| Product Description | TP-Link RE580D - Wi-Fi range extender - Wi-Fi 5 |
| Device Type | Wi-Fi range extender |
| Form Factor | External |
| Processor | 1 GHz |
| Ports Qty | 5 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Frequency Band | 2.4 GHz, 5 GHz |
| OS Required | UNIX, Apple MacOS, Novell NetWare, Microsoft Windows 98 Second Edition, Linux, Microsoft Windows NT, Microsoft Windows 2000/XP/Vista/7, Windows 8, Windows 8.1 |
| Dimensions (WxDxH) | 9.5 in x 6.4 in x 1.7 in |
| General | |
| Device Type | Wi-Fi range extender |
| Width | 9.5 in |
| Depth | 6.4 in |
| Height | 1.7 in |
| Expansion / Connectivity | |
| Interfaces | 5 x 1000Base-T - RJ-45 |
| Miscellaneous | |
| Compliant Standards | FCC, RoHS |
| Networking | |
| Form Factor | External |
| Ports Qty | 5 |
| Connectivity Technology | Wireless, wired |
| Data Transfer Rate | 1900 Mbps |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Frequency Band | 2.4 GHz, 5 GHz |
| Features | Reset button, High Speed Mode, beamforming technology |
| Encryption Algorithm | 128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Power | |
| Power Device | External power adapter |
| Software / System Requirements | |
| OS Required | UNIX, Apple MacOS, Novell NetWare, Microsoft Windows 98 Second Edition, Linux, Microsoft Windows NT, Microsoft Windows 2000/XP/Vista/7, Windows 8, Windows 8.1 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Processor / Memory / Storage | |
| Processors Installed | 1 GHz |
| Antenna | |
| Antenna | External detachable |
| Antenna Qty | 3 |
| Directivity | Omni-directional |
