Wireless router 4-port switch - 1GbE Tri-Band
| Main Specifications | |
|---|---|
| Product Description | TP-Link Archer C3200 - wireless router - Wi-Fi 5 - desktop |
| Device Type | Wireless router - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| WAN Ports Qty | 1 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Frequency Band | 2.4 GHz (1 band) / 5 GHz (2 bands) |
| Data Transfer Rate | 3200 Mbps |
| Network / Transport Protocol | PPTP, L2TP, IPSec, PPPoE, FTP, DHCP, DDNS |
| Features | Dynamic DNS server, print server, IPv6 support, parental control, WMM support, virtual server support, WPS, DHCP server, Samba support, FTP server, port forwarding, reset button, bandwidth control, IPv4 support, port triggering, DHCP client, Tri-Band Smart Connect technology |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, UPnP, IEEE 802.11ac |
| Dimensions (WxDxH) | 7.9 in x 7.9 in x 1.5 in |
| System Requirements | UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows NT, Microsoft Windows 98 Second Edition / Windows 2000, Microsoft Windows Vista / XP / 7 / 8 |
| General | |
| Device Type | Wireless router - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Frequency Band | 2.4 GHz (1 band) / 5 GHz (2 bands) |
| Data Transfer Rate | 3200 Mbps |
| Network / Transport Protocol | PPTP, L2TP, IPSec, PPPoE, FTP, DHCP, DDNS |
| Encryption Algorithm | 128-bit WEP, 64-bit WEP, WPA, WPA2, WPA-PSK, WPA2-PSK |
| Features | Dynamic DNS server, print server, IPv6 support, parental control, WMM support, virtual server support, WPS, DHCP server, Samba support, FTP server, port forwarding, reset button, bandwidth control, IPv4 support, port triggering, DHCP client, Tri-Band Smart Connect technology |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, UPnP, IEEE 802.11ac, FCC, RoHS |
| Processor | 1 GHz |
| Built-in Devices | LED panel |
| Expansion / Connectivity | |

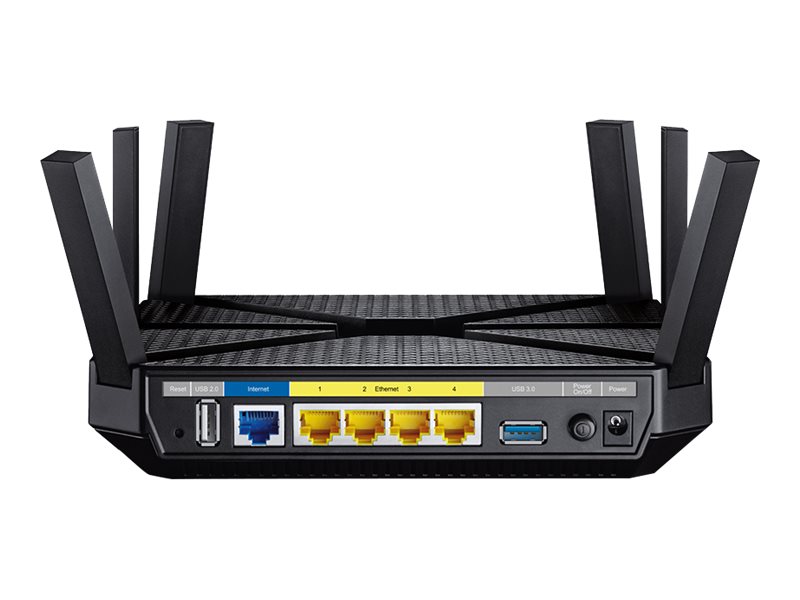

| Interfaces | LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ USB 2.0: 1 x 4 pin USB Type A ¦ USB 3.0: 1 x 9 pin USB Type A |
| Miscellaneous | |
| Cables Included | 1 x network cable |
| Power | |
| Power Device | External power adapter |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
| OS Required | UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows NT, Microsoft Windows 98 Second Edition / Windows 2000, Microsoft Windows Vista / XP / 7 / 8 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 7.9 in |
| Depth | 7.9 in |
| Height | 1.5 in |
| Antenna | |
| Antenna | External integrated |
| Antenna Qty | 6 |
