KVM / audio / USB switch - 4 x KVM / audio / USB - desktop, rack-mountable - AC 100 - 240 V
| Main Specifications | |
|---|---|

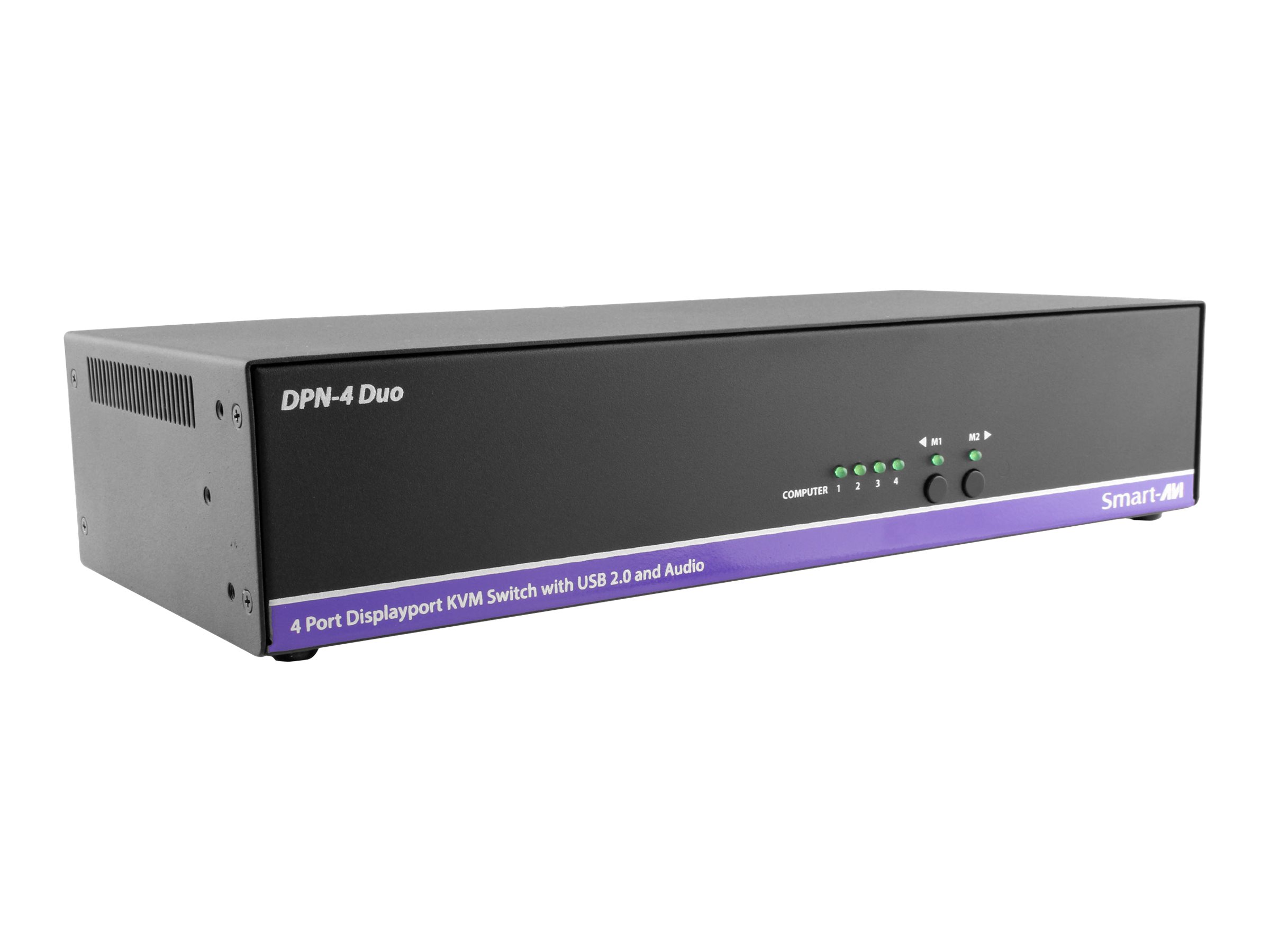

| Product Description | SmartAVI DPN-4Duo - KVM / audio / USB switch - 4 ports - rack-mountable |
| Device Type | KVM / audio / USB switch - 4 ports |
| Enclosure Type | Rack-mountable |
| Subtype | KVM |
| Ports | 4 x KVM / audio / USB |
| Features | EDID Pass-Through |
| Power | AC 100 - 240 V |
| Dimensions (WxDxH) | 12.8 in x 5.7 in x 2.9 in |
| Weight | 4.41 lbs |
| General | |
| Device Type | KVM / audio / USB switch - 4 ports |
| Enclosure Type | Desktop, rack-mountable |
| Subtype | KVM |
| Ports | 4 x KVM / audio / USB |
| Keyboard / Mouse Interface | USB |
| Max Resolution | 3840 x 2160 @ 30 Hz |
| Features | EDID Pass-Through, dual-head |
| Expansion / Connectivity | |
| Interfaces | 4 x USB Type B ¦ 2 x keyboard (USB) / mouse (USB) Type A ¦ 2 x USB 2.0 output ¦ 8 x DisplayPort input ¦ 2 x DisplayPort output ¦ 4 x audio input mini-jack ¦ 1 x audio output mini-jack ¦ Management (RS-232) DB-9 |
| Miscellaneous | |
| Compliant Standards | UL, RoHS |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100 - 240 V |
| Power Consumption Operational | 20 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 185 °F |
| Dimensions & Weight | |
| Width | 12.8 in |
| Depth | 5.7 in |
| Height | 2.9 in |
| Weight | 4.41 lbs |
