Hard drive array - 12 bays (SATA-600 / SAS) - SAS (external) - rack-mountable - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Synology RX1216sas - hard drive array - TAA Compliant |
| Device Type | Hard drive array |
| Enclosure Type | Rack-mountable |
| Max Supported Capacity | 96 TB |
| Interface | SAS |
| Installed Devices / Modules Qty | 0 (installed) / 12 (max) |
| Supported Drives | SATA-600 / SAS |
| Storage Controller | RAID (SATA 6Gb/s / SAS) |
| Hard Drive | No HDD - hot-swap |
| Power | AC 120/230 V - 50/60 Hz |
| Power Redundancy | Yes |
| TAA Compliant | Yes |
| Dimensions (WxDxH) | 16.9 in x 27.2 in x 3.5 in |
| Weight | 29.76 lbs |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Hard drive array |
| Enclosure Type | Rack-mountable |
| Expansion / Connectivity | |
| Expansion Bays | 12 (total) / 12 (free) x hot-swap - 2.5" / 3.5" shared |

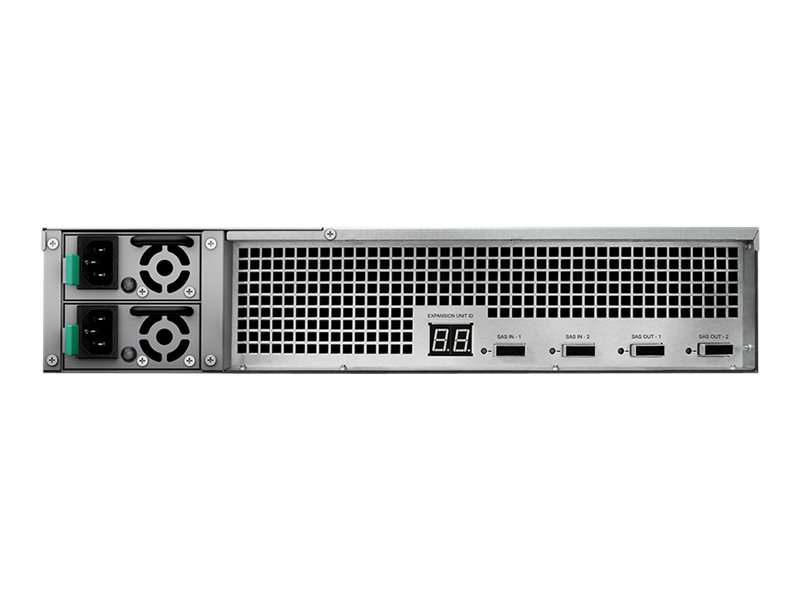

| Interfaces | 2 x SAS (input) ¦ 2 x SAS (output) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Cables Included | 2 x SAS cable |
| Compliant Standards | FCC Class A certified, RoHS, BSMI Class B, BSMI Class A |
| TAA Compliant | Yes |
| Processor | |
| CPU | No CPU |
| Storage | |
| Max Supported Capacity | 96 TB |
| HDD Array External Interface | SAS |
| Power | |
| Power Device | 2 x internal power supply |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Voltage Required | AC 120/230 V - 50/60 Hz |
| Power Consumption Operational | 67.31 Watt |
| Power Provided | 500 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 5 - 95% |
| Sound Emission | 45.1 dBA |
| Storage Controller | |
| Type | RAID |
| Channel Qty | 12 |
| Interface Type | SATA 6Gb/s / SAS |
| Data Transfer Rate | 600 MBps |
| Hard Drive | |
| Type | No HDD - hot-swap |
| Dimensions & Weight | |
| Width | 16.9 in |
| Depth | 27.2 in |
| Height | 3.5 in |
| Weight | 29.76 lbs |
| Chassis | |
| Installed Devices / Modules Qty | 0 |
| Supported Devices / Modules Qty | 12 |
| Supported Drives | SATA-600 / SAS |
