Hard drive array - 4 bays (SATA-600 / SAS-2) - Thunderbolt 2 (external)
| Main Specifications | |
|---|---|

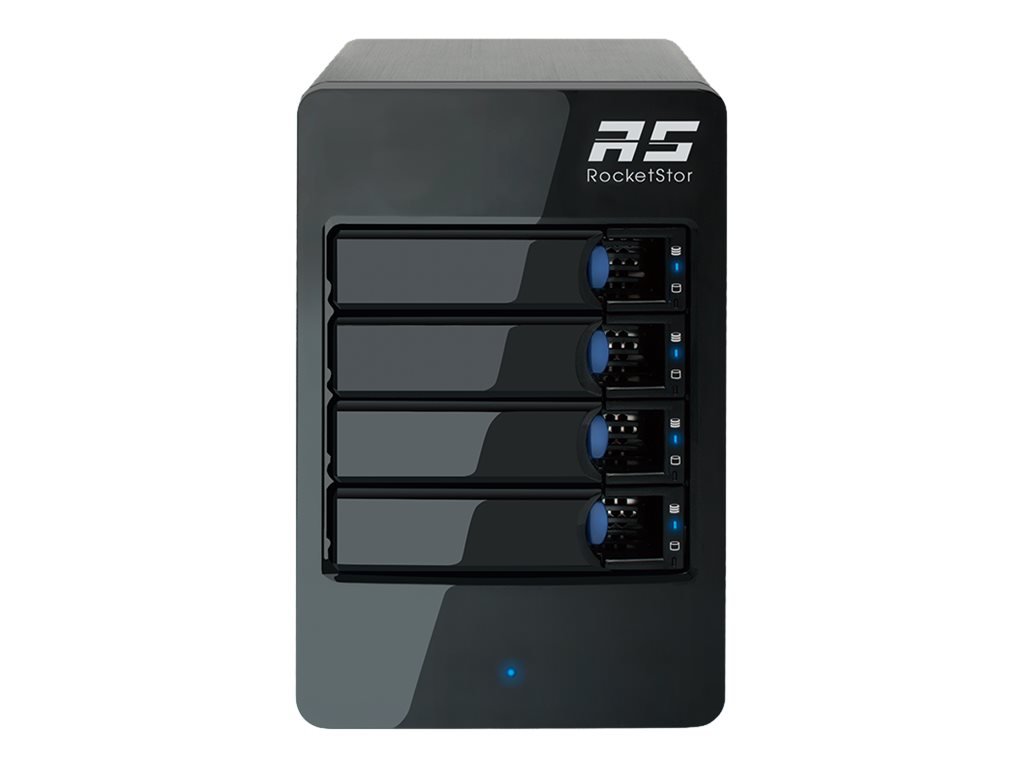

| Product Description | HighPoint RocketStor 6314A - hard drive array |
| Device Type | Hard drive array |
| Max Supported Capacity | 32 TB |
| Interface | Thunderbolt 2 |
| Installed Devices / Modules Qty | 0 (installed) / 4 (max) |
| Supported Drives | SATA-600 / SAS-2 |
| Storage Controller | RAID (SATA 6Gb/s / SAS 6Gb/s) - RAID 0, 1, 5, 6, 10, JBOD |
| Storage Controller Quantity | 1 |
| Hard Drive | No HDD |
| OS Required | Microsoft Windows Server 2008, Microsoft Windows Server 2012, Apple OS X 10.8.3 Mountain Lion, Microsoft Windows 7 / 8 / 8.1 / 10 |
| Power | AC 120/230 V |
| Dimensions (WxDxH) | 5.3 in x 8.7 in x 8.7 in |
| Weight | 9.48 lbs |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Hard drive array |
| Expansion / Connectivity | |
| Expansion Bays | 4 (total) / 4 (free) x hot-swap - 2.5" / 3.5" shared |
| Interfaces | 2 x Thunderbolt 2 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years |
| Miscellaneous | |
| Features | On/off switch |
| Cables Included | 1 x Thunderbolt cable |
| Compliant Standards | FCC, RoHS |
| RAM | |
| Installed Size | 512 MB |
| Storage | |
| Max Supported Capacity | 32 TB |
| HDD Array External Interface | Thunderbolt 2 |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 8 - 90% (non-condensing) |
| Storage Controller | |
| Type | RAID |
| Installed Qty | 1 |
| Interface Type | SATA 6Gb/s / SAS 6Gb/s |
| Data Transfer Rate | 600 MBps |
| Max Storage Devices Qty | 4 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD |
| System Requirements | |
| OS Required | Microsoft Windows Server 2008, Microsoft Windows Server 2012, Apple OS X 10.8.3 Mountain Lion, Microsoft Windows 7 / 8 / 8.1 / 10 |
| Storage Controller (2nd) | |
| Installed Qty | 1 |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 5.3 in |
| Depth | 8.7 in |
| Height | 8.7 in |
| Weight | 9.48 lbs |
| Chassis | |
| Installed Devices / Modules Qty | 0 |
| Supported Devices / Modules Qty | 4 |
| Supported Drives | SATA-600 / SAS-2 |
