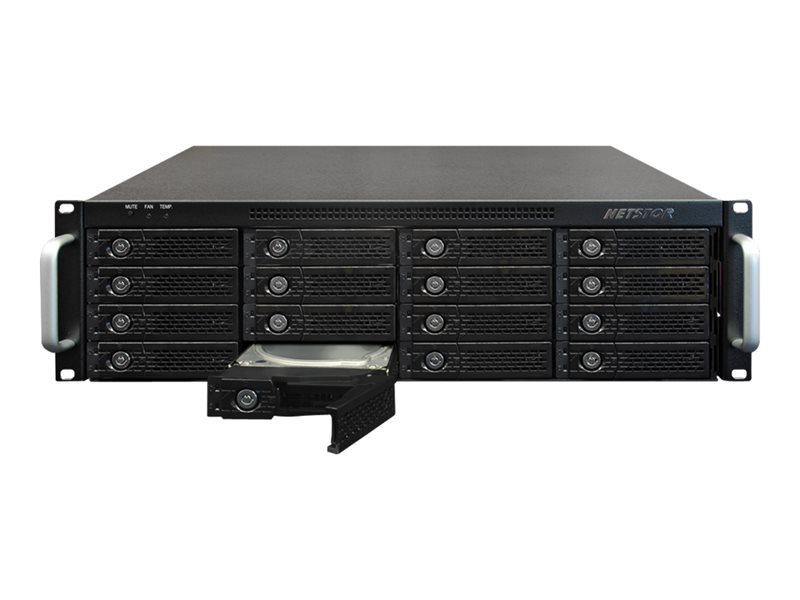

Hard drive array - 16 bays (SATA-600 / SAS-2) - SAS 6Gb/s (external) - rack-mountable - 3U
| Main Specifications | |
|---|---|
| Product Description | HighPoint RocketStor 6424TS - hard drive array |
| Device Type | Hard drive array |
| Enclosure Type | Rack-mountable - 3U |
| Max Supported Capacity | 160 TB |
| Interface | SAS 6Gb/s |
| Installed Devices / Modules Qty | 16 (max) |
| Supported Drives | SATA-600 / SAS-2 |
| Built-in Devices | LED panel |
| Storage Controller | RAID (SATA 6Gb/s / SAS 6Gb/s) - RAID JBOD, 0, 1, 10, 5, 50 |
| Hard Drive | No HDD |
| OS Required | Apple MacOS X 10.6 or later, Debian Linux, FreeBSD, Microsoft Windows 7 or later, Microsoft Windows Server 2008, openSUSE, Red Hat Enterprise Linux, Red Hat Fedora Core, Ubuntu |
| Power | AC 120/230 V - 50/60 Hz |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 19 in x 18 in x 5.2 in |
| Weight | 47.4 lbs |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Hard drive array |
| Enclosure Type | Rack-mountable - 3U |
| Expansion / Connectivity | |
| Expansion Bays | 16 (total) / 16 (free) x hot-swap - 3.5" |
| Interfaces | 4 x SAS 6Gb/s - 26 pin 4x Mini SAS (SFF-8088) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Features | Online Capacity Expansion (OCE), audible alarm, built-in 4 cooling fans, Online RAID Level Migration (RLM) |
| Cables Included | 4 x mini SAS cable |
| Compliant Standards | FCC, RoHS |
| Included Accessories | 2 x keys |
| Storage | |
| Max Supported Capacity | 160 TB |
| HDD Array External Interface | SAS 6Gb/s |
| Power | |
| Power Device | 2 x internal power supply |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 120/230 V - 50/60 Hz |
| Power Provided | 400 watt |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 8 - 80% (non-condensing) |
| Storage Controller | |
| Type | RAID (PCIe 2.0 x16) |
| Interface Type | SATA 6Gb/s / SAS 6Gb/s |
| Data Transfer Rate | 600 MBps |
| RAID Level | JBOD, RAID 0, RAID 1, RAID 10, RAID 5, RAID 50 |
| System Requirements | |
| OS Required | Apple MacOS X 10.6 or later, Debian Linux, FreeBSD, Microsoft Windows 7 or later, Microsoft Windows Server 2008, openSUSE, Red Hat Enterprise Linux, Red Hat Fedora Core, Ubuntu |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 19 in |
| Depth | 18 in |
| Height | 5.2 in |
| Weight | 47.4 lbs |
| Chassis | |
| Built-in Devices | LED panel |
| Supported Devices / Modules Qty | 16 |
| Supported Drives | SATA-600 / SAS-2 |
