Wireless router 4-port switch - 1GbE Dual Band
| Main Specifications | |
|---|---|

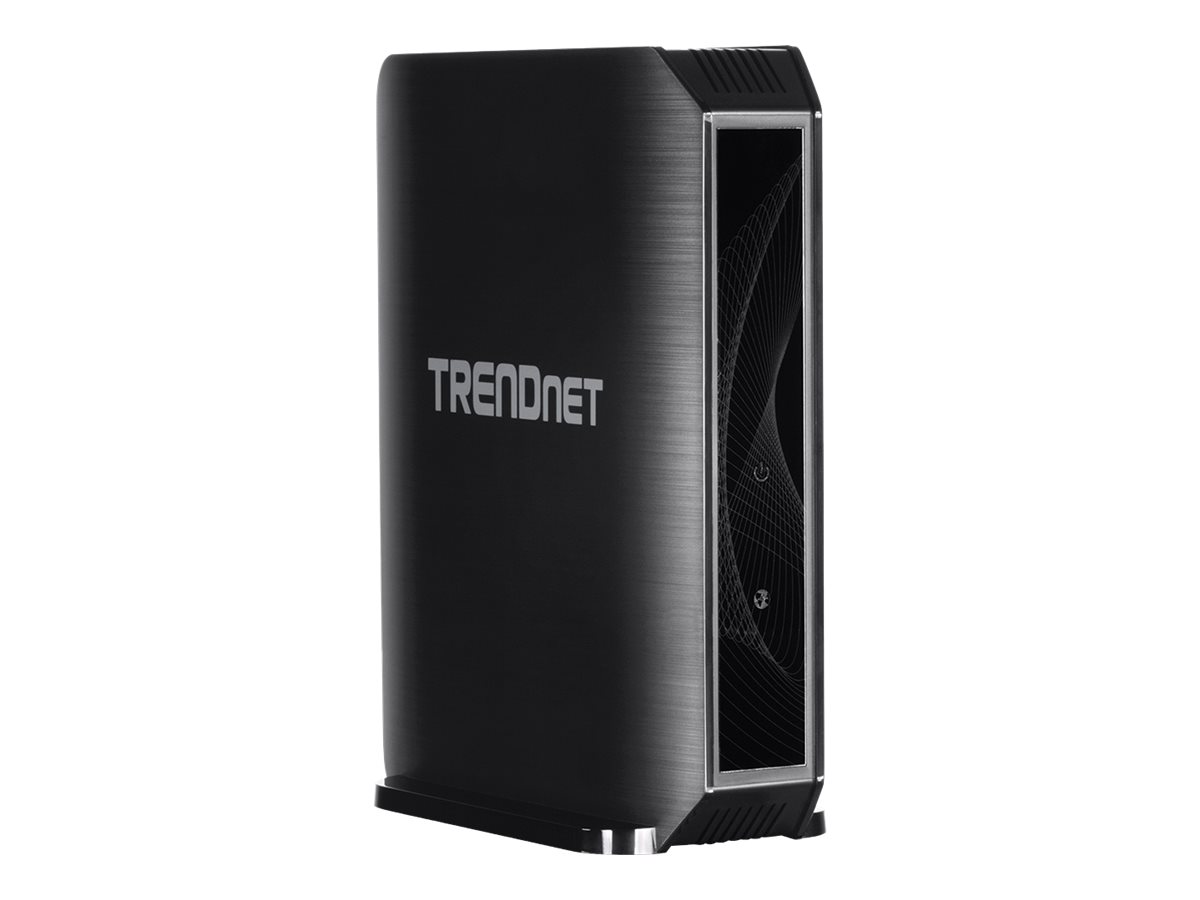

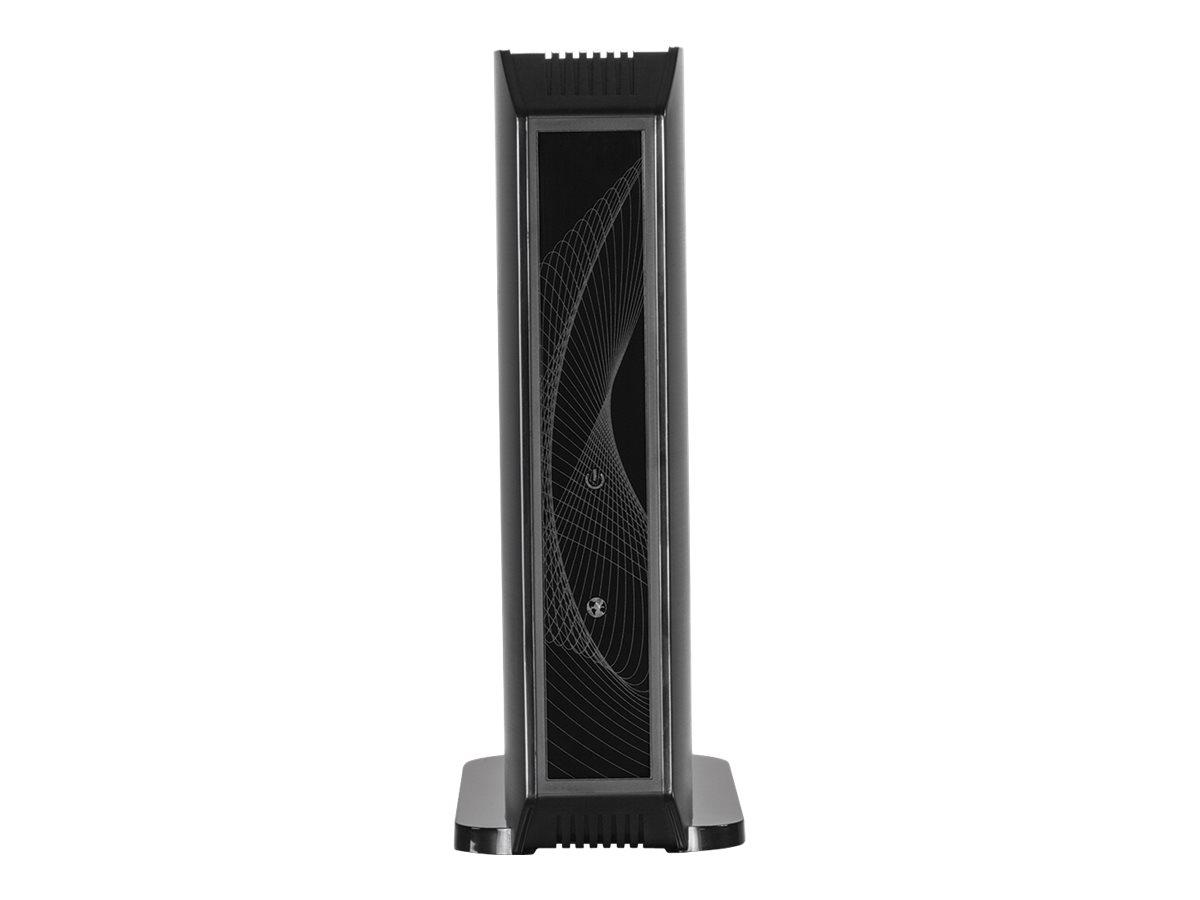

| Product Description | TRENDnet TEW-824DRU - wireless router - Wi-Fi 5 - desktop |
| Device Type | Wireless router - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| WAN Ports Qty | 1 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Frequency Band | 2.4 GHz / 5 GHz |
| Data Transfer Rate | 1.3 Gbps |
| Network / Transport Protocol | PPTP, L2TP, IPSec, PPPoE, FTP, DHCP, CSMA/CA, DDNS, DHCPv6 |
| Routing Protocol | RIP-1, RIP-2, static IP routing |
| Remote Management Protocol | TFTP |
| VoIP Protocols | H.323, SIP |
| Features | NAT support, SPI, ALG support, MAC address filtering, IPv6 support, VPN passthrough, URL filtering, IP address filtering, firmware upgradable, WMM support, virtual server support, iTunes server, WPS, Samba support, FTP server, BitTorrent Client, reset button, StreamBoost |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11a, IEEE 802.3x, IEEE 802.11g, IEEE 802.11n, IEEE 802.3az, IEEE 802.11ac |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 5.9 in x 2.8 in x 7.5 in |
| Weight | 14.39 oz |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Wireless router - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Frequency Band | 2.4 GHz / 5 GHz |
| Data Transfer Rate | 1.3 Gbps |
| Network / Transport Protocol | PPTP, L2TP, IPSec, PPPoE, FTP, DHCP, CSMA/CA, DDNS, DHCPv6 |
| Routing Protocol | RIP-1, RIP-2, static IP routing |
| Remote Management Protocol | TFTP |
| Encryption Algorithm | WPA, WPA2, WPA-PSK, WPA2-PSK, WEP |
| Authentication Method | RADIUS, Radio Service Set ID (SSID) |
| Features | NAT support, SPI, ALG support, MAC address filtering, IPv6 support, VPN passthrough, URL filtering, IP address filtering, firmware upgradable, WMM support, virtual server support, iTunes server, WPS, Samba support, FTP server, BitTorrent Client, reset button, StreamBoost |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11a, IEEE 802.3x, IEEE 802.11g, IEEE 802.11n, IEEE 802.3az, IEEE 802.11ac, FCC |
| Expansion / Connectivity | |

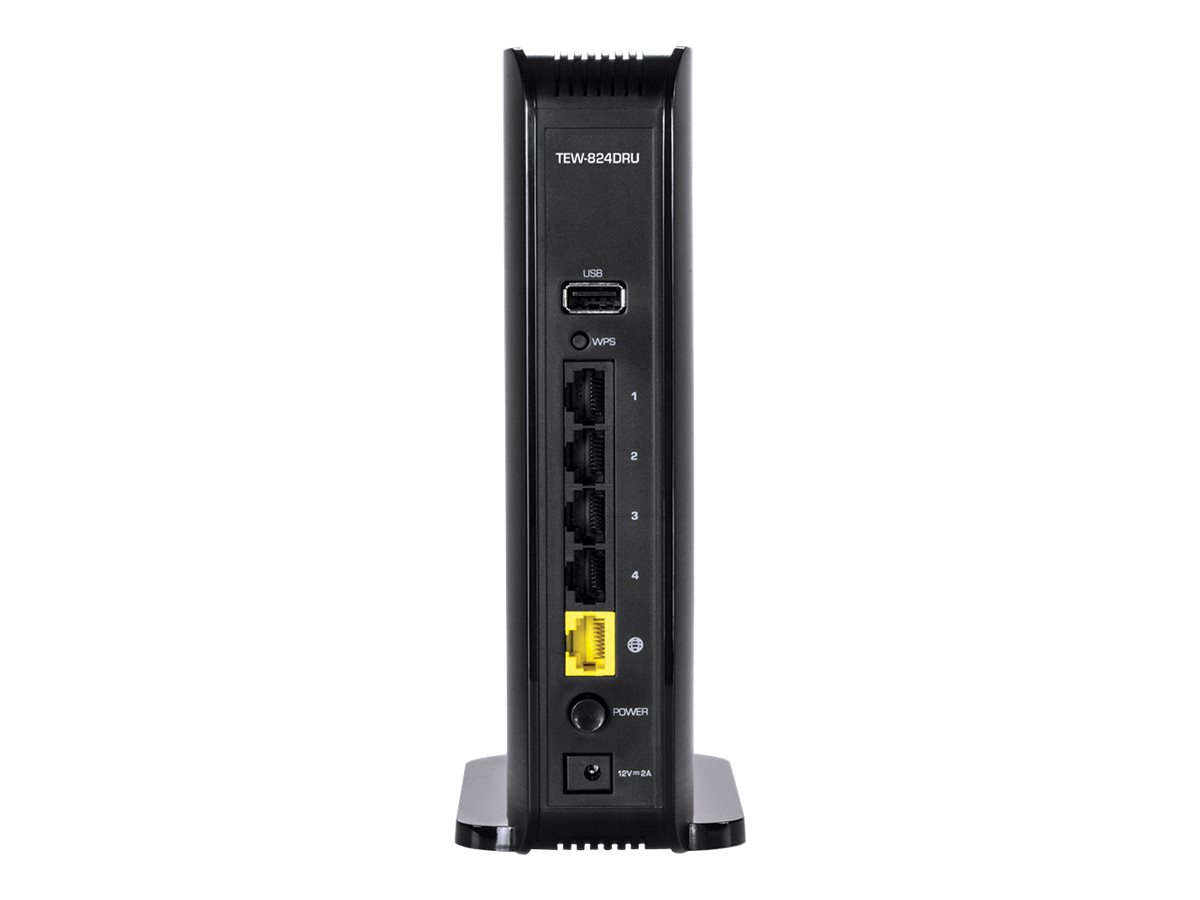

| Interfaces | WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ USB 2.0: 1 x 4 pin USB Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | 1 x network cable - 5 ft |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 18 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 5.9 in |
| Depth | 2.8 in |
| Height | 7.5 in |
| Weight | 14.39 oz |
| Antenna | |
| Antenna | Internal |
| IP Telephony | |
| VoIP Protocols | H.323, SIP |
| Line Properties | |
| Line Coding Format | DBPSK, DQPSK, CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM |
