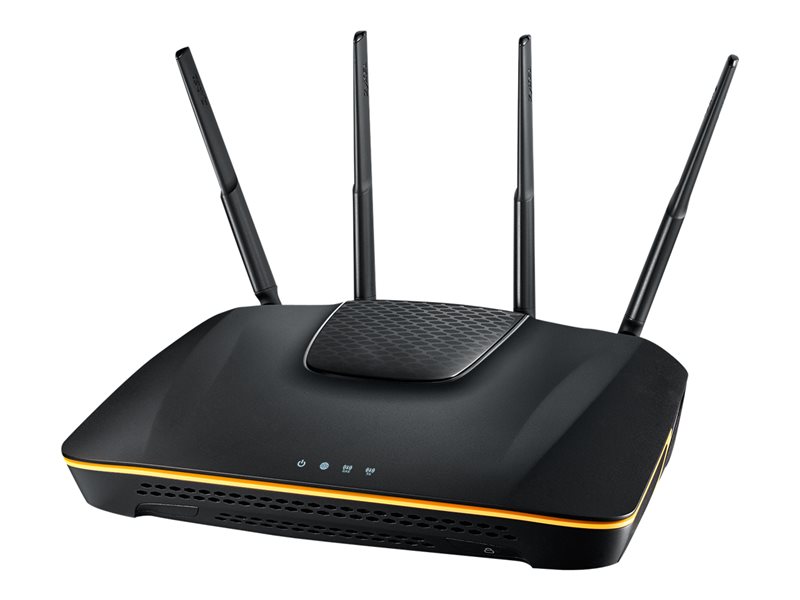

Wireless router 4-port switch - 1GbE Dual Band
| Main Specifications | |
|---|---|
| Product Description | Zyxel Armor Z1 - wireless router - Wi-Fi 5 - desktop |
| Device Type | Wireless router - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| WAN Ports Qty | 1 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Frequency Band | 2.4 GHz / 5 GHz |
| Data Transfer Rate | 1733 Mbps |
| Network / Transport Protocol | PPPoE, DHCP |
| Routing Protocol | IGMPv2, IGMP, static IP routing |
| Features | Firewall protection, NAT support, WOL, auto-uplink (auto MDI/MDI-X), SPI, dynamic DNS server, print server, MAC address filtering, IPv6 support, VPN passthrough, parental control, Access Point operational mode, firmware upgradable, WMM support, ACS, QoS, WPS, IPSec passthrough, DHCP server, DLNA Media Server, DHCP client, DoS, StreamBoost, PPTP passthrough, L2TP passthrough |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, Wi-Fi Protected Setup, IEEE 802.11ac |
| Dimensions (WxDxH) | 11.7 in x 8.2 in x 2.8 in |
| Weight | 29.63 oz |
| General | |
| Device Type | Wireless router - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Frequency Band | 2.4 GHz / 5 GHz |
| Data Transfer Rate | 1733 Mbps |
| Network / Transport Protocol | PPPoE, DHCP |
| Routing Protocol | IGMPv2, IGMP, static IP routing |
| Encryption Algorithm | WPA, WPA2, WPA-PSK, WPA2-PSK |
| Features | Firewall protection, NAT support, WOL, auto-uplink (auto MDI/MDI-X), SPI, dynamic DNS server, print server, MAC address filtering, IPv6 support, VPN passthrough, parental control, Access Point operational mode, firmware upgradable, WMM support, ACS, QoS, WPS, IPSec passthrough, DHCP server, DLNA Media Server, DHCP client, DoS, StreamBoost, PPTP passthrough, L2TP passthrough |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, Wi-Fi Protected Setup, IEEE 802.11ac, FCC, LVD |
| Processor | 1 x 1.4 GHz |
| RAM | 512 MB |
| Flash Memory | 4 GB |
| Status Indicators | Power, WPS, Internet |
| Expansion / Connectivity | |
| Interfaces | LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ USB 3.0: 2 x 9 pin USB Type A |
| Miscellaneous | |
| Cables Included | 1 x network cable |
| Power | |
| Power Device | External power adapter |
| Power Consumption Operational | 29 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 11.7 in |
| Depth | 8.2 in |
| Height | 2.8 in |
| Weight | 29.63 oz |
| Antenna | |
| Antenna | External detachable |
| Antenna Qty | 4 |
