Expansion module - HDBaseT - for VanCryst VM1600A, VM3200, VM3250
| Main Specifications | |
|---|---|

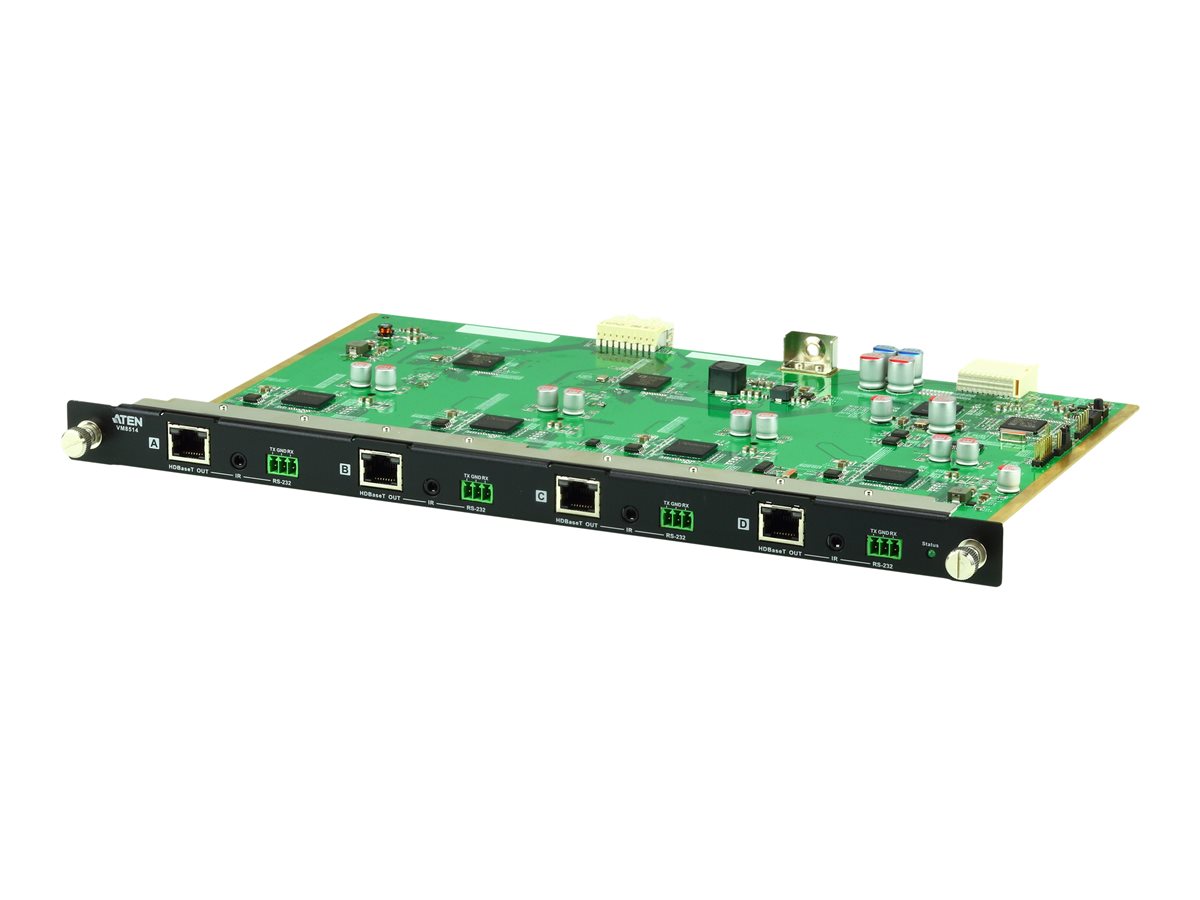

| Product Description | ATEN VM8514 4-Port HDBaseT Output Board - expansion module |
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Dimensions (WxDxH) | 13.9 in x 9.3 in x 0.9 in |
| Weight | 21.87 oz |
| Data Link Protocol | HDBaseT |
| Data Transfer Rate | 10.2 Gbps |
| Designed For | VanCryst VM1600A, VM3200, VM3250 |
| General | |
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |

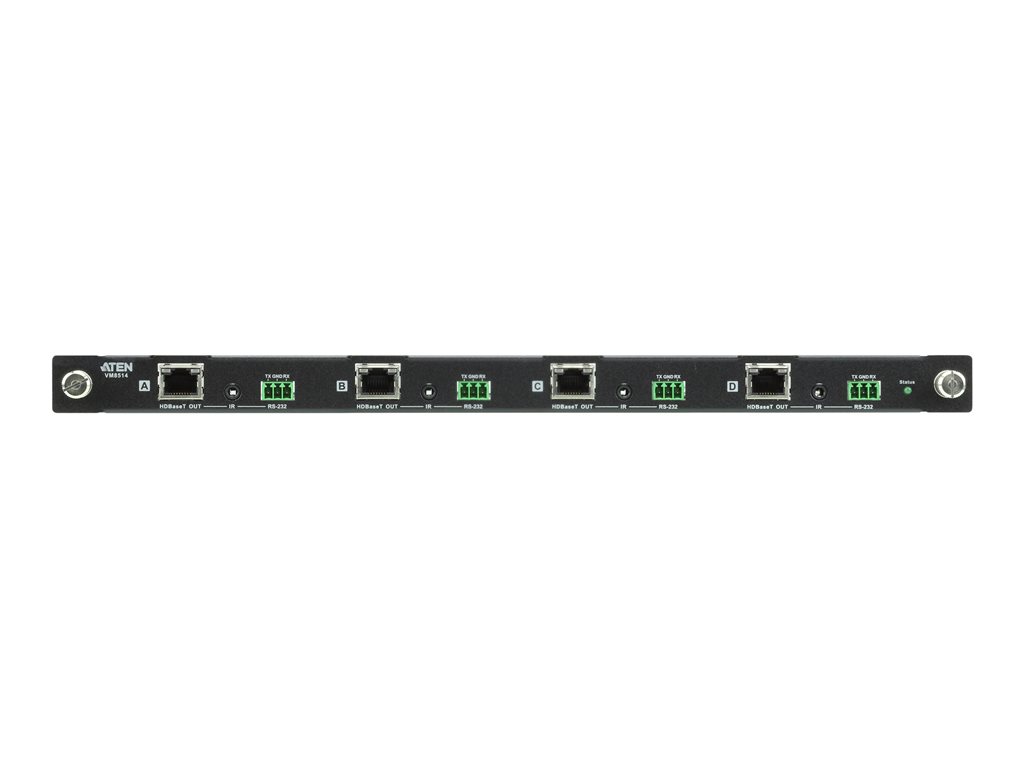

| Interfaces | 4 x HDBaseT - RJ-45 ¦ 4 x RS-232 - 3 pin terminal block ¦ 4 x IrDA - mini-phone stereo 3.5 mm |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | HDBaseT |
| Data Transfer Rate | 10.2 Gbps |
| Features | HDCP compliant, metal housing |
| Power | |
| Power Consumption Operational | 12.2 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Dimensions & Weight | |
| Width | 13.9 in |
| Depth | 9.3 in |
| Height | 0.9 in |
| Weight | 21.87 oz |
| Compatibility Information | |
| Designed For | ATEN VanCryst VM1600A, VM3200, VM3250 |
