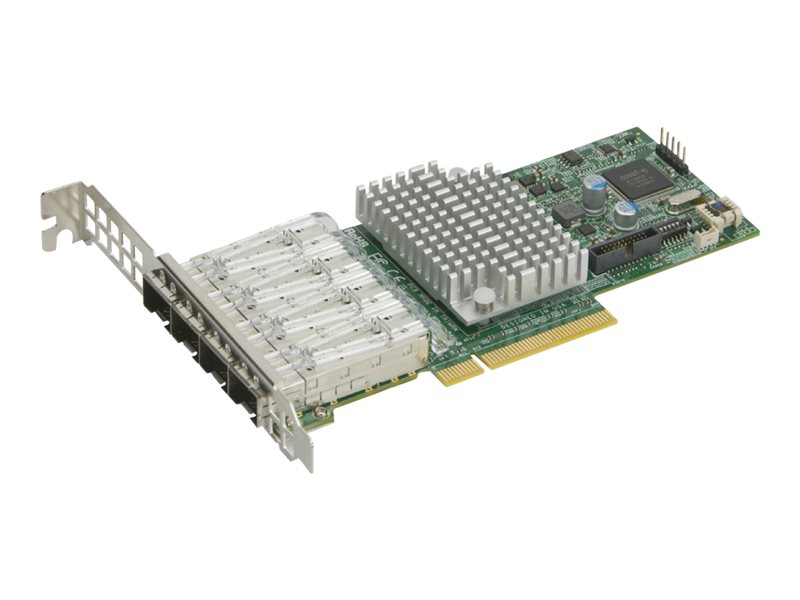

Network adapter - PCIe 3.0 x8 low profile - 10 Gigabit SFP+ x 4
| Main Specifications | |
|---|---|
| Product Description | Supermicro AOC-STG-I4S - network adapter - PCIe 3.0 x8 - 10 Gigabit SFP+ x 4 |
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 3.0 x8 |
| PCI Specification Revision | PCIe 3.0 |
| Ports | 10 Gigabit SFP+ x 4 |
| Dimensions (WxDxH) | 5.9 in x 2.7 in |
| Data Link Protocol | 10GbE |
| Data Transfer Rate | 10 Gbps |
| Capacity | Jumbo frame size: 9.5 KB ¦ Tagged VLANs: 4096 |
| Network / Transport Protocol | TCP/IP, UDP/IP, iSCSI |
| Processor | 1 x Intel XL710-AM1 |
| Compliant Standards | IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 1588-2008 |
| System Requirements | Microsoft Windows Server 2008 R2 (32/64-bits), FreeBSD 9, Microsoft Windows Server 2012 (32/64-bits), VMware ESXi 5.1, SuSE Linux Enterprise Server 11 SP3, Red Hat Enterprise Linux 6.5, VMware ESXi 5.5, FreeBSD 10, Red Hat Enterprise Linux 7, SuSE Linux Enterprise Server 12, Microsoft Windows Server 2012 R2 (32/64 bits) |
| General | |
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 3.0 x8 |
| PCI Specification Revision | PCIe 3.0 |
| Expansion / Connectivity | |
| Interfaces | 4 x 10Gb Ethernet - SFP+ |
| Miscellaneous | |
| Included Accessories | Low-profile bracket, full-height bracket |
| Compliant Standards | RoHS |
| Networking | |
| Ports | 10 Gigabit SFP+ x 4 |
| Connectivity Technology | Wired |
| Data Link Protocol | 10 Gigabit Ethernet |
| Data Transfer Rate | 10 Gbps |
| Capacity | Jumbo frame size: 9.5 KB ¦ Tagged VLANs: 4096 |
| Network / Transport Protocol | TCP/IP, UDP/IP, iSCSI |
| Remote Management Protocol | SNMP, RMON |
| Features | Flow control, load balancing, VLAN support, IPv4 and IPv6 Large Send Offload and Checksum Offload (LSO/TCO), Jumbo Frames support, temperature sensor, VMDq, teaming support, PXE support, LSO, Energy Efficient Ethernet, tagged VLAN, MSI-X, SNMP support, VXLAN, NVGRE, Intel Flow Director |
| Compliant Standards | IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 1588-2008 |
| Power | |
| Power Consumption Operational | 8 watt |
| Software / System Requirements | |
| OS Required | Microsoft Windows Server 2008 R2 (32/64-bits), FreeBSD 9, Microsoft Windows Server 2012 (32/64-bits), VMware ESXi 5.1, SuSE Linux Enterprise Server 11 SP3, Red Hat Enterprise Linux 6.5, VMware ESXi 5.5, FreeBSD 10, Red Hat Enterprise Linux 7, SuSE Linux Enterprise Server 12, Microsoft Windows Server 2012 R2 (32/64 bits) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Processor / Memory | |
| Processor | 1 x Intel XL710-AM1 |
| Dimensions & Weight | |
| Depth | 5.9 in |
| Height | 2.7 in |
